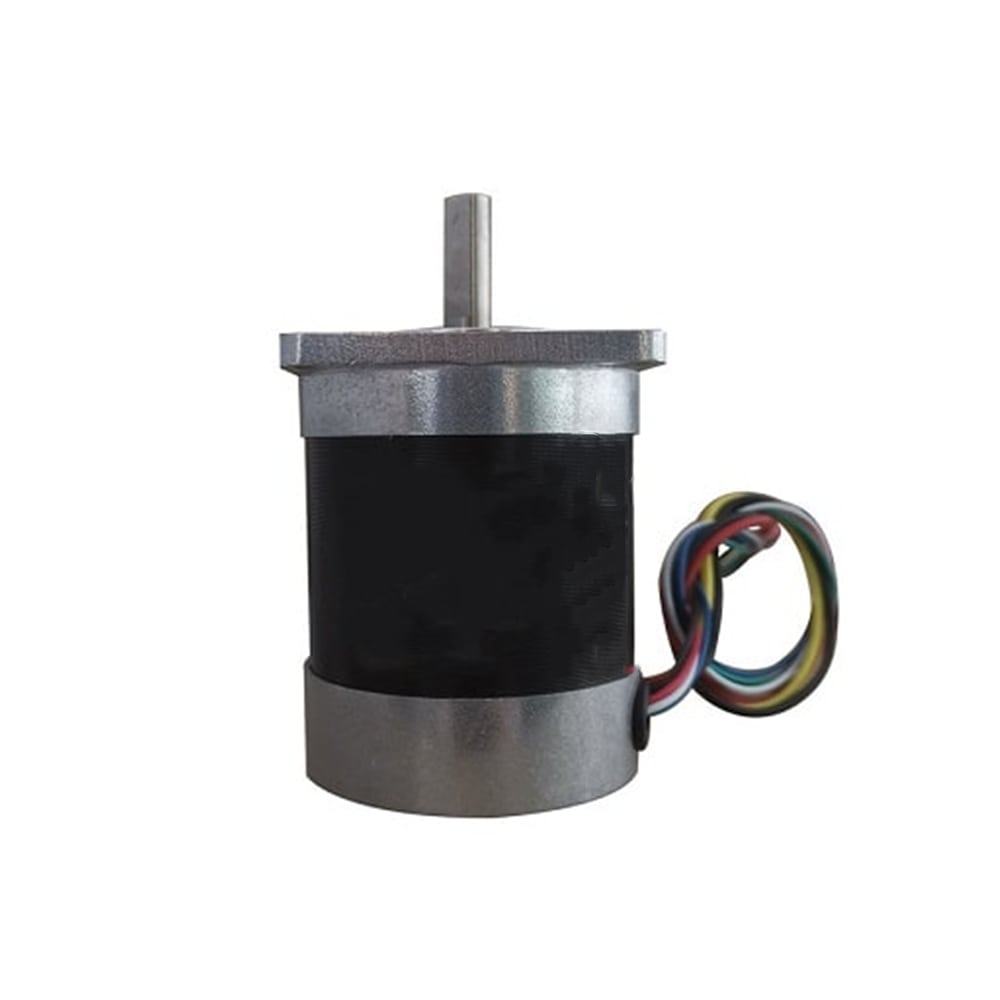

24V 3500RPM 0.37Nm 135W 9.0A 57x57x70mm Brushless DC Motor
- Part Number: 57HS70-2435
- Lead Time: In Stock
- Unit Price: US $55.00
- Sales: 6
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This size 57mm electric motor is a standard 24 voltage brushless DC motor, which generates a high power 135W and a strong torque 0.37Nm at RATED speed 3500RPM. It is suitable for textile machines, robotics, autobikes, cooling fans, pumps and other industrial applications or household appliances. The matched drive is BL2406.
Specifications
- Manufacturer Part Number: 57HS70-2435
- Rated Voltage: 24 VDC
- Rated Current: 9.0 A
- Rated Power: 135 W
- No-loaded Speed: 4500 RPM
- Rated Speed: 3500 RPM
- Rated Torque: 0.37 Nm
- Insulation Class: B
- Sensor Type: Hall

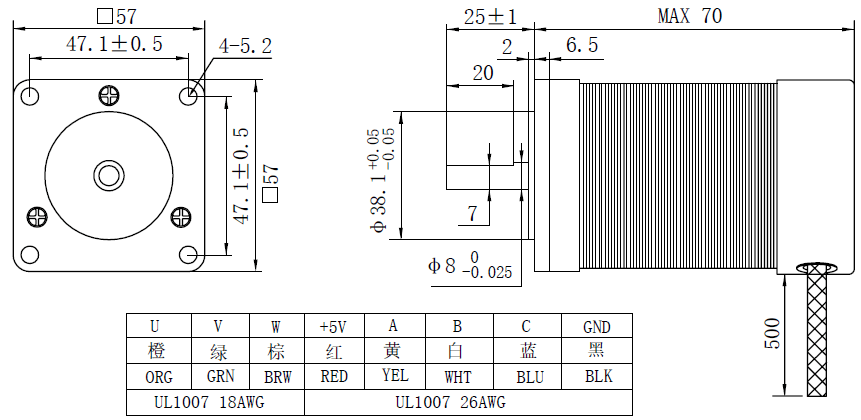

- Frame Size: 57x57 mm
- Motor Length: 70 mm
- Shaft Diameter: Φ8 mm
- Shaft Length: 26 mm
- D-cut Length: 20 mm
- Weight: 0.7 kg
Connection
| U | V | W | +5V | HA | HB | HC | GND |
| ORG | GRN | BRN | RED | YEL | WHT | BLU | BLK |
| 18AWG | 26AWG | ||||||
Contact Frankhumotor for Datasheet, 3D Step. File, Torque Curve
| Product Details | |
| Model Number | 57HS70-2435 |
| Product Type | Brushless |
| Lead Time | in stock |
| Insulation Class | B |
| Protection Class | IP20 |
| Electrical Specification | |
| Rated Torque(N·m) | 0.37 |
| Rated Power(W) | 134 |
| Rated Current(A) | 9.0 |
| Rated Voltage(VDC) | 24 |
| Rated Speed(RPM) | 4500 |
| No-load Speed(RPM) | 3500 |
| Sensor Type | Hall |
| Physical Specification | |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 70 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 26 |
| Weight(KG) | 0.7 |
