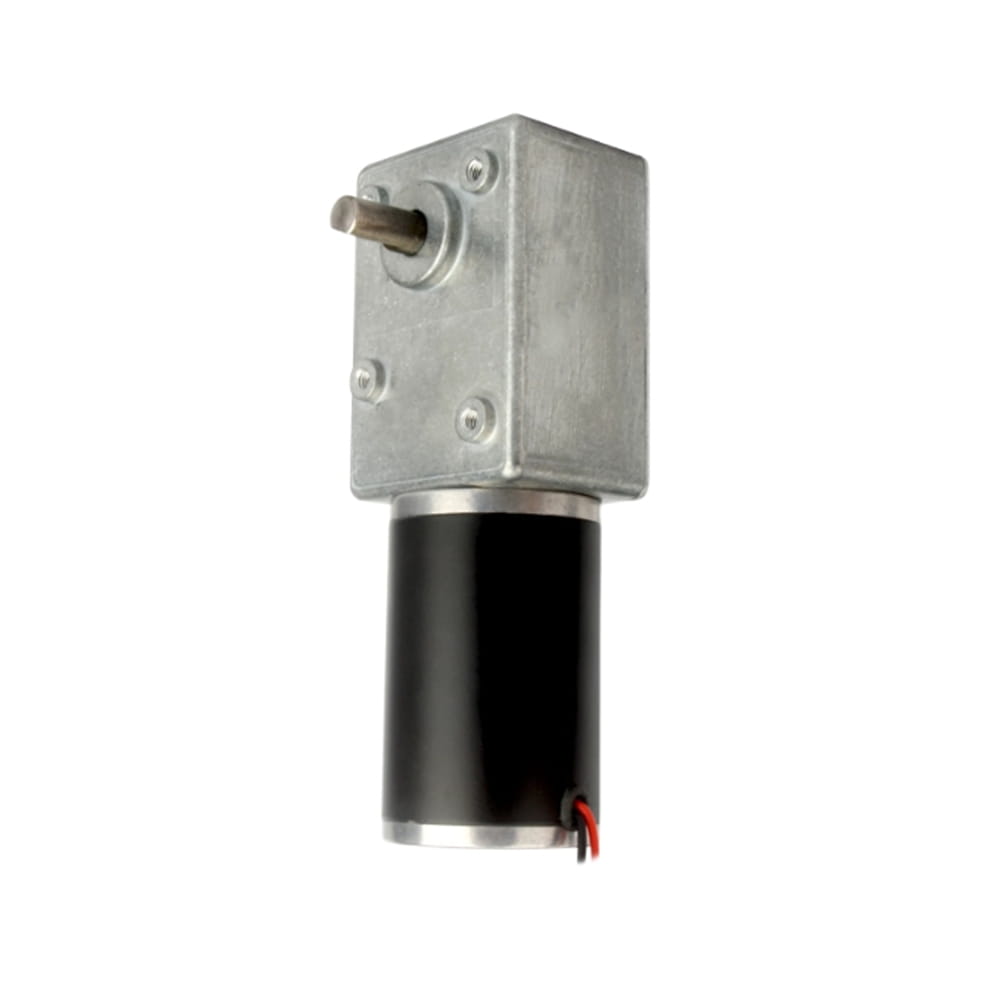

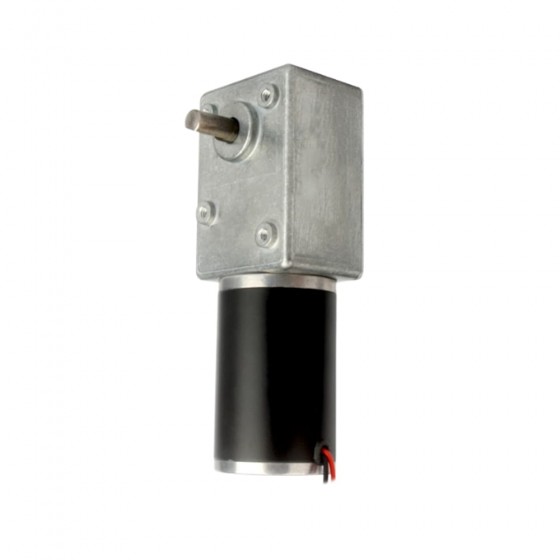

24V 30RPM 8.0Nm Φ50mm Geared DC Motor Worm Reduction Gearbox
- Part Number: 50WS78-24V-WGS30
- Lead Time: In Stock
- Unit Price: US $49.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2
This compact 50WS78-WG series dc geared motor is a rated voltage 24V diameter Φ50mm round brushed intagrated with one 5882 worm gearbox, which can support rotation CW/CCW and self-locked function. It leads to speed range of 3RPM to 2000RPM and output torque upto 25.0Nm. It is widely used in household appliances, office automation, bank equipment, medical devices, intelligent robots, etc.
Specification
- Manufacturer Part Number: 50WS78-24V-WGS30
- Rated Voltage: 24VDC
- Rated Current: 2.35A
- Rated Torque: 8.0Nm
- No-load Speed: 30RPM
- Rated Speed: 21RPM
- Insulation Class: B
- Body Length: 160.5mm
- Shaft Diameter: Φ10mm
- Shaft Length: 20mm
- Dc-ut Length: 15mm
- Weight: 1.1KG
Contact Us
| Product Details | |
| Model Number | 50WS78-24V-WGS30 |
| Product Type | Brushed |
| Lead Time | in stock |
| Electrical Specification | |
| Rated Torque(Nm) | 8.0 |
| Rated Voltage(VDC) | 24 |
| Rated Speed(RPM) | 21 |
| No-load Speed(RPM) | 30 |
| Physical Specification | |
| Frame Size(mm) | Φ50 |
| Body Length(mm) | 160.5 |
| Shaft Diameter(mm) | 10 |
| Shaft Length(mm) | 20 |
| Weight(KG) | 1.1 |
