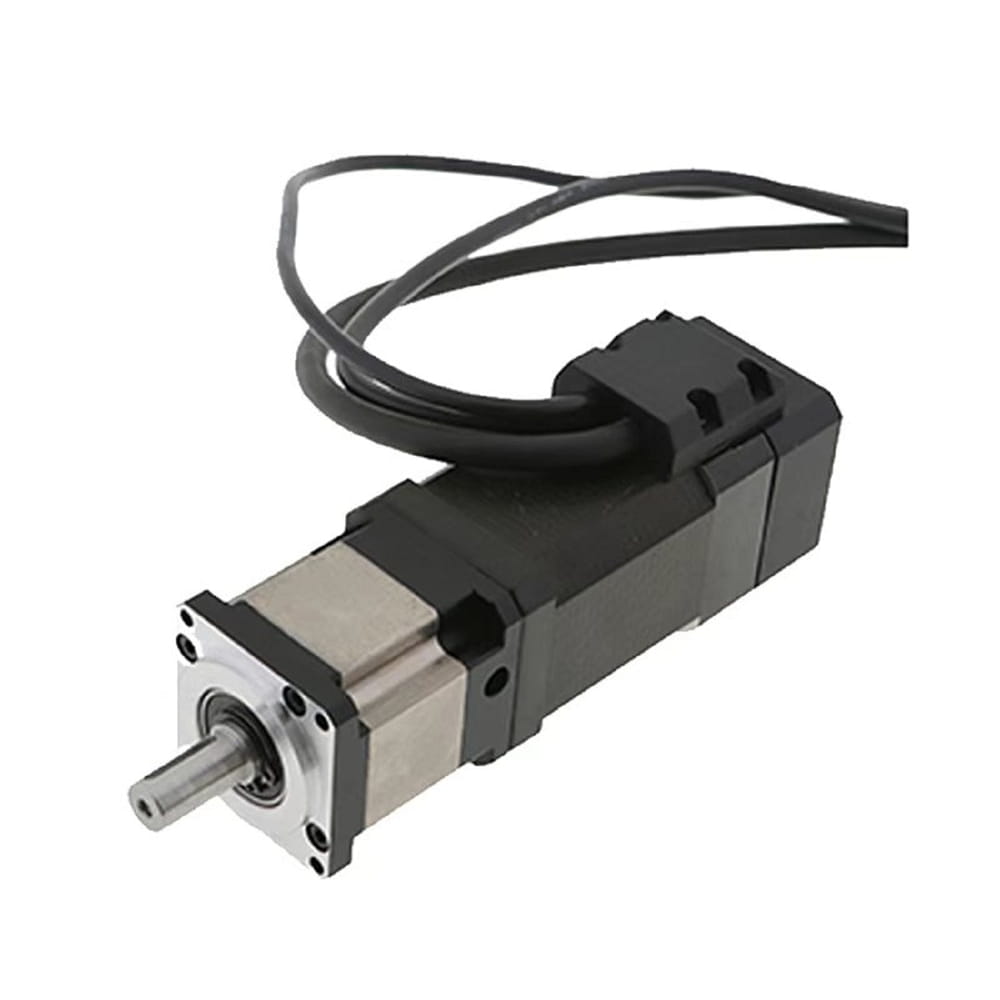

24V 30RPM 10Nm 60W 42mm Geared Servo DC Motor Brushless Reduction Ratio 100:1 Planetary Gearbox
- Part Number: 42BLS70-2430E-FGS100
- Lead Time: In Stock
- Unit Price: $110.00
- Sales: 3
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2
This compact 42BLS70-2430E-FGS series dc geared servo motor is a 24V diameter 42mm brushless intagrated with a size 42mm high-precision planetary gearbox & 1000PPR optical incremental encoder. It leads to speed range of 2RPM to 2000RPM and rated torque upto 12Nm. Because of the brushless design, this micro geared motor has higher efficiency, higher power-to-weight ratio, faster response time, longer lifespan, more merits compared to general dc motors. It is widely used in household appliances, office automation, bank equipment, medical devices, intelligent robots, etc.
Specification
- Part Number: 42BLS70-2430E-FGS100
- Rated Voltage: 24VDC
- Rated Power: 60W
- Reduction Ratio: 100:1
- Rated Torque: 10Nm
- No-load Speed: 40RPM
- Rated Speed: 30RPM
- Rated Current: 3.5A
- Insulation Class: B
- Sensor Type: Hall
- EncoderType: Incremenal
- Encoder Resolution: 1000PPR
- Body Length: 136mm
- Shaft Diameter: Φ10mm
- Shaft Length: 25mm
- Keyway Length: 16mm
- Weight: 1.1KG
Contact Us
| Encoder Specification | |
| Encoder Resolution(CPR) | 1000 |
| Encoder Type | Incremental |
| Brush/Brushless Specification | |
| Motor Type | Brushless |
| Rated Voltage(VDC) | 24 |
| Rated Power(W) | 60 |
| Rated Torque(Nm) | 10 |
| Rated Speed(RPM) | 30 |
| No-load Speed(RPM) | 40 |
| Sensor Type | Hall |
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 136 |
| Shaft Diameter(mm) | 10 |
| Shaft Length(mm) | 25 |
| Weight(KG) | 1.1 |
L=46mm
