24V 3000RPM 0.63 N·m 200W 9.8A 57x57x114mm Round Brushless DC Motor
- Brand: Frankhumotor
- Part Number: 57BLDC114-2430
- Lead Time: In Stock
- Unit Price: US $55.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This round standard 57 mm, 24 V brushless DC motor features a 114 mm body length and delivers a high output power of 200 W, a strong output torque of 0.63 N·m, and a rated speed of 3,000 RPM.
Frankhumotor's high-performance, customizable 57 DC brushless motor features a small size, Hall sensors, 3000 RPM, and smooth operation, making it ideal for a wide range of applications including 3D printers, robots, office copiers, medical CT equipment, CNC lathes, and SMT workshop equipment.
General Specifications
- Winding Type: Star
- Hall Angle: 120 Degrees
- Ambient Temperature: -25°C to +50°C
- Insulation Resistance: 100MΩmin.@500VDC
- Insulation Class: Class B
- Dielectric Strength: 500VAC for One Minute
- Protection Class: IP30
200W Round DC Brushless Motor Specifications
- Manufacturer Part Number: 57BLDC114-2430
- Phase Number: 3
- Pole Number: 8
- Rated Voltage: 24 V
- Rated Current: 9.8 A
- Rated Power: 200 W
- No-load Speed: 4000 RPM
- Rated Speed: 3000 RPM
- Rated Torque: 0.63 N·m
- Back EMF: 3.7 V/kRPM
- Sensor Type: Hall
- Frame Size: Φ57 mm
- Motor Length: 114 mm
- Shaft Diameter: Φ8 mm
- Shaft Length: 21 mm
- Weight: 1.35 kg
Connection
| MA | MB | MC | HA | HB | HC | +5V | GND |
|
Thick Yellow |
Thick Green |
Thick Blue |
Thin Yellow |
Thin Green |
Thin Blue |
Thin Red |
Thin Black |
Contact Frankhumotor for Datasheet, 3D Step. File, Torque Curve
| Product Details | |
| Model Number | 57BLDC114-2430 |
| Product Type | Brushless |
| Lead Time | in stock |
| Insulation Class | B |
| Protection Class | IP30 |
| Electrical Specification | |
| Rated Torque(N·m) | 0.63 |
| Rated Power(W) | 200 |
| Rated Current(A) | 9.8 |
| Rated Voltage(VDC) | 24 |
| Rated Speed(RPM) | 3000 |
| No-load Speed(RPM) | 4000 |
| Sensor Type | Hall |
| Physical Specification | |
| Frame Size(mm) | Φ57 |
| Body Length(mm) | 114 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 21 |
| Weight(KG) | 1.35 |

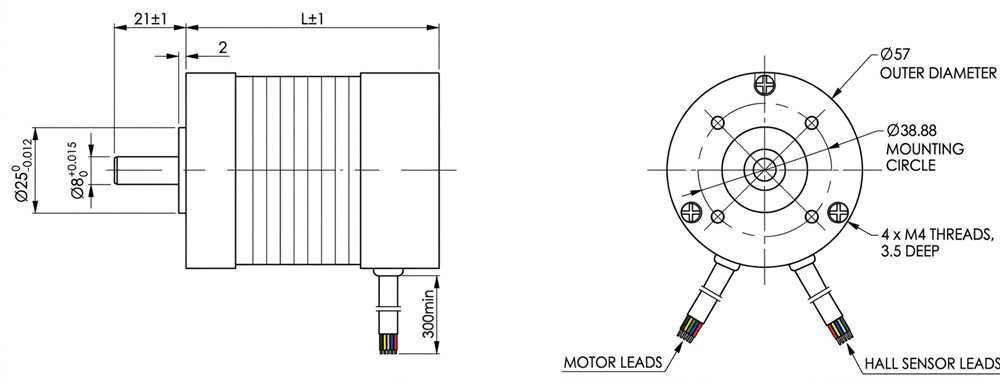

L=114mm
- Brake
- Cable & Connector
- Encoder
- Gearbox
- Insulation Class
- Output Shaft
- Waterproof Level
