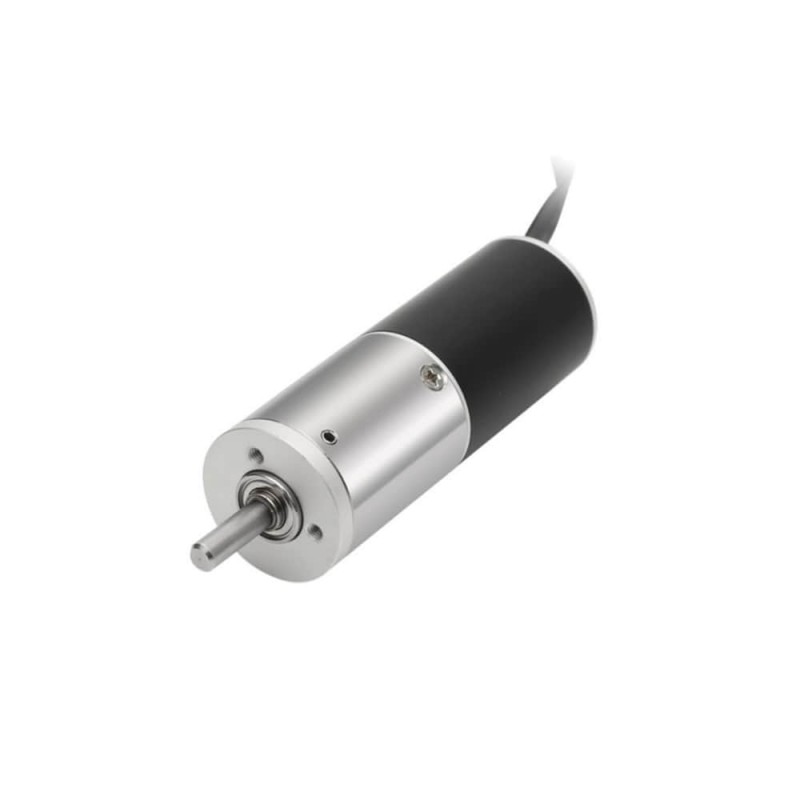

24V 29RPM 1.2Nm Φ22mm Coreless Geared Brushless DC Motor 410:1 Planetary Gearbox
- Part Number: 22HS40-24V-PG410
- Lead Time: One Week
- Unit Price: US $125.00
- Sales: 2
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2
This small electric geared motor combines a size 22 mm, 24 V coreless brushless DC motor with a high-quality, precision-machined planetary gearbox. With a 410:1 reduction ratio, it delivers a no-load speed of 29 RPM and an output torque of 1.2 N·m. It supports variable-speed control and reversible (CW/CCW) operation. Compared with ordinary brushless DC motors, the coreless motor offers higher efficiency, a higher power-to-weight ratio, faster response, longer service life, and higher torque output. Typical applications include robotics, medical devices, aerospace, and more.
Specification
- Manufacturer Part Number: 22HS40-24V-PG410
- Rated Voltage: 24 VDC
- Reduction Ratio: 410:1
- Rated Torque: 1.2 Nm
- No-load Speed: 29 RPM
- Rated Speed: 27 RPM
- Rated Current: 0.39 A
- Insulation Class: B
- Sensor Type: Hall
- Body Length: 74.9 mm
- Shaft Diameter: Φ4 mm
- Shaft Length: 14.5 mm
- D-cut Length: 10 mm
- Weight: 0.15 kg
Connection
| P1 | P2 | P3 | P4 | P5 | P6 | P7 | P8 |
| MA | MB | MC | HA | HB | HC | GND | +5V |
| BLU | YEL | WHT | BLU | YEL | WHT | BLK | RED |
Contact Frankhumotor for Datasheet, 3D Step. File, Torque Curve
| Product Details | |
| Model Number | 22HS40-24V-PG410 |
| Product Type | Brushless |
| Lead Time | One Week |
| Electrical Specification | |
| Rated Torque(N·m) | 1.2 |
| Rated Voltage(VDC) | 24 |
| Rated Speed(RPM) | 27 |
| No-load Speed(RPM) | 29 |
| Sensor Type | Hall |
| Physical Specification | |
| Frame Size(mm) | Φ22 |
| Body Length(mm) | 74.9 |
| Shaft Diameter(mm) | 4 |
| Shaft Length(mm) | 14.5 |
| Weight(KG) | 0.15 |
L=34.9mm
