24V 228RPM 0.42Nm Φ22mm Coreless Geared Brushless DC Motor 52:1 Planetary Gearbox
- Part Number: 22HS40-24V-PG52
- Lead Time: One Week
- Unit Price: US $125.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2
This micro 22HS40-24V-PG series dc geared motor is a 24V diameter Φ22mm round coreless brushless intagrated with a size 22mm round planetary gearbox. It leads to speed range of 3RPM to 3000RPM and holding torque upto 1.2Nm. Because of the coreless brushless design, this micro geared motor has higher efficiency, higher power-to-weight ratio, faster response time, longer lifespan, more merits compared to general dc motors. It is widely used in household appliances, office automation, bank equipment, medical devices, intelligent robots, etc.
Specification
- Manufacturer Part Number: 22HS40-24V-PG52
- Rated Voltage: 24VDC
- Reduction Ratio: 52:1
- Rated Torque: 0.42Nm
- No-load Speed: 228RPM
- Rated Speed: 183RPM
- Rated Current: 0.72A
- Insulation Class: B
- Sensor Type: Hall
- Body Length: 69.8mm
- Shaft Diameter: Φ4mm
- Shaft Length: 14.5mm
- D-cut Length: 10mm
- Weight: 0.14KG
Contact Us
| Product Details | |
| Model Number | 22HS40-24V-PG52 |
| Product Type | Brushless |
| Lead Time | One Week |
| Electrical Specification | |
| Rated Torque(Nm) | 0.42 |
| Rated Voltage(VDC) | 24 |
| Rated Speed(RPM) | 183 |
| No-load Speed(RPM) | 228 |
| Sensor Type | Hall |
| Physical Specification | |
| Frame Size(mm) | Φ22 |
| Body Length(mm) | 69.8 |
| Shaft Diameter(mm) | 4 |
| Shaft Length(mm) | 14.5 |
| Weight(KG) | 0.14 |

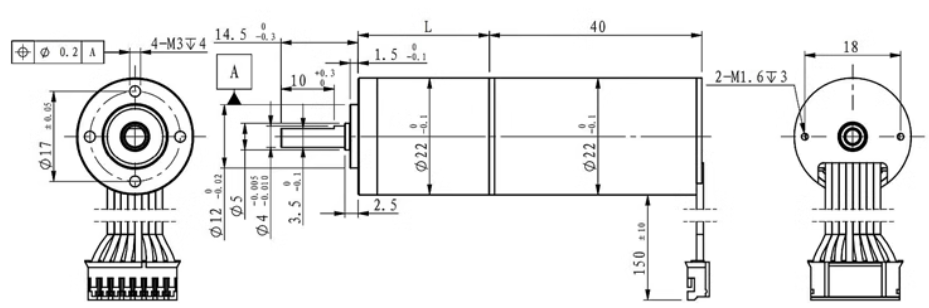

L=29.8mm
