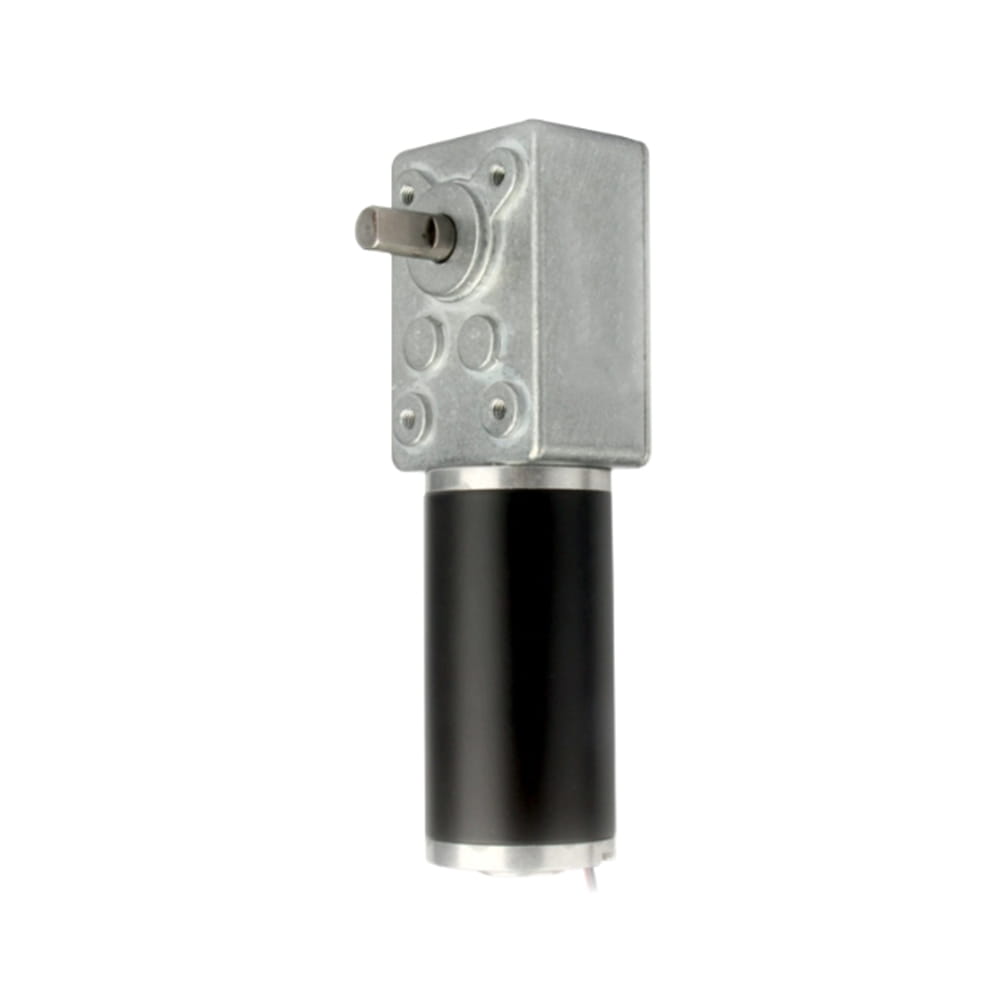

24V 20RPM 12.0Nm Φ42mm Geared DC Motor Worm Reduction Gearbox
- Part Number: 42WS87-24V-WGS20
- Lead Time: In Stock
- Unit Price: $45.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2
This compact 42WS87-WG series dc geared motor is a rated voltage 24V diameter Φ42mm round brushed intagrated with one 5073 worm gearbox, which can support rotation CW/CCW and self-locked function. It leads to speed range of 3RPM to 2000RPM and output torque upto 25.0Nm. It is widely used in household appliances, office automation, bank equipment, medical devices, intelligent robots, etc.
Specification
- Part Number: 42WS87-24V-WGS20
- Rated Voltage: 24VDC
- Rated Current: 2.83A
- Rated Torque: 12.0Nm
- No-load Speed: 20RPM
- Rated Speed: 13RPM
- Insulation Class: B
- Body Length: 160.5mm
- Shaft Diameter: Φ10mm
- Shaft Length: 20mm
- Dc-ut Length: 15mm
- Weight: 0.85KG
Contact Us
| Brush/Brushless Specification | |
| Motor Type | Brushed |
| Rated Voltage(VDC) | 24 |
| Rated Torque(Nm) | 12.0 |
| Rated Speed(RPM) | 13 |
| No-load Speed(RPM) | 20 |
| Frame Size(mm) | Φ42 |
| Body Length(mm) | 160.5 |
| Shaft Diameter(mm) | 10 |
| Shaft Length(mm) | 20 |
| Weight(KG) | 0.85 |
