24V 133RPM 3.7Nm 50W 42mm Geared Brushless DC Motor Ratio 30:1 Planetary Gearbox
- Part Number: 42BLS61-24V-KGS30
- Lead Time: In Stock
- Unit Price: US $75.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2
This compact 42BLS61-24V-KGS series dc geared motor is a 24V frame size 42mm square brushless intagrated with a size 42mm high-precision planetary gearbox. It leads to speed range of 10RPM to 2000RPM and holding torque upto 20Nm. Because of the brushless design, this micro geared motor has higher efficiency, higher power-to-weight ratio, faster response time, longer lifespan, more merits compared to general dc motors. It is widely used in household appliances, office automation, bank equipment, medical devices, intelligent robots, etc.
Specification
- Manufacturer Part Number: 42BLS61-24V-KGS30
- Rated Voltage: 24VDC
- Rated Power: 50W
- Reduction Ratio: 30:1
- Rated Torque: 3.7Nm
- No-load Speed: 166RPM
- Rated Speed: 133RPM
- Rated Current: 4.0A
- Insulation Class: B
- Sensor Type: Hall
- Body Length: 112mm
- Shaft Diameter: Φ8mm
- Shaft Length: 21.5mm
- Keyway Length: 14mm
- Weight: 0.95KG
Contact Us
| Product Details | |
| Model Number | 42BLS61-24V-KGS30 |
| Product Type | Brushless |
| Lead Time | in stock |
| Electrical Specification | |
| Rated Torque(Nm) | 3.7 |
| Rated Power(W) | 50 |
| Rated Voltage(VDC) | 24 |
| Rated Speed(RPM) | 133 |
| No-load Speed(RPM) | 166 |
| Sensor Type | Hall |
| Physical Specification | |
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 112 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 21.5 |
| Weight(KG) | 0.95 |

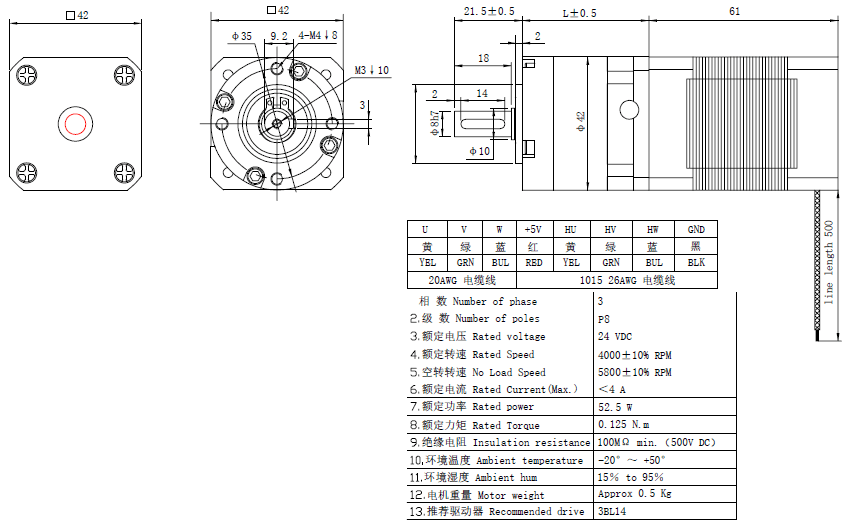

L=51mm
