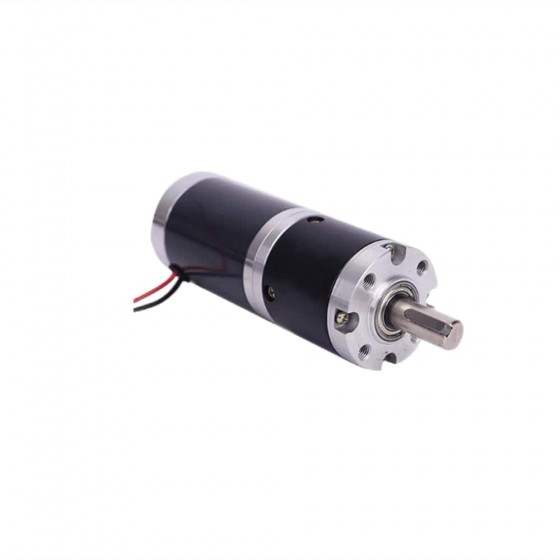

24V 11RPM 8.5Nm Φ50mm Geared DC Motor Reduction Planetary Gearbox
- Part Number: 50WS78-24V-S11
- Lead Time: In Stock
- Unit Price: US $80.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2
This big 50WS78-24V-S series dc geared motor is a rated voltage 24V diameter Φ50mm round brushed intagrated with a size Φ50mm round planetary gearbox. It leads to speed range of 3RPM to 2000RPM and holding torque upto 10Nm. It is widely used in household appliances, office automation, bank equipment, medical devices, intelligent robots, etc.
Specification
- Manufacturer Part Number: 50WS78-24V-S11
- Rated Voltage: 24VDC
- Rated Power: 60W
- Rated Torque: 8.5Nm
- No-load Speed: 11RPM
- Rated Speed: 8RPM
- Rated Current: 2.5A
- Insulation Class: B
- Body Length: 163mm
- Shaft Diameter: Φ12mm
- Shaft Length: 30.5mm
- Keyway Length: 21mm
- Weight: 1.6KG
Contact Us
| Product Details | |
| Model Number | 50WS78-24V-S11 |
| Product Type | Brushed |
| Lead Time | in stock |
| Electrical Specification | |
| Rated Torque(Nm) | 8.5 |
| Rated Power(W) | 60 |
| Rated Voltage(VDC) | 24 |
| Rated Speed(RPM) | 8 |
| No-load Speed(RPM) | 11 |
| Physical Specification | |
| Frame Size(mm) | Φ50 |
| Body Length(mm) | 163 |
| Shaft Diameter(mm) | 12 |
| Shaft Length(mm) | 30.5 |
| Weight(KG) | 1.6 |
L=85mm
