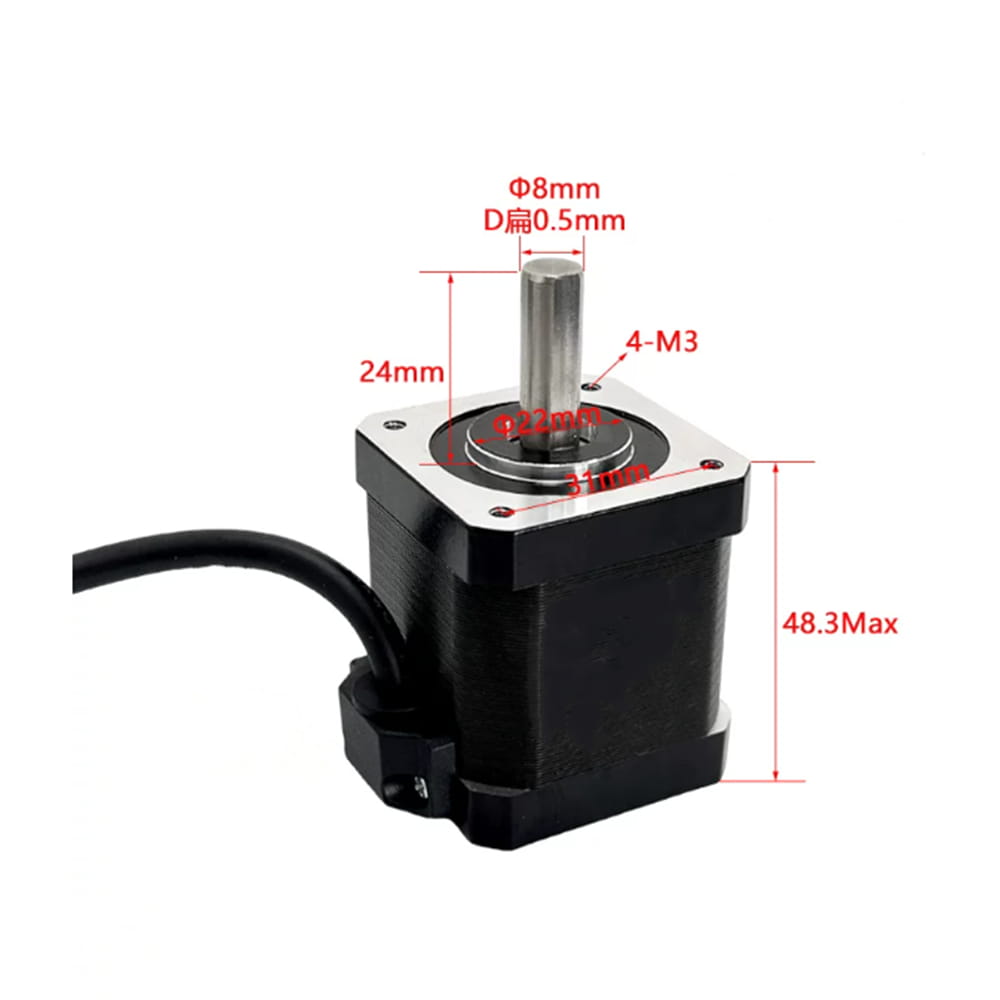

2 Phase NEMA 17 Stepper Motor Bipolar 1.8 deg 1.3 A 0.5 N-m 42x42x48mm Φ8mm Shaft
- Part Number: 42HS4813A4D8
- Lead Time: In Stock
- Unit Price: US $16.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2
This strong electric motor is a 2 phase NEMA 17 bipolar stepper motor with 48mm body length. It has 1.8 degree step angle (200 steps per revolution), 4 wires connection, each phase drawing 1.3A with holding torque 0.5Nm. The 2 phase stepper drive M332C can be used for controlling this motor. It is widely used for small CNC machines, laser engraving machines, and high-precision 3D printers, robotics.
Electrical Specification
- Manufacturer Part Number: 42HS4813A4D8
- Step Angle: 1.8 deg
- Holding Torque: 0.5 N-m
- Rated Current/phase: 1.3 A
- Phase Resistance: 3.0 ohms
- Rotor Inertia: 80 g·cm²
- Driving Voltage: 12-24 VDC

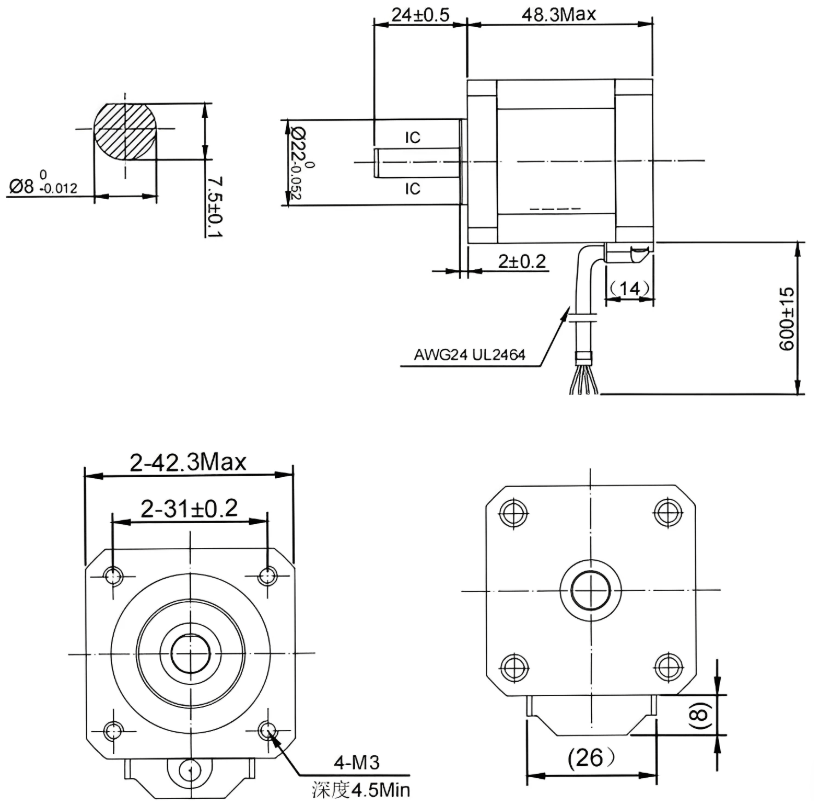

Physical Specification
- Frame Size: 42 x 42 mm
- Body Length: 48 mm
- Shaft Diameter: Φ8 mm
- Shaft Length: 24 mm
- D-cut Length: 20 mm
- Number of Leads: 4
- Lead Length: 600 mm
- Weight: 0.4 kg
Connection
| A+ | A- | B+ | B- |
| Black | Green | Red | Blue |
Contact Frankhumotor
| Product Details | |
| Model Number | 42HS4813A4D8 |
| Product Type | Hybrid Stepper |
| Lead Time | in stock |
| Stepper Electrical Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.5 |
| Rated Current(A) | 1.3 |
| Driving Voltage(VDC) | 12-24 |
| Insulation Class | B |
| Stepper Physical Specification | |
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 48 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 24 |
| No. of Leads | 4 |
| Lead Length(mm) | 600 |
| Weight(KG) | 0.4 |
