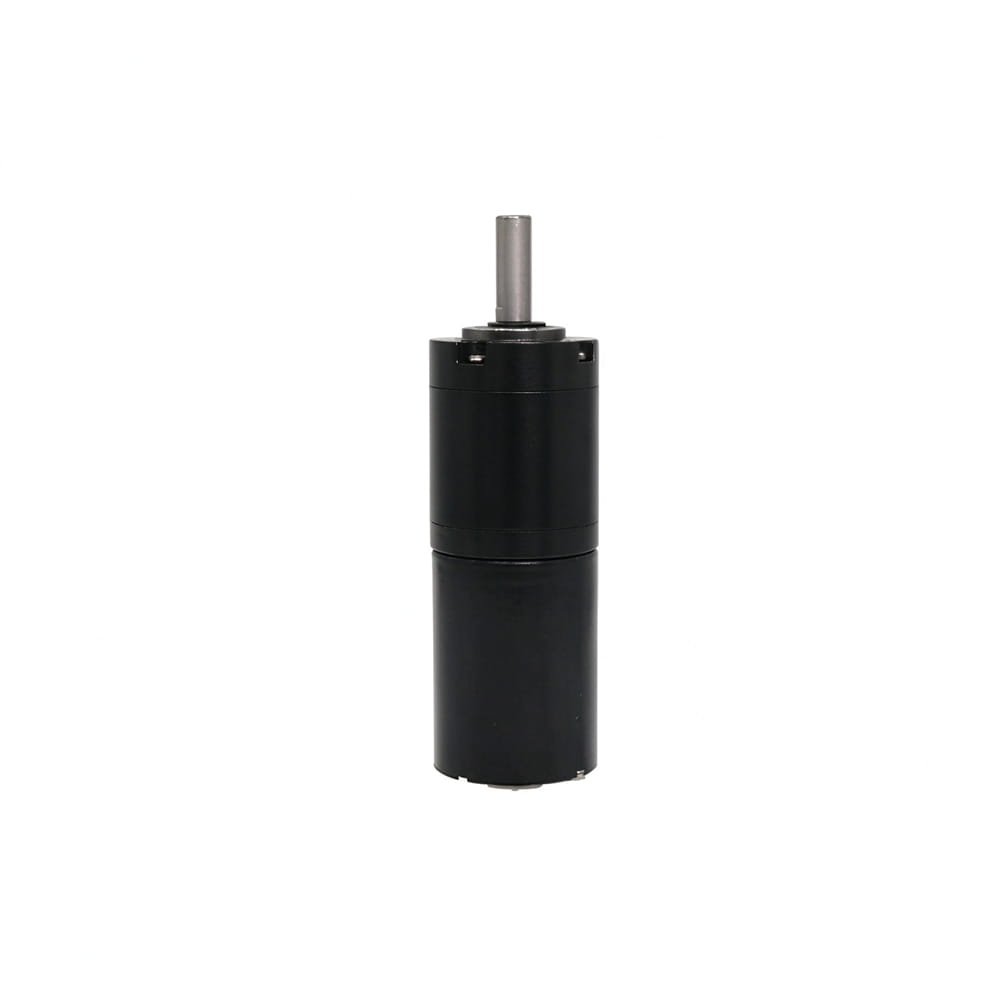

12V/24V BLDC2838 Brushless DC Planetary Gear Motor with Built-in Hall Drive 10-2000 RPM 3.0 N-m
- Brand: Frankhumotor
- Part Number: BLDC2838-12V-PG4
- Lead Time: In Stock
- Unit Price: US $49.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2
The BLDC2838 series 12 V or 24V geared brushless DC motor is equipped with a high-quality planetary gearbox, providing rated speeds from 10 RPM to 2000 RPM and output torque up to 3.0 N·m. Its 5-wire connection and built-in Hall sensor board enable direct electrical drive, making this compact geared motor easy to integrate. It is widely used in household appliances, office automation, banking equipment, medical devices, intelligent robots, and other applications.
12V DC 0.8 A BLDC2838 BLDC Drive Geared Motor Parameters
- Manufacturer Part Number: BLDC2838-12V-PG4
- Rated Voltage: 12 VDC
- Rated Current: 0.8 A
- Rated Power: 9.6 W
- Gear Ratio: 4:1
- Rated Torque: 0.02 N-m
- No-load Speed: 2000 RPM
- Rated Speed: 1625 RPM
- Insulation Class: B
- Sensor Type: Hall

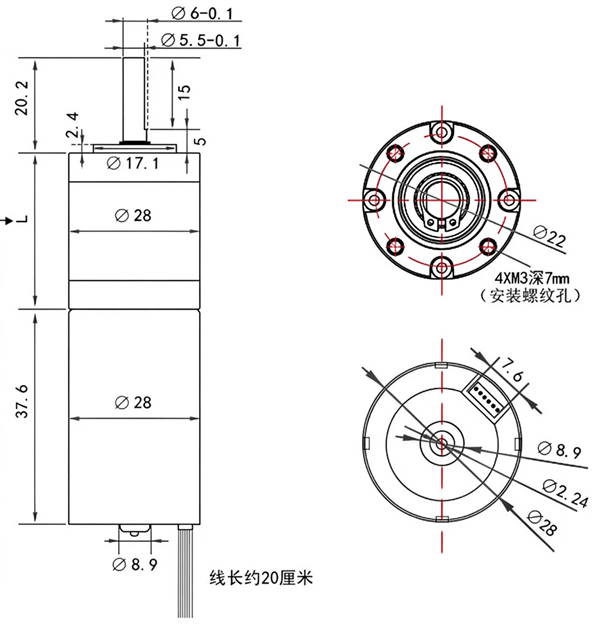

- Motor Length: 37.6 mm
- Gearbox Length: 23 mm
- Shaft Diameter: Φ6 mm
- Shaft Length: 20.2 mm
- D-cut Length: 15 mm
- Weight: 0.3 kg
| Gear Ratio | 4:1 | 5:1 | 16:1 | 20:1 | 25:1 | 64:1 | 100:1 | 125:1 | 151:1 | 256:1 | 320:1 | 400:1 | 500:1 | 625:1 |
| No-load Speed(RPM) | 2000 | 1600 | 500 | 400 | 320 | 125 | 80 | 64 | 53 | 31 | 25 | 20 | 16 | 13 |
| Rated Speed(RPM) | 1650 | 1300 | 400 | 320 | 255 | 100 | 64 | 52 | 43 | 25 | 20 | 16 | 13 | 10 |
| Rated Torque(Nm) | 0.02 | 0.03 | 0.09 | 0.11 | 0.15 | 0.35 | 0.45 | 0.5 | 0.7 | 1.2 | 1.5 | 1.9 | 2.4 | 3.0 |
| Gearbox Length(mm) | 23 | 23 | 29 | 29 | 29 | 34.5 | 34.5 | 34.5 | 34.5 | 40 | 40 | 40 | 40 | 40 |
24V DC 0.4 A BLDC2838 BLDC Drive Geared Motor Parameters
- Manufacturer Part Number: BLDC2838-24V-PG4
- Rated Voltage: 24 VDC
- Rated Current: 0.4 A
- Rated Power: 9.6 W
- Gear Ratio: 4:1
- Rated Torque: 0.02 N-m
- No-load Speed: 2000 RPM
- Rated Speed: 1625 RPM
- Insulation Class: B
- Sensor Type: Hall
- Motor Length: 37.6 mm
- Gearbox Length: 23 mm
- Shaft Diameter: Φ6 mm
- Shaft Length: 20.2 mm
- D-cut Length: 15 mm
- Weight: 0.3 kg
| Gear Ratio | 4:1 | 5:1 | 16:1 | 20:1 | 25:1 | 64:1 | 100:1 | 125:1 | 151:1 | 256:1 | 320:1 | 400:1 | 500:1 | 625:1 |
| No-load Speed(RPM) | 2000 | 1600 | 500 | 400 | 320 | 125 | 80 | 64 | 53 | 31 | 25 | 20 | 16 | 13 |
| Rated Speed(RPM) | 1650 | 1300 | 400 | 320 | 255 | 100 | 64 | 52 | 43 | 25 | 20 | 16 | 13 | 10 |
| Rated Torque(Nm) | 0.02 | 0.03 | 0.09 | 0.11 | 0.15 | 0.35 | 0.45 | 0.5 | 0.7 | 1.2 | 1.5 | 1.9 | 2.4 | 3.0 |
| Gearbox Length(mm) | 23 | 23 | 29 | 29 | 29 | 34.5 | 34.5 | 34.5 | 34.5 | 40 | 40 | 40 | 40 | 40 |
Contact Frankhumotor for Datasheet, 3D Step. File, Torque Curve
| Product Details | |
| Model Number | BLDC2838-12V-PG4 |
| Product Type | Brushless |
| Lead Time | in stock |
| Insulation Class | B |
| Protection Class | IP20 |
| Electrical Specification | |
| Rated Torque(N·m) | 0.02 |
| Rated Power(W) | 9.6 |
| Rated Voltage(VDC) | 12 |
| Rated Speed(RPM) | 1625 |
| No-load Speed(RPM) | 2000 |
| Drive Integrated | Yes |
| Sensor Type | Hall |
| Physical Specification | |
| Frame Size(mm) | Φ28 |
| Body Length(mm) | 59.7 |
| Shaft Diameter(mm) | 6 |
| Shaft Length(mm) | 20.2 |
| Weight(KG) | 0.3 |
1. RED Wire: Power 12V/24V
2. BLACK Wire: Power Ground
3. Yellow Wire: FG Signal(9 pulses/circle)
4. WHITE Wire: CW/CCW
5. BLUE Wire: PWM Speed Control(0-5V)
