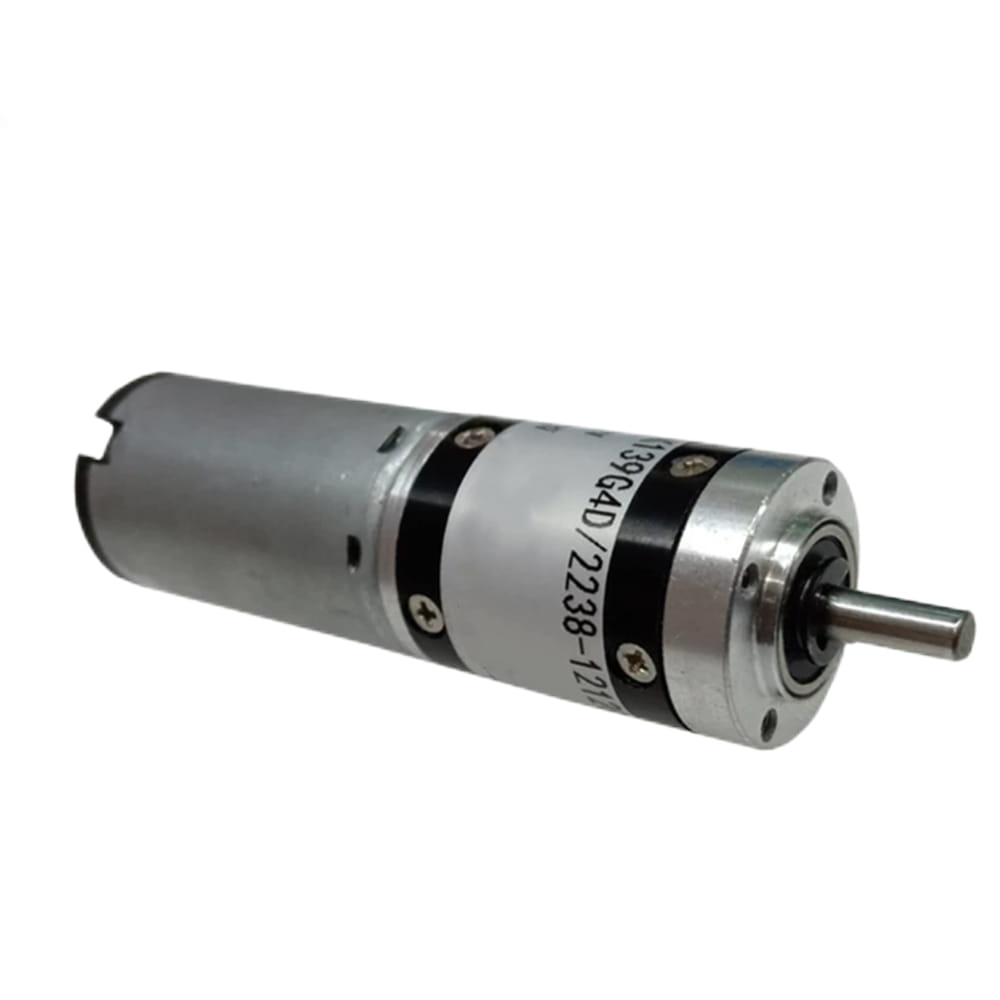

12V 230RPM 0.22Nm Φ22mm Geared DC Motor Reduction Planetary Gearbox
- Part Number: 22BK38-12V-PG51
- Lead Time: In Stock
- Unit Price: US $34.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2
This small 22BK38-12V-PG series dc geared motor is a rated voltage 12V diameter Φ22m round brushed integrated with a size Φ22mm round planetary gearbox. It leads to speed range from 3RPM to 3000RPM and output torque upto 2.0Nm. It is widely used in household appliances, office automation, bank equipment, medical devices, intelligent robots, etc.
Specification
- Manufacturer Part Number: 22BK38-12V-PG51
- Rated Voltage: 12VDC
- Rated Power: 4.0W
- Rated Torque: 0.22Nm
- No-load Speed: 230RPM
- Rated Speed: 190RPM
- Rated Current: 0.4A
- Insulation Class: B
- Body Length: 70.5mm
- Shaft Diameter: Φ4mm
- Shaft Length: 13mm
- D-cut Length: 8mm
- Weight: 0.2KG
Contact Us
| Product Details | |
| Model Number | 22BK38-12V-PG51 |
| Product Type | Brushed |
| Lead Time | in stock |
| Electrical Specification | |
| Rated Torque(Nm) | 0.22 |
| Rated Power(W) | 4.0 |
| Rated Voltage(VDC) | 12 |
| Rated Speed(RPM) | 190 |
| No-load Speed(RPM) | 230 |
| Physical Specification | |
| Frame Size(mm) | Φ22 |
| Body Length(mm) | 70.5 |
| Shaft Diameter(mm) | 4 |
| Shaft Length(mm) | 13 |
| Weight(KG) | 0.2 |
L=32.5mm
