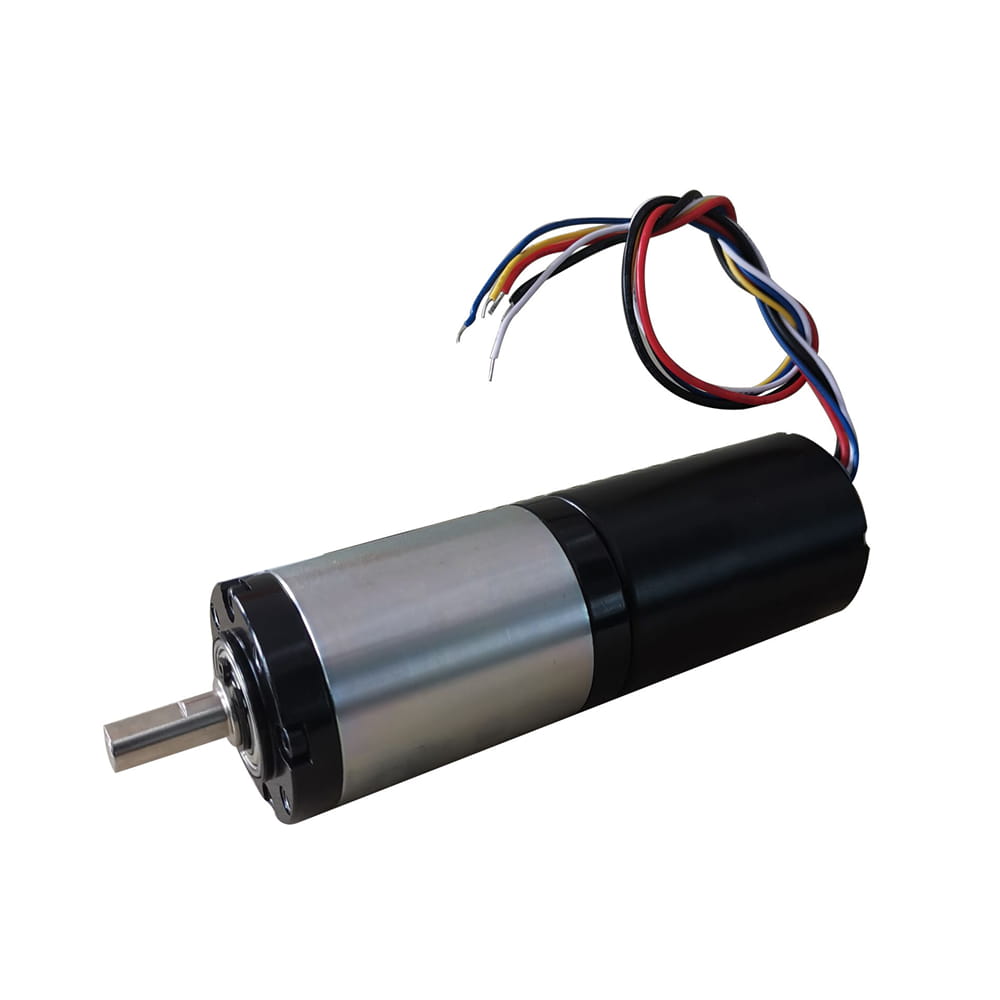

12V 10W Φ42mm Planetary Geared Brushless DC Drive Motor
- Part Number: 42HS60-12V-PG13
- Lead Time: In Stock
- Unit Price: US $65.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2
The 42HS60-12V-PG series geared brushless dc motor is integrated with a high quality planetary gearbox, which leads to rated speed from 3RPM to 2000RPM and output torque upto 6.0Nm. It has 5 wires connection with built-in hall sensor board so this compact geared motor can be directly driven by electricity. It is widely used in household appliances, office automation, bank equipment, medical devices, intelligent robots, etc.
Specification
- Manufacturer Part Number: 42HS60-12V-PG13
- Rated Voltage: 12VDC
- Rated Current: 2.0A
- Rated Power: 10W
- Gear Ratio: 13:1
- Rated Torque: 0.4Nm
- No-load Speed: 300RPM
- Rated Speed: 230RPM
- Insulation Class: B
- Sensor Type: Hall
- Motor Length: 60mm
- Gearbox Length: 43.5mm
- Shaft Diameter: Φ8mm
- Shaft Length: 22mm
- D-cut Length: 12mm
- Weight: 0.8KG
42mm BLDC Drive Motor 12VDC Speeds' Parmeters
| Gear Ratio | 13:1 | 18:1 | 25:1 | 49:1 | 67:1 | 92:1 | 125:1 | 181:1 | 246:1 | 336:1 | 458:1 | 625:1 |
| No-load Speed(RPM) | 300 | 220 | 160 | 80 | 60 | 43 | 32 | 22 | 16 | 12 | 8.7 | 6.4 |
| Rated Speed(RPM) | 230 | 166 | 120 | 60 | 44 | 32 | 24 | 16 | 12 | 9 | 6.5 | 4.8 |
| Rated Torqoue(Nm) | 0.4 | 0.6 | 0.8 | 1.7 | 2.3 | 3.2 | 4.3 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 |
| Gearbox Length(mm) | 43.5 | 43.5 | 43.5 | 53.5 | 53.5 | 53.5 | 53.5 | 53.5 | 63.5 | 63.5 | 63.5 | 63.5 |
Contact Us
| Product Details | |
| Model Number | 42HS60-12V-PG13 |
| Product Type | Brushless |
| Lead Time | in stock |
| Insulation Class | B |
| Protective Grade | IP20 |
| Electrical Specification | |
| Rated Torque(Nm) | 0.4 |
| Rated Power(W) | 10 |
| Rated Voltage(VDC) | 12 |
| Rated Speed(RPM) | 230 |
| No-load Speed(RPM) | 300 |
| Drive Integrated | Yes |
| Sensor Type | Hall |
| Physical Specification | |
| Frame Size(mm) | Φ42 |
| Body Length(mm) | 103.5 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 22 |
| Weight(KG) | 0.8 |
L=43.5mm
1. RED Wire: Power 12V
2. BLACK Wire: Power Ground
3. Yellow Wire: FG Signal(12 pulses/circle)
4. WHITE Wire: CW/CCW
5. BLUE Wire: PWM Speed Control(0-5V)
