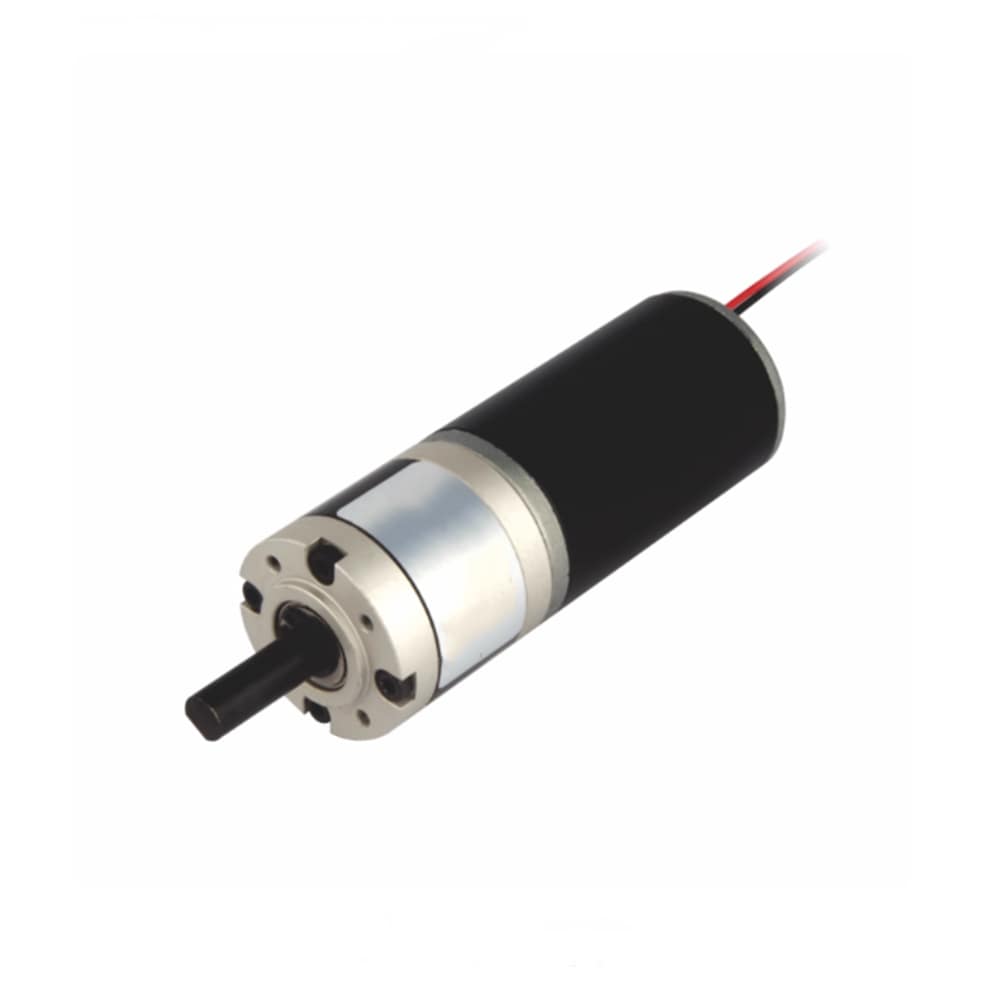

12V 10RPM 3.4Nm Φ36mm Geared DC Motor Reduction Planetary Gearbox
- Part Number: 36WS62-12V-S10
- Lead Time: In Stock
- Unit Price: US $35.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2
This compact 36WS62-12V-S series dc geared motor is a rated voltage 12V diameter Φ36m round brushed intagrated with a size Φ36mm round planetary gearbox. It leads to speed range of 3RPM to 2000RPM and holding torque upto 4.0Nm. It is widely used in household appliances, office automation, bank equipment, medical devices, intelligent robots, etc.
Specification
- Manufacturer Part Number: 36WS62-12V-S10
- Rated Voltage: 12VDC
- Rated Power: 10.2W
- Rated Torque: 3.4Nm
- No-load Speed: 10RPM
- Rated Speed: 7.5RPM
- Rated Current: 0.85A
- Insulation Class: B
- Body Length: 116.5mm
- Shaft Diameter: Φ5mm
- Shaft Length: 25mm
- Dc-ut Length: 20mm
- Weight: 0.65KG
Contact Us
| Product Details | |
| Model Number | 36WS62-12V-S10 |
| Product Type | Brushed |
| Lead Time | in stock |
| Electrical Specification | |
| Rated Torque(Nm) | 3.4 |
| Rated Power(W) | 10.2 |
| Rated Voltage(VDC) | 12 |
| Rated Speed(RPM) | 7.5 |
| No-load Speed(RPM) | 10 |
| Physical Specification | |
| Frame Size(mm) | Φ36 |
| Body Length(mm) | 116.5 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 25 |
| Weight(KG) | 0.65 |

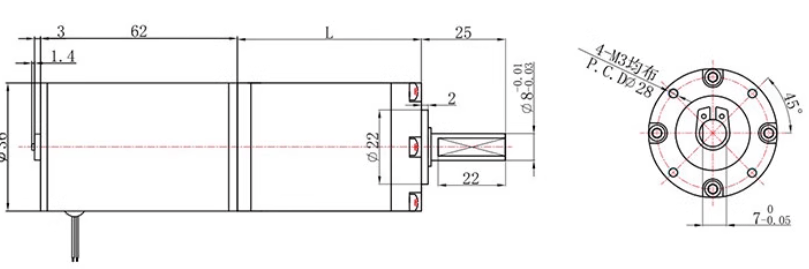

L=54.5mm
