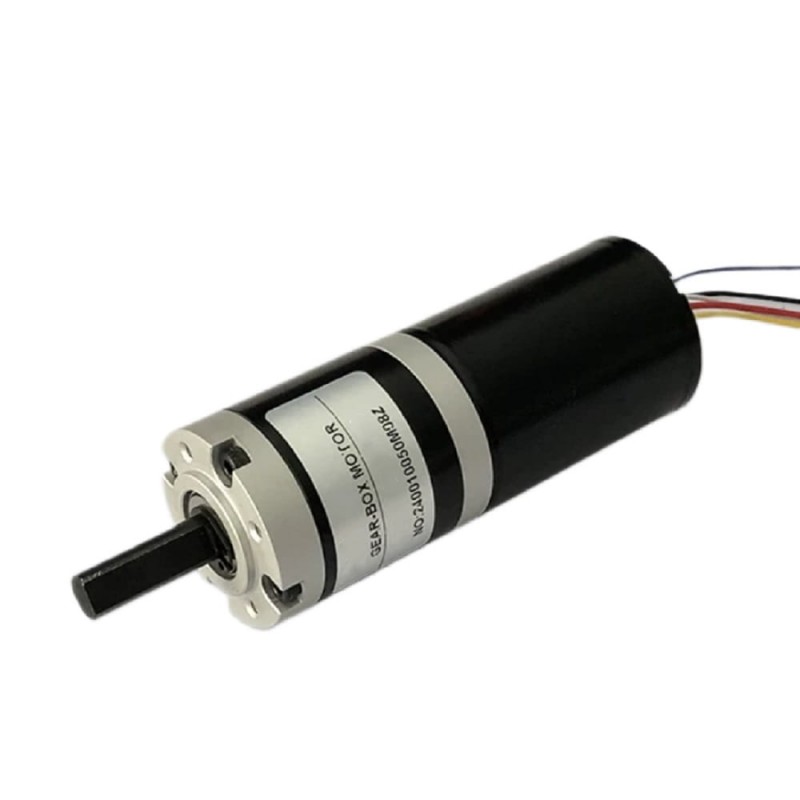

12V 10RPM 3.0Nm 6.6W Φ36mm Geared Brushless DC Drive Motor Planetary Gearbox
- Part Number: 36WS50-12V-S10
- Lead Time: In Stock
- Unit Price: US $36.90
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2
This 36WS50-S series brushless dc motor is integrated with a high quality planetary gearbox, which leads to a rated speed 3RPM to 2000RPM and holding torque upto 4.0Nm. It has 5 wires connection with built-in sensor hall drive board so this geared motor can be directly driven by electricity. It is widely used in household appliances, office automation, bank equipment, medical devices, intelligent robots, etc.
Specification
- Manufacturer Part Number: 36WS50-12V-S10
- Rated Power: 6.6W
- Rated Torque: 3.0Nm
- No-load Speed: 10RPM
- Rated Speed: 7.5RPM
- Rated Current: 0.6A
- Insulation Class: B
- Sensor Type: Hall
- Body Length: 104.5mm
- Shaft Diameter: Φ8mm
- Shaft Length: 25mm
- D-cut Length: 22mm
- Weight: 0.5KG
Contact Us
| Product Details | |
| Model Number | 36WS50-12V-S10 |
| Product Type | Brushless |
| Lead Time | in stock |
| Electrical Specification | |
| Rated Torque(Nm) | 3.0 |
| Rated Power(W) | 6.6 |
| Rated Voltage(VDC) | 12 |
| Rated Speed(RPM) | 7.5 |
| No-load Speed(RPM) | 10 |
| Sensor Type | Hall |
| Physical Specification | |
| Frame Size(mm) | Φ36 |
| Body Length(mm) | 104.5 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 25 |
| Weight(KG) | 0.5 |
L=54.5mm
1. RED Wire: Power 24V
2. BLACK Wire: Power Ground
3. Yellow Wire: FG Signal(6 pulses/circle)
4. WHITE Wire: CW/CCW
5. BLUE Wire: PWM Speed Control(0-5V)
