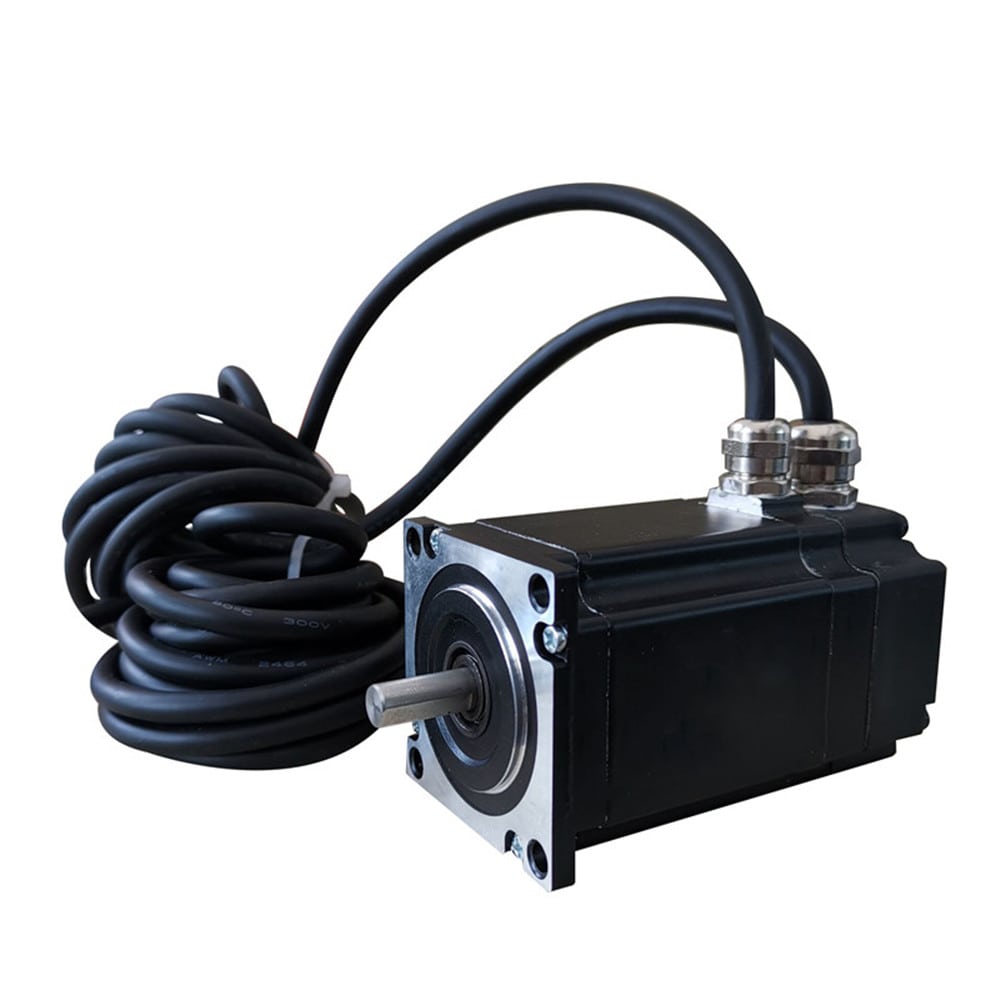

Waterproof IP65 NEMA 23 Closed Loop Stepper Motor 4.6A 3Nm/426oz.in with 1000PPR Encoder
- Part Number: 57IP65-30E
- Lead Time: In Stock
- Unit Price: US $80.00
- Sales: 8
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This NEMA 23 stepper motor has a optimal holding torque output 3Nm/426oz.in with 1000PPR incremental optical encoder, which can acheieve a closed-loop system. A protection level IP65 is designed and sealed perfectly for this stepper motor so it can be protected well against dust and wet situation. A higher IP protection such as IP67 and IP68 can be customzied.

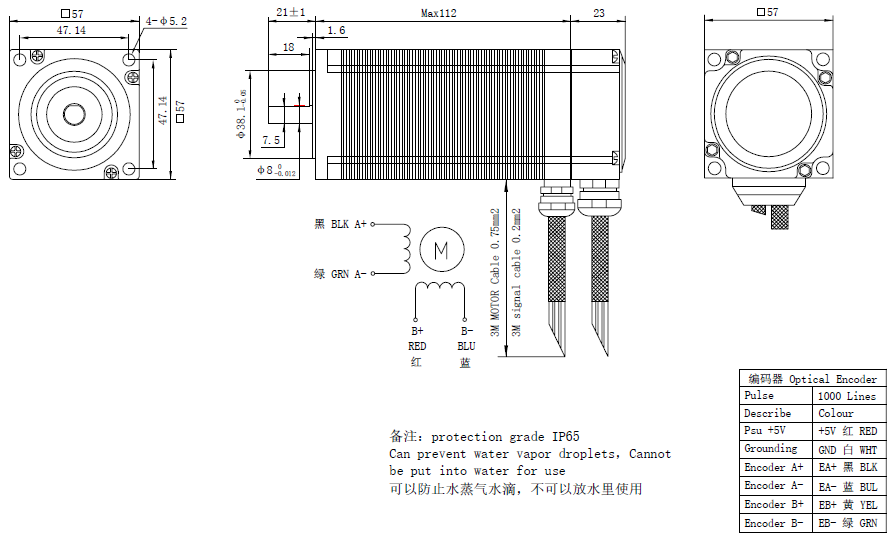

Motor Specification
- Manufacturer Part Number: 57IP65-30E
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 3.0Nm/426oz.in
- Rated Current: 4.6A
- Frame Size: 57x57mm
- Body Length: 112mm
- Shaft Diameter: Φ8mm
- Shaft Length: 21mm
- D-cut Length: 15mm
- Number of Leads: 4
- Lead Length: 3000mm
- Protection Level: IP65
Encoder Specification
- Encoder Type: Incremental
- Encoder Resolution: 1000PPR
- Encoder Signal Channels: 2
- No. of Leads: 6
- Lead Length: 3000mm
- Supply Voltage: 5.0V
Contact Us
| Product Details | |
| Model Number | 57IP65-30E |
| Product Type | Waterproof Stepper Servo Motor |
| Lead Time | in stock |
| Insulation Class | B |
| Protective Grade | IP65 |
| Stepper Motor Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 3.0 |
| Rated Current(A) | 4.6 |
| Driving Voltage(VDC) | 24-48 |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 112 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 21 |
| Encoder Specification | |
| Encoder Type | Incremental |
| Encoder Resolution(PPR) | 1000 |
