Size 14mm NEMA 6 Linear Actuator External Stepper Motor 32mm Stack 0.3A Lead 1mm Screw Length 57mm
- Part Number: 14HB32-0304E-57L1
- Lead Time: In Stock
- Unit Price: $99.00
- Sales: 2
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

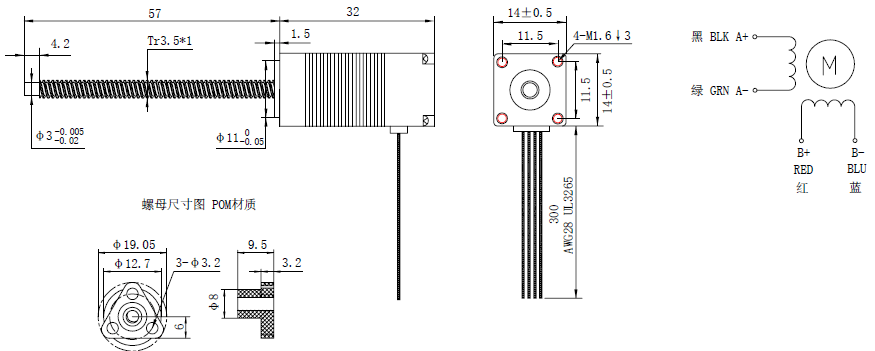

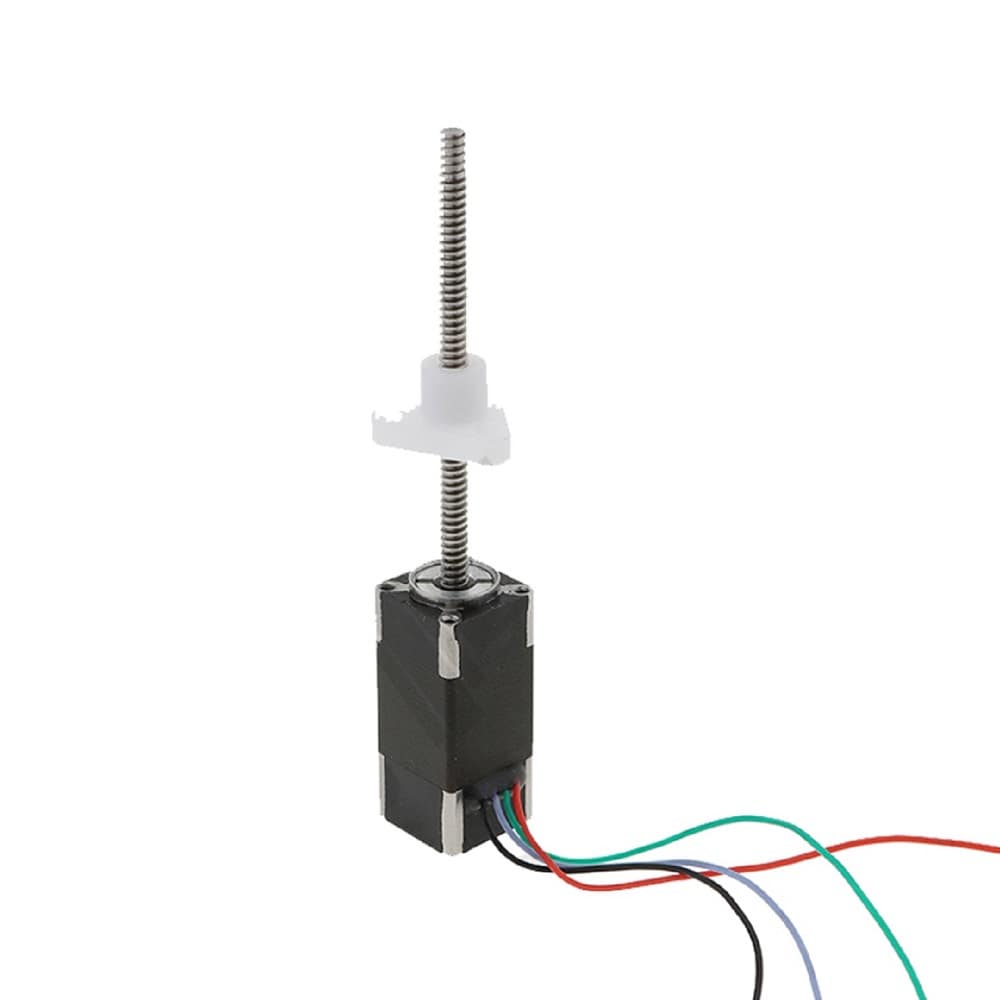

This small external linear actuator electric motor is one size 14mm NEMA 6 linear motion stepper motor with a 32mm body length, 1.8 degree step angle, and 0.3A rated current. It is integrated with a Φ3.5mm diameter lead screw & lead travel 1mm per revolution/0.005mm per step, and the lead screw length is 57mm. A triangle screw POM nut moves along the threaded rod.
Electrical Specification
- Part Number: 14HB32-0304E-57L1
- Motor Type: External Linear Stepper
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.005Nm/0.0071oz.in
- Rated Current/phase: 0.3A
- Driving Voltage: 12-24V
Physical Specification
- Frame Size: 14x14mm
- Motor Length: 32mm
- Lead Length: 57mm
- Lead Screw Diameter: Φ3.5mm
- Lead Screw/Step: 0.005mm
- Lead Screw/Revolution: 1mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 0.04KG
Contact Us
| Motor Specification | |
| Motor Type | External Linear Stepper |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.005 |
| Holding Torque(oz.in) | 0.0071 |
| Rated Current(A) | 0.3 |
| Frame Size(mm) | 14x14 |
| Stack Length(mm) | 32 |
| Driving Voltage(VDC) | 12-24 |
| Lead Screw Specification | |
| Lead Screw Length(mm) | 57 |
| Lead Screw Diameter(mm) | 3.5 |
| Lead Travel/Revolution(mm) | 1 |
| Lead Travel/Step(mm) | 0.005 |
