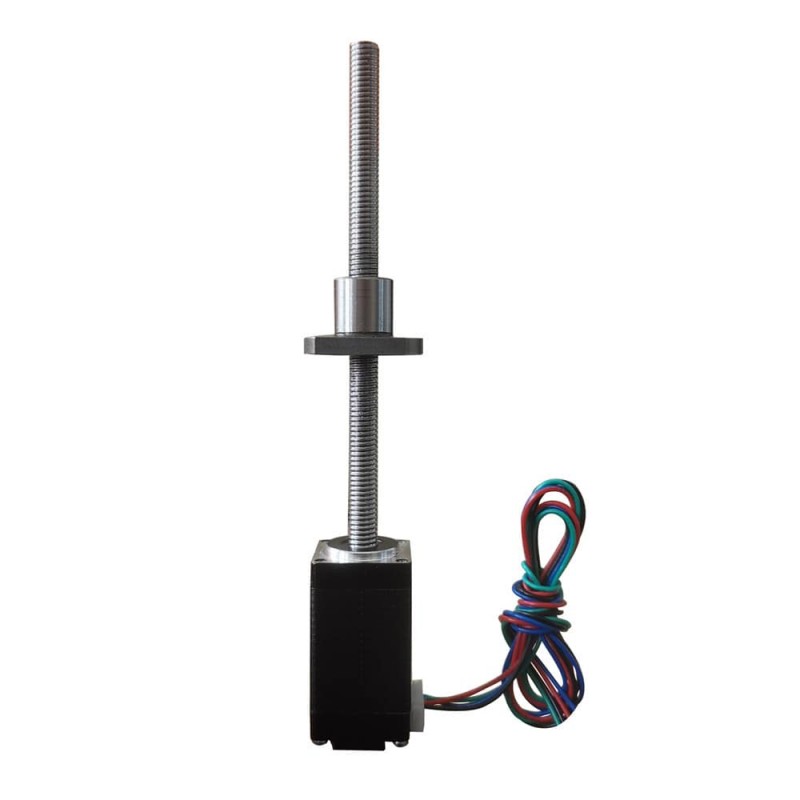

NEMA 8 Ball Screw Linear Actuator Stepper Motor 38mm Stack 0.6A Lead 2mm Length 100mm
- Part Number: 20LS38-0604G-100L62
- Lead Time: Two Weeks
- Unit Price: $150.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This small ball screw linear actuator electric motor is a size 20mm NEMA 8 linear motion stepper with a 38mm body length, 1.8 degree step angle, and 0.6A rated current. It is integrated with a Φ6mm diameter ball screw & lead travel 2mm per revolution/0.01mm per step, a high quality ball screw nut. The ball screw length is 100mm and can be customzied.
Electrical Specification
- Part Number: 20LS38-0604G-100L62
- Motor Type: External
- Step Angle: 1.8deg
- Bipolar/Unipoalr: Bipolar
- Rated Current/phase: 0.6A
- Phase Resistance: 12.5ohms
- Inductance: 5.5mH
- Driving Voltage: 12-24V
Physical Specification
- Frame Size: 20x20mm
- Body Length: 38mm
- Ball Screw Length: 100mm
- Ball Screw Diameter: Φ6mm
- Lead/Step: 0.01mm
- Lead/Revolution: 2mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 0.1kg
Contact Us
| Motor Specification | |
| Motor Type | External |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Rated Current(A) | 0.6 |
| Frame Size(mm) | 20x20 |
| Stack Length(mm) | 38 |
| Driving Voltage(VDC) | 12-24 |
| Ball Screw Specification | |
| Ball Screw Size | 0602 |
| Ball Screw Length(mm) | 100 |
| Ball Screw Diameter(mm) | 6 |
| Ball Screw Travel/Revolution(mm) | 2 |
| Ball Screw Travel/Step(mm) | 0.01 |
