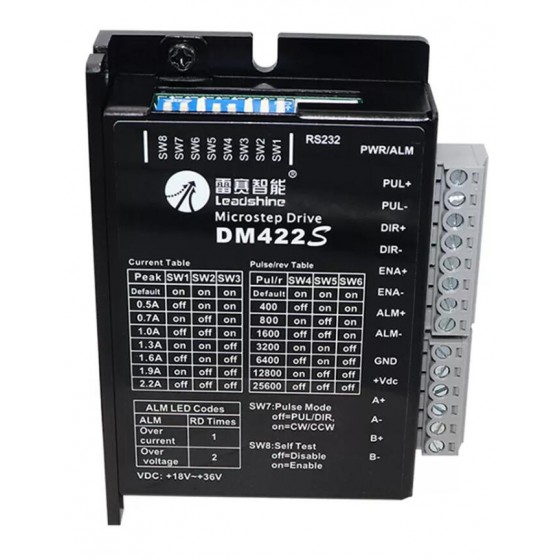

LEADSHINE DM422S Digital Stepper Motor Drive 0.3-2.2A 18-40VDC RS232 Port
- Part Number: DM422S
- Lead Time: In Stock
- Unit Price: $50.00
- Sales: 13
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
LEADSHINE DM422S Stepper Motor Drive 0.3-2.2A 18-40VDC RS232 Port
Electrical Specifications:
- Control Model: Step & Direction or CW/CCW(double pulse)
- Output Peak Current: 0.2-2.2A
- Input Voltage: +18-40VDC
- Logic Signal Current: 7-16mA(Typical 10mA)
- Signal Voltage Input: 5V
- Pulse Input Frequency: 0-70kHz
- Isolation Resistance: 100MΩ
Operating Environment and other Specifications:
- Cooling: Natural Cooling or Forced cooling
- Environment: Avoid dust, oil fog and corrosive gases
- Ambient Temperature: 0-65℃
- Humidity: 40%-90%RH
- Operating Temperature: -0℃-50℃
- Storage Temperature: -20-65℃

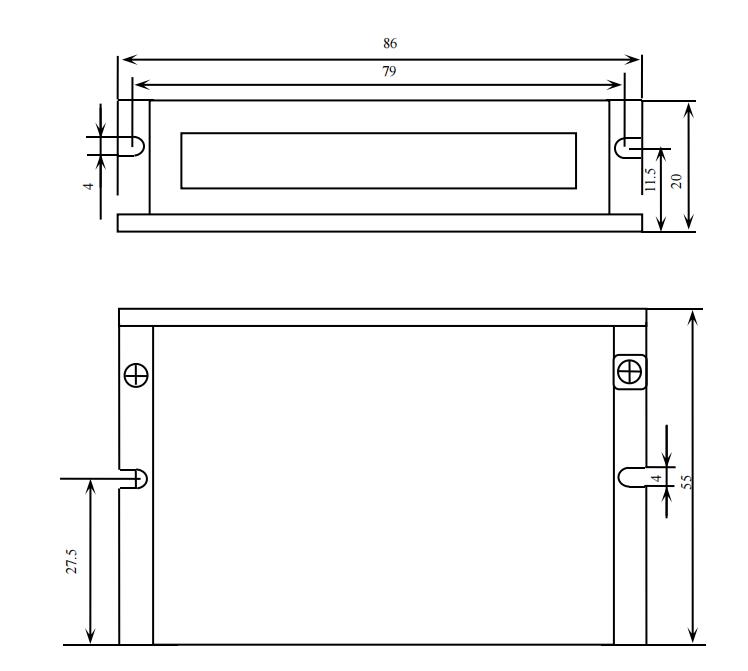

- Frame Size: 86x55x20mm
- Weight: 230g
Contact Us
| Drive Specification | |
| Phase Number | 2 |
| Input Voltage(VDC) | 18-40 |
| Output Current(A) | 0.2-2.2 |
| Micro-step Resolutions | 200-25600 |
| Encoder Feedback | No |
| Control Mode | Pulse |
| Dimensions(mm) | 55x20x86 |
| Weight(KG) | 0.23 |
