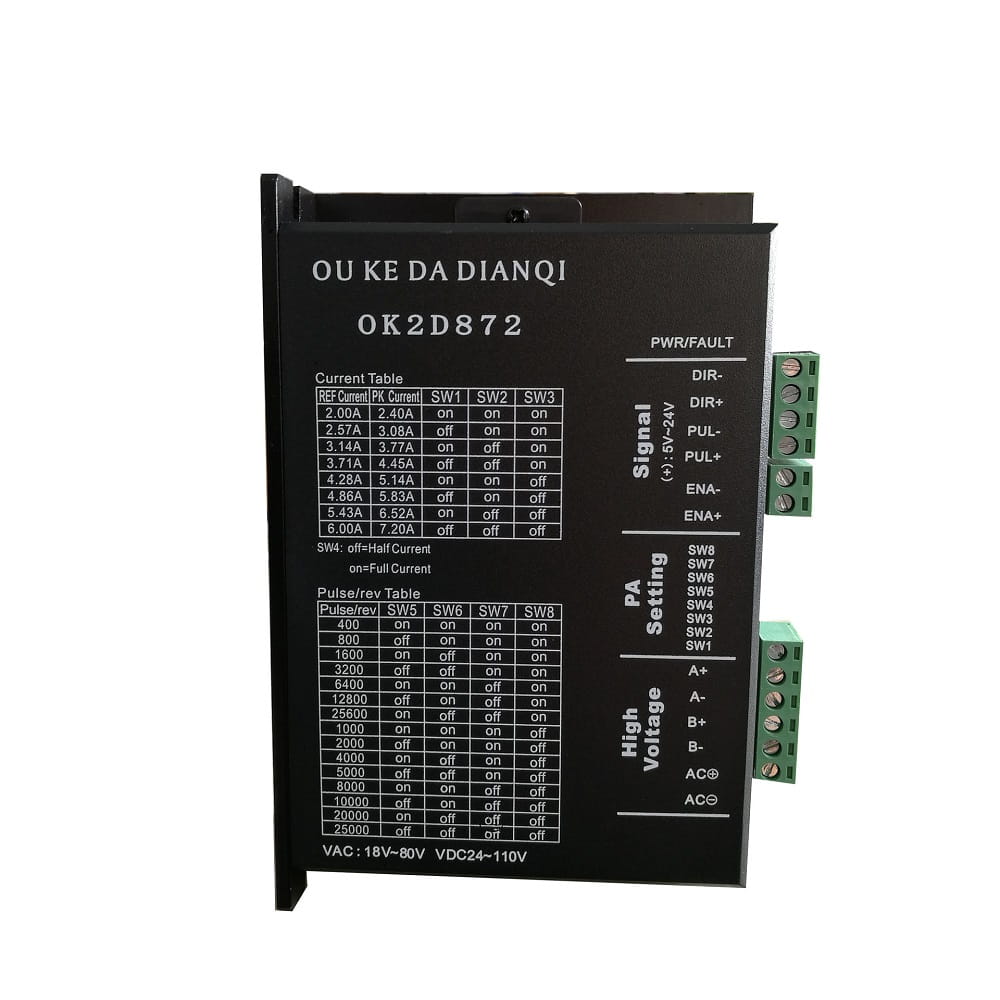

This OK2D872 stepper drive is definitely capable of power wide range of 2 phase stepper motors of NEMA 23, 24 AND 34. And it has a output peak current 2.4-7.2A and input votage 24-110VDC or 18-80VAC.
Key Features
- Manufacturer Part Number: OK2D872
- Pulse & Direction(PUL/DIR) or CW/CCW control
- Logic Input Voltage: 5V/24V
- Output Current: 2.4-7.2A(6.0RMS)
- Input Voltage: 24-110VDC/18-80VAC
- Pulse Input Frequency: 0-200kHz
- Cooling: Natural cooling or forced cooling
- Ambient Temperature: 0℃-50℃
- Humidity: 40%RH-90%RH
- Operating Temperature: 0℃-50℃
- Storage Temperature: -20℃-65℃
- Dimension: 151x97x53mm
- Weight: Approx. 0.6kg
Contact Us
| Product Details | |
| Model Number | OK2D872 |
| Product Type | Stepper Drive |
| Lead Time | in stock |
| Drive Specification | |
| Phase Number | 2 |
| Input Voltage(VAC) | 18-80 |
| Input Voltage(VDC) | 24-100 |
| Output Current(A) | 2.4-7.2 |
| Signal Voltage(V) | 5/24 |
| Control Mode | Pulse |
| Dim.(LxHxW)(mm) | 1519x97x53 |
| Weight(KG) | 0.6 |
