NEMA 17 External Linear Actuator Stepper Motor 34mm Stack 0.4A Lead 2mm Screw Length 100mm
- Part Number: 42LS34-0404E-100L2
- Lead Time: In Stock
- Unit Price: US $30.00
- Sales: 13
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

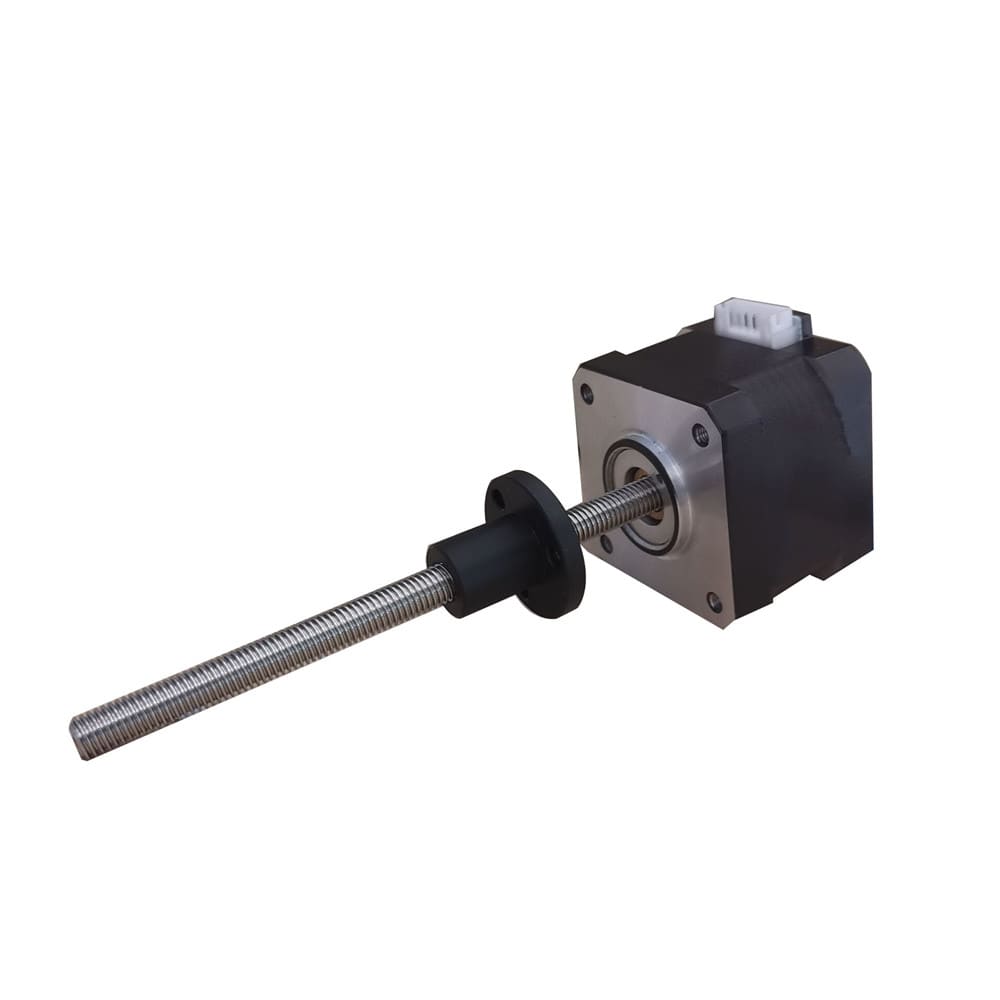

This size 42 external linear actuator with body part 34mm NEMA 17 stepper motor is integrated with a diameter Φ6.35mm lead screw & a POM screw nut moving along the threaded rod. The lead travel is 2mm per revolution or 0.01mm per step.
Electrical Specification
- Manufacturer Part Number: 42LS34-0404E-100L2
- Motor Type: External
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.26Nm/36.92oz.in
- Rated Current/phase: 0.4A
- Phase Resistance: 30ohms
- Inductance: 37mH
- Driving Voltage: 12-24V

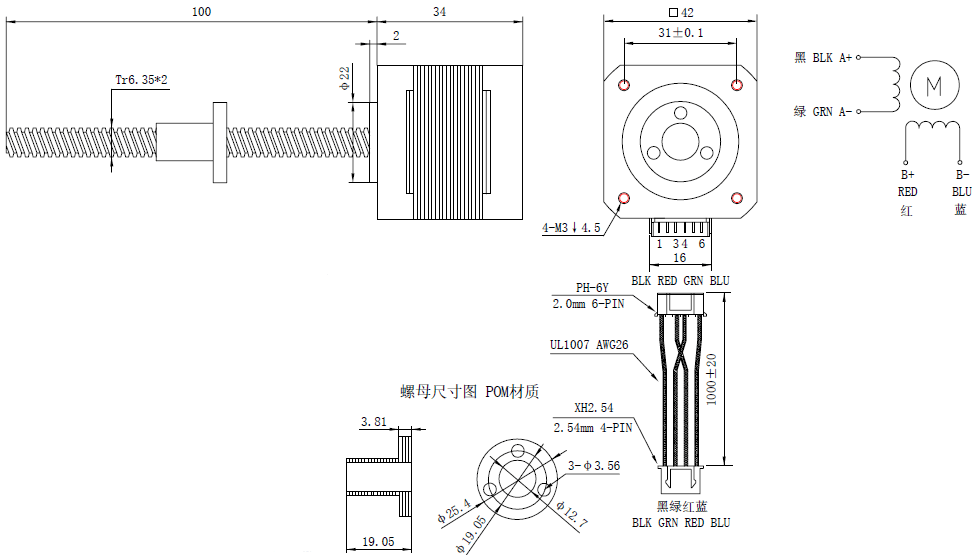

Physical Specification
- Frame Size: 42x42mm
- Body Length: 34mm
- Lead Screw Length: 100mm
- Lead Screw Diameter: Φ6.35mm
- Lead /Step: 0.01mm
- Lead/Revolution: 2mm
- Number of Leads: 4
- Lead Length: 1000mm
- Weight: 0.3kg
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 42LS34-0404E-100L2 |
| Product Type | External Linear Stepper |
| Lead Time | in stock |
| Insulation Class | B |
| Protective Grade | IP20 |
| Stepper Motor Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.26 |
| Rated Current(A) | 0.4 |
| Driving Voltage(VDC) | 12-24 |
| Frame Size(mm) | 42x42 |
| Stack Length(mm) | 34 |
| Lead Screw Specification | |
| Lead Screw Diameter(mm) | 6.35 |
| Lead Travel/Revolution(mm) | 2 |
| Lead Travel/Step(mm) | 0.01 |
| Lead Screw Length(mm) | 100 |
