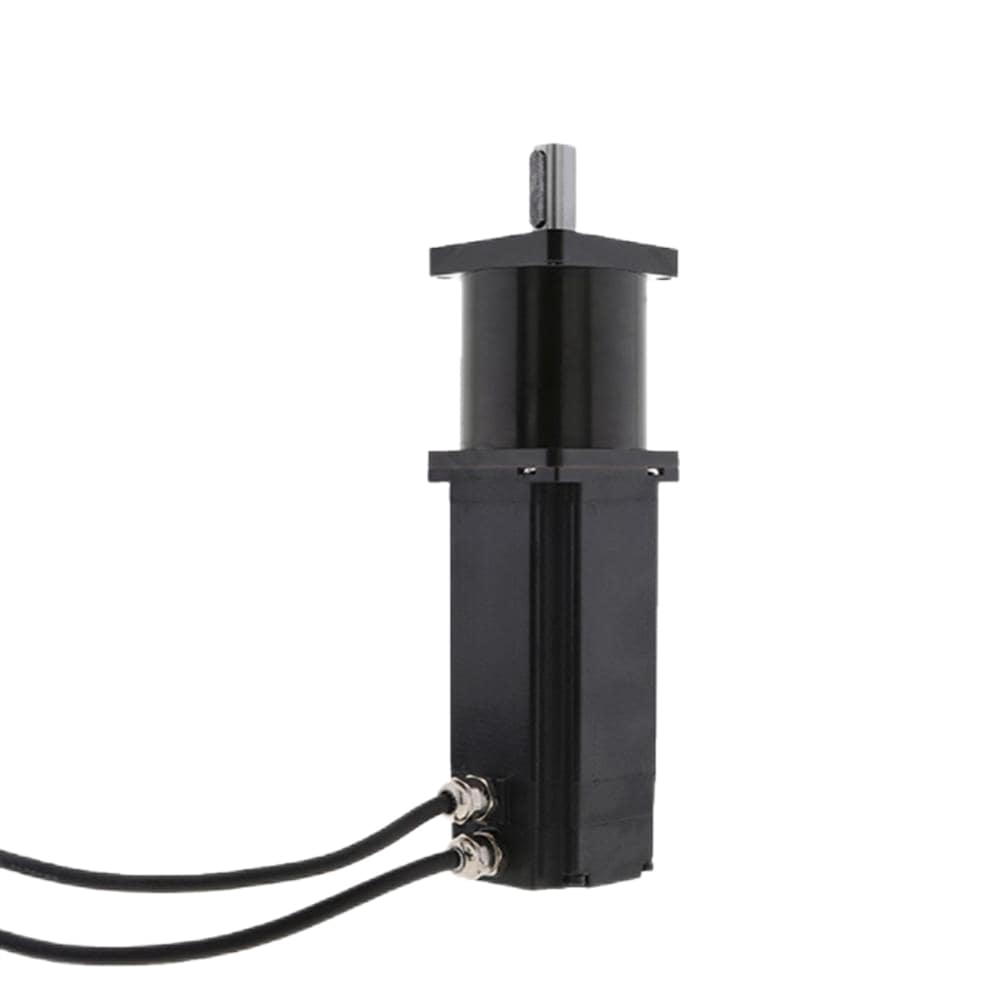

Waterproof IP65 NEMA 23 Closed-loop Stepper Motor Gear Ratio 50:1 Precision Planetary Gearbox
- Part Number: 57AI112E-IP65-HG50
- Lead Time: One Week
- Unit Price: US $150.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This size 57mm NEMA 23 closed-loop stepper motor is combined with a 1000cpr incremental encoder & one precision planetary gearbox of reduction ratio 50:1 with an IP65 waterproof rating, which means this IP65 stepper motor can be fully protected against dust, and also can be protected against low pressure jets if water from all directions and limited ingress permitted. Frankhumotor also provides higher protective levels IP67 and IP 68 if necessary.
Motor Specification
- Manufacturer Part Number: 57AI112E-IP65-HG50
- Step Angle w/o gearbox: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque w/o gearbox: 3.0Nm
- Rated Current/phase: 4.6A
- Frame Size: 57x57mm
- Motor Length: 112mm
- Number of Leads: 4
- Lead Length: 3000mm
- Protection Level: IP65
Gearbox Specification
- Gearbox Type: Planetary
- Gear Ratio: 50:1
- Efficiency: 94%
- Backlash at No-load: 25arcmin
- Gearbo Length: 70mm
- Shaft Diameter: Φ14mm
- Shaft Length: 34mm
- Keyway Length: 25mm
- Protection Level: IP65
Connection
- Motor: Black: A+, Green: A-, Red: B+, Blue: B-
- Encoder: 5V: Red, GND: White, EA+, Black, EA-: Blue, EB+: Yellow, EB-: Green
Contact Us
| Product Details | |
| Model Number | 57AI112E-IP65-HG50 |
| Product Type | Geared Stepper |
| Lead Time | One Week |
| Insulation Class | B |
| Protective Grade | IP65 |
| Stepper Motor Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 3.0 |
| Rated Current(A) | 4.6 |
| Driving Voltage(VDC) | 24-72 |
| Frame Size(mm) | 57x57 |
| Body Length(mm) | 112 |
| Gearbox Specification | |
| Gearbox Type | Precision Planetary |
| Gear Ratio | 50:1 |
| Gearbox Efficiency | 94% |
| Backlash at No-load | 25arcmin |
| Gearbox Length(mm) | 70 |
| Output Shaft Diameter(mm) | 14 |
| Output Shaft Length(mm) | 34 |
| Encoder Specification | |
| Encoder Type | Incremental |
| Encoder Resolution(PPR) | 1000 |
