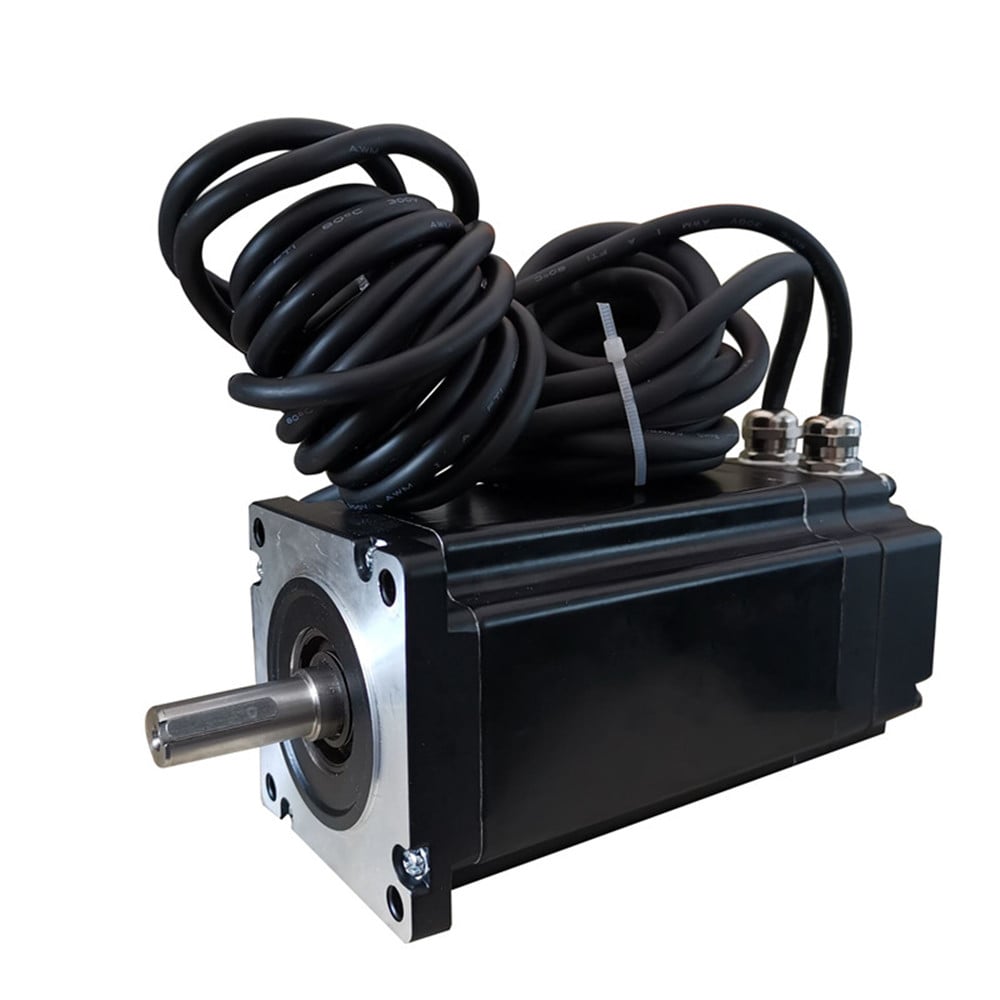

Waterproof IP65 NEMA 34 Closed-loop Stepper Motor 6.0A 8.5Nm/1207oz.in 1000PPR Encoder 3M Cable
- Part Number: 86IP65-85E
- Lead Time: In Stock
- Unit Price: US $135.00
- Sales: 12
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This NEMA 34 stepper motor has a optimal holding torque output 8.5Nm/1207oz.in with 1000PPR optical encoder, which can acheieve a closed-loop system. A protection level IP65 is perfectly designed and sealed for this stepper motor so it can be protected well against dust and wet situation. A higher IP protection such as IP67 and IP68 can be customzied.

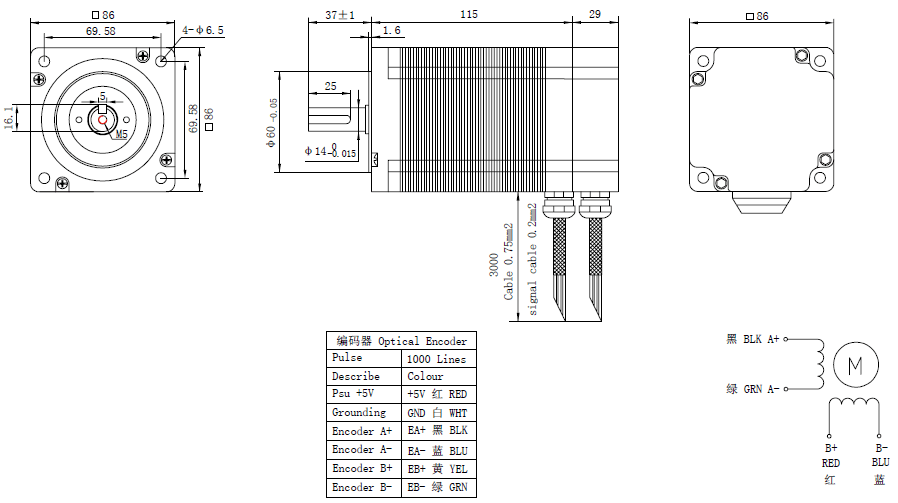

Motor Specification
- Manufacturer Part Number: 86IP65-85E
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 8.5Nm(1207oz.in)
- Rated Current: 6.0A
- Frame Size: 86x86mm
- Body Length: 115mm
- Shaft Diameter: Φ14mm
- Shaft Length: 37mm
- Keyway Length: 25mm
- Number of Leads: 4
- Lead Length: 3000mm
- Protection Level: IP65
Encoder Specification
- Encoder Type: Incremental
- Encoder Resolution: 1000PPR
- Encoder Signal Channels: 2
- No. of Leads: 6
- Lead Length: 3000mm
- Supply Voltage: 5.0V
Contact Us
| Product Details | |
| Model Number | 86IP65-85E |
| Product Type | Waterproof Stepper Servo Motor |
| Lead Time | in stock |
| Insulation Class | B |
| Protective Grade | IP65 |
| Stepper Motor Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 8.5 |
| Rated Current(A) | 6.0 |
| Driving Voltage(VDC) | 24-110 |
| Frame Size(mm) | 86x86 |
| Body Length(mm) | 115 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 37 |
| Encoder Specification | |
| Encoder Type | Incremental |
| Encoder Resolution(PPR) | 1000 |
