Lead Screw Stepping Motor Non-captive Type Step 0.03175mm Screw Length 280mm 86-76mm NEMA 34
- Part Number: 86HB76-5004N-280L6.35
- Lead Time: Pre-Order
- Unit Price: US $165.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

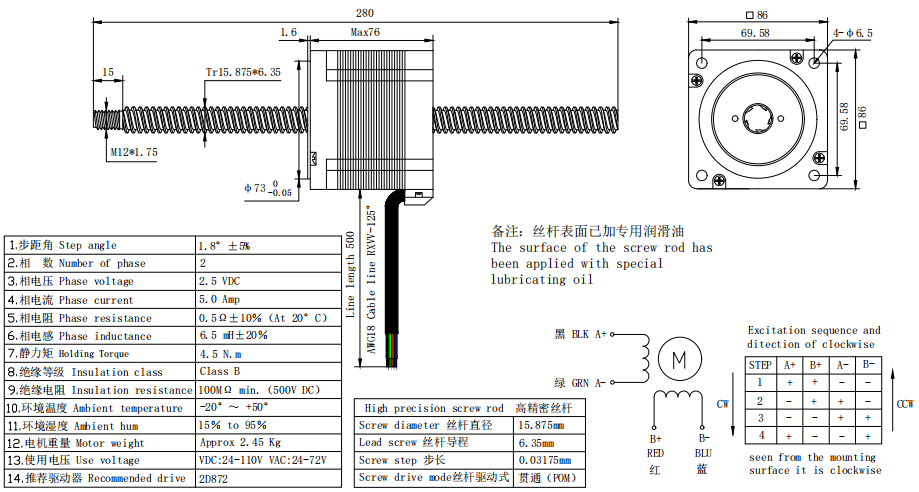

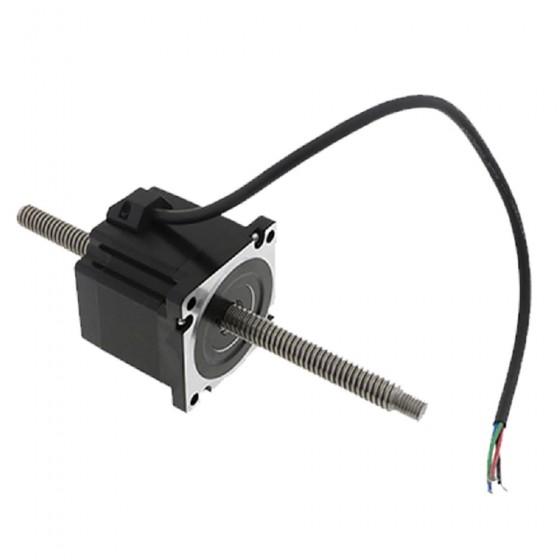

This large lead screw stepping motor is an Non-captive type with size 86mm (NEMA 34). It is integrated with a lead screw of Φ15.875mm diameter and 280mm length. The lead screw's linear travel is 0.03175mm per step or 6.35mm per revolution. The digital stepping drive M860C is recommended for controlling this motor.
Electrical Specification
- Manufacturer Part Number: 86HB76-5004N-280L6.35
- Motor Type: Non-captive
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 4.5Nm
- Rated Current/phase: 5.0A
- Driving Voltage: 24-110V
Physical Specification
- Frame Size: 86x86mm
- Body Length: 76mm
- Lead Screw Length: 280mm
- Lead Screw Diameter: Φ15.875mm
- Lead /Step: 0.03175mm
- Lead/Revolution: 6.35mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 2.9kg
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 86HB76-5004N-280L6.35 |
| Product Type | Non-captive Linear Stepper |
| Lead Time | One Week |
| Insulation Class | B |
| Protective Grade | IP20 |
| Stepper Motor Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 4.5 |
| Rated Current(A) | 5.0 |
| Driving Voltage(VDC) | 24-110 |
| Frame Size(mm) | 86x86 |
| Stack Length(mm) | 76 |
| Lead Screw Specification | |
| Lead Screw Diameter(mm) | 15.875 |
| Lead Travel/Revolution(mm) | 6.35 |
| Lead Travel/Step(mm) | 0.03175 |
| Lead Screw Length(mm) | 280 |
