Lead Screw Stepping Motor Non-captive Type Step 0.02mm Screw Dia. 5mm Length 150mm 28-32mm NEMA 11
- Part Number: 28HB32-0674N-150L54
- Lead Time: In Stock
- Unit Price: US $58.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

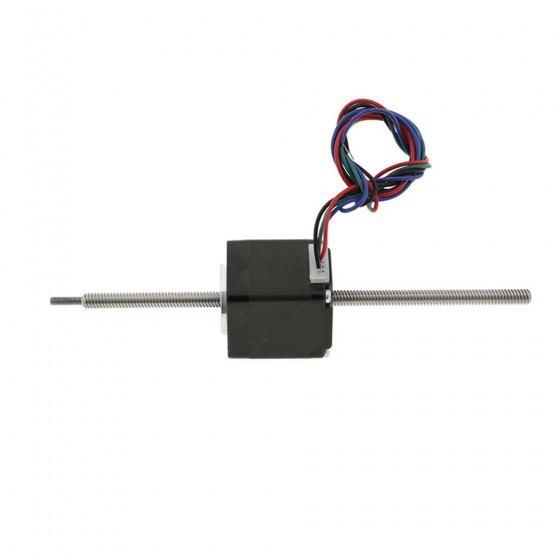

This lead screw stepping motor is an Non-captive type with size 28mm (NEMA 11). It is integrated with a lead screw of Φ5mm diameter and 150mm length. The lead screw's linear travel is 0.02mm per step or 4mm per revolution. The digital stepping drive M322C is recommended for controlling this motor.
Electrical Specification
- Manufacturer Part Number: 28HB32-0674N-150L54
- Motor Type: Non-captive
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.06Nm
- Rated Current/phase: 0.67A
- Driving Voltage: 12-24V

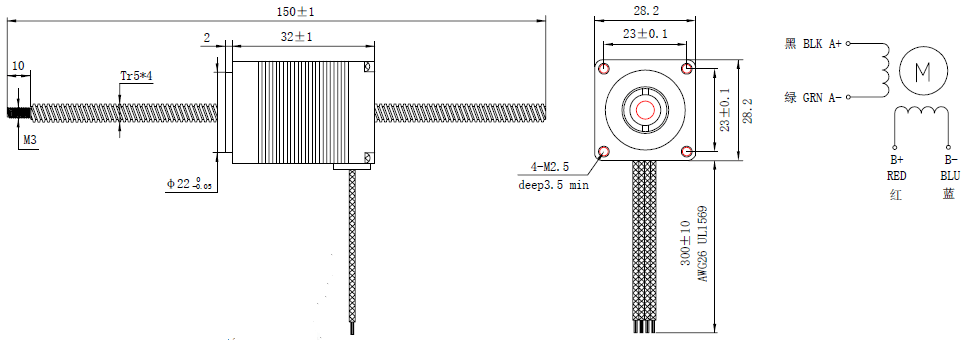

Physical Specification
- Frame Size: 28x28mm
- Body Length: 32mm
- Lead Screw Length: 150mm
- Lead Screw Diameter: Φ5mm
- Lead /Step: 0.02mm
- Lead/Revolution: 4mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 0.15kg
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 28HB32-0674N-150L54 |
| Product Type | Non-captive Linear Stepper |
| Lead Time | in stock |
| Insulation Class | B |
| Protective Grade | IP20 |
| Stepper Motor Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.06 |
| Rated Current(A) | 0.67 |
| Driving Voltage(VDC) | 12-24 |
| Frame Size(mm) | 28x28 |
| Stack Length(mm) | 32 |
| Lead Screw Specification | |
| Lead Screw Diameter(mm) | 5 |
| Lead Travel/Revolution(mm) | 4 |
| Lead Travel/Step(mm) | 0.02 |
| Lead Screw Length(mm) | 150 |
