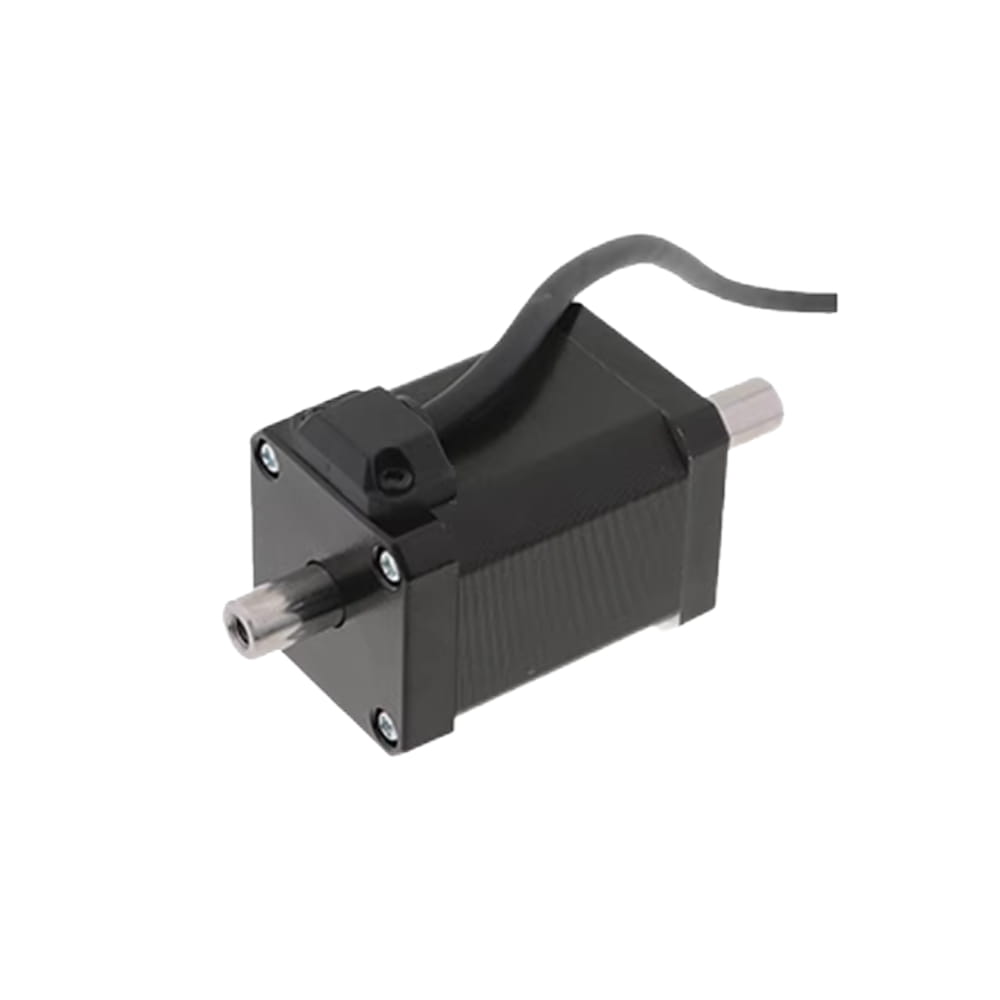

This hollow shaft stepping motor has a size 42mm (NEMA 17) with body length 60mm, 1.7A rated current and holding torque 0.6Nm. A hollow shaft with outer diameter Φ10mm & inner diameter Φ4.2mm is available and also a double shaft with a front shaft length 25mm and rear shaft length 15mm is designed. The digital stepping drive M332C is recommended for controlling this motor.
Electrical Specification
- Manufacturer Part Number: 42HB60-1704K
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.6Nm
- Rated Current/phase: 1.7A
- Driving Voltage: 12-24V

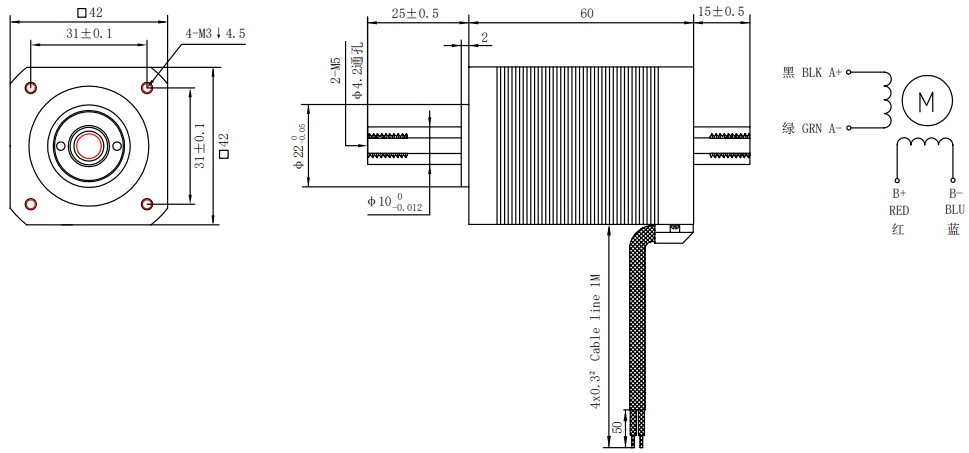

Physical Specification
- Frame Size: 42x42mm
- Body Length: 60mm
- Outer Shaft Diameter: Φ10mm
- Inner Shaft Diameter: Φ4.2mm
- Front Shaft Length: 25mm
- Rear Shaft Length: 15mm
- Number of Leads: 4
- Lead Length: 1000mm
- Weight: 0.6kg
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 42HB60-1704K |
| Product Type | Hollow Shaft Stepper Motor |
| Lead Time | in stock |
| Stepper Electrical Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.6 |
| Rated Current(A) | 1.7 |
| Driving Voltage(VDC) | 12-24 |
| Insulation Class | B |
| Stepper Physical Specification | |
| Protective Grade | IP20 |
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 60 |
| Inner Shaft Diameter(mm) | 4.2 |
| Outer Shaft Diameter(mm) | 10 |
| Front Shaft Length(mm) | 25 |
| Rear Shaft Length(mm) | 15 |
| No. of Leads | 4 |
| Lead Length(mm) | 1000 |
| Weight(KG) | 0.6 |
