NEMA 11 Stepper Motor Bipolar L=51mm 0.67A with Rear Shaft & Gear Ratio 14:1 Planetary Gearbox
- Part Number: 28HS51-0674D-PG14
- Lead Time: In Stock
- Unit Price: US $35.00
- Sales: 21
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This NEMA 11 stepper motor with rear shaft has 51mm body and 0.67A rated current, integrated with one planetary gearbox of 14:1 gear ratio. It's an ideal solution to the applications that require limited space but low speed and high torque.

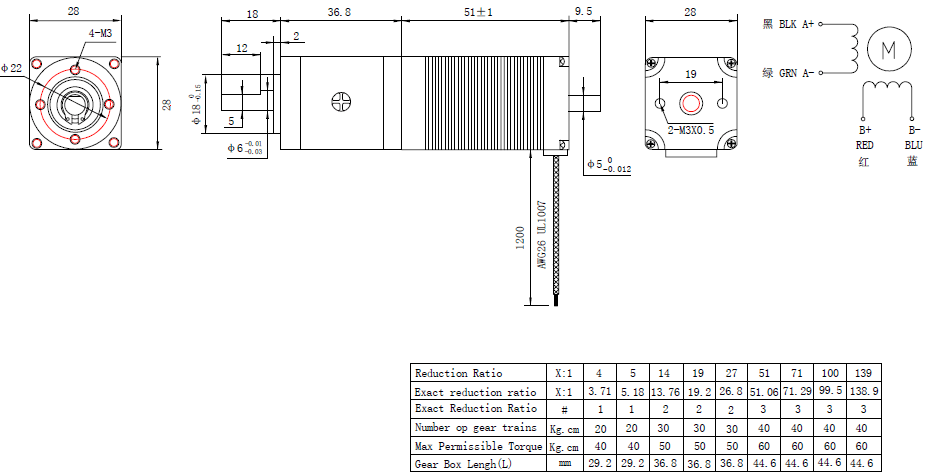

Motor Specification
- Manufacturer Part Number: 28HS51-0674D-PG14
- Step Angle: 1.8deg
- Holding Torque: 0.12Nm/17.04oz.in
- Rated Current/phase: 0.67A
- Driving Voltage: 12-24V
- Frame Size: 28x28mm
- Motor Length: 51mm
- Rear Shaft Diameter: Φ5mm
- Rear Shaft Length: 9.5mm
- Number of Leads: 4
- Lead Length: 500mm
Gearbox Specification
- Gearbox Type: Planetary
- Gear Ratio: 14:1
- Efficiency: 80%
- Backlash at No-load: <=1.5deg
- Rated Torque: 3.0Nm
- Maximun Torque: 5.0Nm
- Gearbox Length: 36.8mm
- Shaft Diameter: Φ6mm
- Shaft Length: 18mm
- D-cut Length: 12mm
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 28HS51-0674D-PG14 |
| Product Type | Geared Stepper |
| Lead Time | in stock |
| Insulation Class | B |
| Protective Grade | IP20 |
| Stepper Motor Specification | |
| Step Angle(deg.) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.12 |
| Rated Current(A) | 0.67 |
| Driving Voltage(VDC) | 12-24 |
| Frame Size(mm) | 28x28 |
| Body Length(mm) | 51 |
| Rear Shaft Diameter(mm) | 5 |
| Rear Shaft Length(mm) | 9.5 |
| Gearbox Specification | |
| Gearbox Type | Economy Planetary |
| Gear Ratio | 14:1 |
| Gearbox Efficiency | 80% |
| Backlash at No-load | 1.5deg |
| Gearbox Length(mm) | 36.8 |
| Output Shaft Length(mm) | 18 |
| Output Shaft Diameter(mm) | 6 |
