Size 57mm NEMA 23 Non-captive Linear Actuator Stepper Motor Single Stack 3.0A Lead 12.7mm Screw Length 200mm
- Part Number: 57LS45-3004N-200L12.7
- Lead Time: Two Weeks
- Unit Price: $75.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

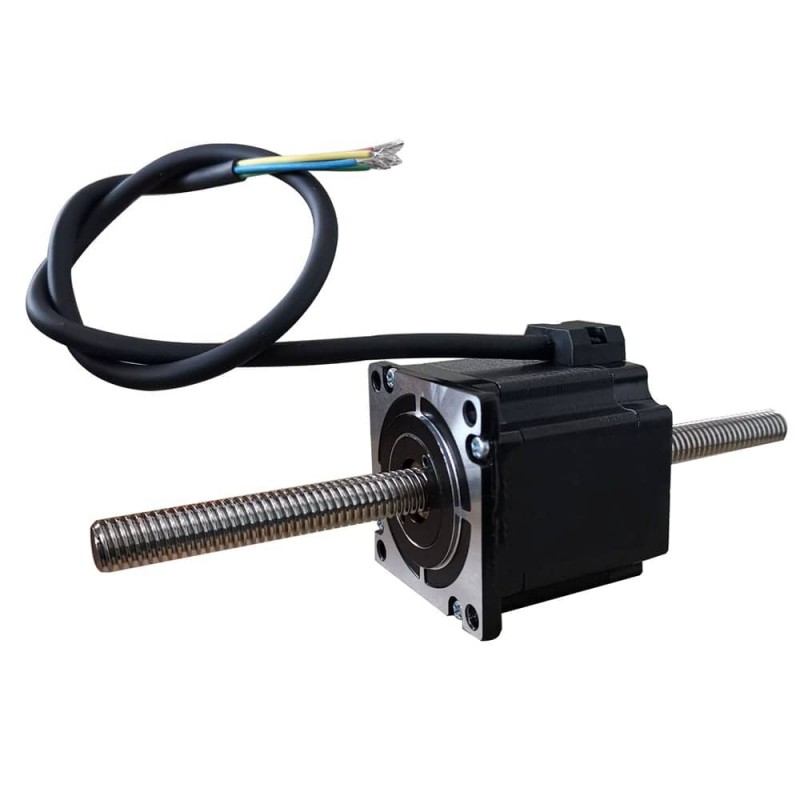

This big linear actuator engine is a NEMA 23 non-captive linear actuator with body part 45mm frame size 57mm stepper motor. It is integrated with a Φ9.525mm diameter 200mm length lead screw. The lead screw's linear travel is 12.7mm per revolution or 0.0635mm per step.
Electrical Specification
- Part Number: 57LS45-3004N-200L12.7
- Motor Type: Non-captive
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.75Nm/106.5oz.in
- Rated Current/phase: 3.0A
- Driving Voltage: 24-72V
Physical Specification
- Frame Size: 57x57mm
- Body Length: 45mm
- Lead Screw Length: 200mm
- Lead Screw Diameter: Φ9.525mm
- Lead /Step: 0.0635mm
- Lead/Revolution: 12.7mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.6kg
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.75 |
| Holding Torque(oz.in) | 106.5 |
| Rated Current(A) | 3.0 |
| Frame Size(mm) | 57x57 |
| Stack Length(mm) | 45 |
| Driving Voltage(VDC) | 24-72 |
| Lead Screw Specification | |
| Lead Screw Length(mm) | 200 |
| Lead Screw Diameter(mm) | 9.525 |
| Lead Travel/Revolution(mm) | 12.7 |
| Lead Travel/Step(mm) | 0.0635 |
