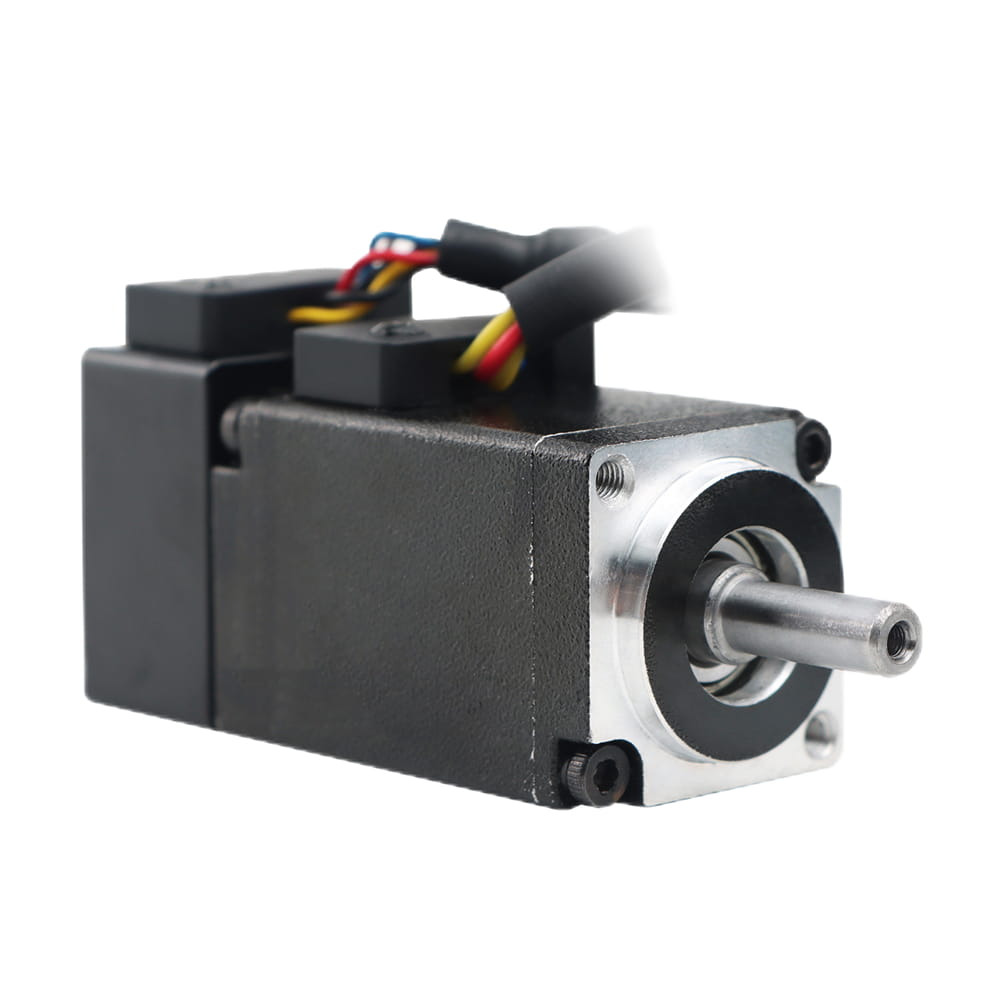

Size 25mm 10W/20W/30W/50W DC Servo Motor 48V 3000RPM 17Bit Absolute Encoder IP65
- Brand: Frankhumotor
- Part Number: DC25SM
- Lead Time: In Stock
- Unit Price: US $120.00
- *Ship from China
This small 25 mm DC servo motor series (DC25SM) delivers rated torques from 0.032 to 0.159 N·m (peak up to 0.478 N·m) at 3000 RPM, powered by 48 VDC with rated currents of 2.0–2.6 A. It features a built-in 17-bit absolute multi-turn encoder for high-precision servo control, F-class insulation, and IP65 protection, with body lengths ranging from 53 to 91 mm depending on the 10 W/20 W/30 W/50 W power model and weights of 0.2–0.5 kg. Its small 25 mm flange and high-resolution feedback make it well suited to space-critical motion axes in compact robotics, medical and laboratory instruments, semiconductor handling equipment, automated optical focusing stages, and miniature rotary actuators requiring precise positioning and environmental protection.
Size 25mm 10W/20W/30W/50W DC Servo Motor 48V 3000RPM 17Bit Absolute Encoder IP65
| Model Number | 25M000330DC48 | 25M000630DC48 | 25M000930DC48 | 25M001630DC48 |
| Rated Power(W) | 10 | 20 | 30 | 50 |
| Rated Voltage(VDC) | 48 | 48 | 48 | 48 |
| Rated Current(A) | 2.0 | 2.0 | 2.0 | 2.6 |
| Peak Current(A) | 6.0 | 6.0 | 6.0 | 7.8 |
| Rated Speed(RPM) | 3000 | 3000 | 3000 | 3000 |
| Rated Torque(N-m) | 0.032 | 0.064 | 0.096 | 0.159 |
| Peak Torque(N-m) | 0.096 | 0.192 | 0.288 | 0.478 |
| Back EMF(V/1000r/min) | 1.2 | 2.4 | 3.4 | 3.7 |
| Torque Constant(N.m/A) | 0.02 | 0.03 | 0.05 | 0.06 |
| Rotor Inertia(kg·m2) | 0.0035 x10-4 | 0.006 x10-4 | 0.0085 x10-4 | 0.012 x10-4 |
| Line-line Resistance(ohms) | 1.03 | 1.57 | 2.3 | 1.95 |
| Line-line Inductance(mH) | 0.505 | 0.83 | 1.2 | 1.05 |
| Electrical Constant(Ms) | 0.89 | 0.53 | 0.52 | 1.86 |

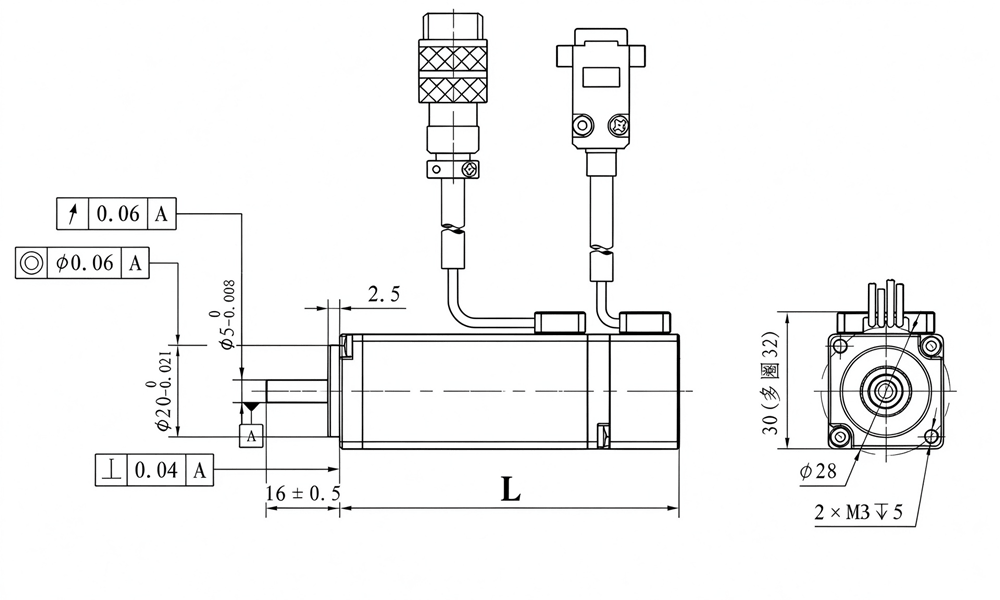

| Body Length(L)(mm) | 53 | 63 | 74 | 91 |
| Weight(kg) | 0.2 | 0.22 | 0.25 | 0.5 |
| Encoder Resolution(PPR) | 17 bit absolute multi-turn | 17 bit absolute multi-turn | 17 bit absolute multi-turn | 17 bit absolute multi-turn |
| Inlustation Class | F | F | F | F |
| Protection Level | IP65 | IP65 | IP65 | IP65 |
Contact Frankhumotor for Datasheet, 3D Step. File, Torque Curve
| Product Details | |
| Model Number | DC25SM |
| Product Type | D Servo Motor |
| Lead Time | in stock |
| Insulation Class | F |
| Protection Class | IP65 |
