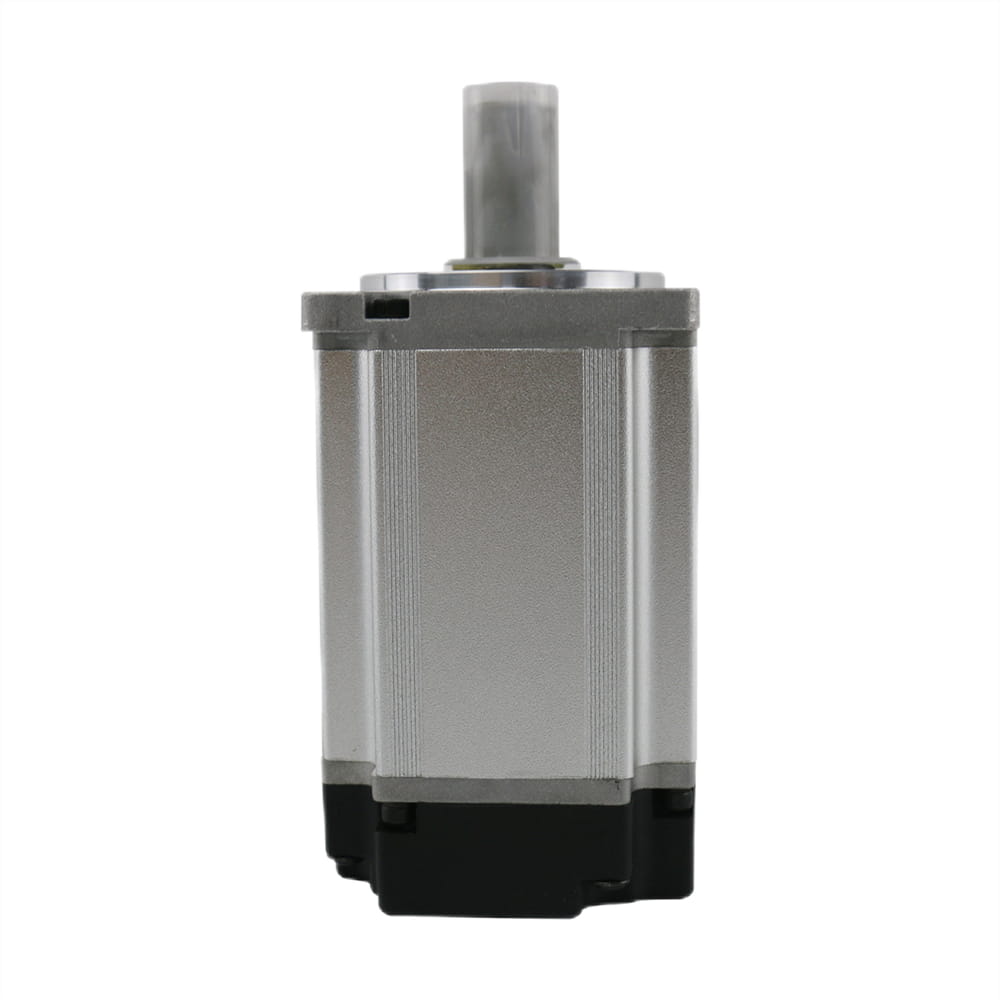

60mm 400W AC Servo Motor 220V 1.27 N-m 3000RPM 23-Bit Absolute Encoder IP65 Electromagnetic Brake
- Part Number: 60M01330BYS
- Lead Time: In Stock
- Unit Price: US $200.00
- *Ship from China
This 60 mm AC servo motor with electromagnetic brake (60M01330BYS) delivers 400 W of rated power and 1.27 N·m of rated torque (peak torque 3.81 N·m) at 3000 RPM, powered by 220 VAC with a rated current of 2.5 A. It features a built-in 23-bit absolute multi-turn encoder for precise positioning, F-class insulation, and IP65 protection, plus an integrated 24 VDC electromagnetic brake with 2.0 N·m holding torque for fail-safe position locking on power loss. The brake-equipped version measures 120 mm in body length within a 60 × 60 mm frame, with a Φ14 mm shaft (30 mm length) and a weight of 1.5 kg. Its high-resolution feedback, sealed construction, and power-off braking make it well suited to vertical-axis CNC machines, robotic joints requiring position retention during emergency stops, packaging and material handling systems, semiconductor handling equipment, and medical or laboratory automation where reliable load holding on power interruption is critical.
60mm 400W AC Servo Motor 220V 1.27 N-m 3000RPM 23-Bit Absolute Encoder IP65 Electromagnetic Brake
- Manufacturer Part Number: 60M01330B
- Rated Power: 400 W
- Rated Voltage: 220 VAC
- Rated Current: 2.5 A
- Rated Speed: 3000 RPM
- Rated Torque: 1.27 N-m
- Peak Torque: 3.81 N-m
- Peak Current: 7.4 A
- Back EMF Constant: 31.2 V/krpm
- Torque Constant: 0.5 N-m/A
- Electrical Constant: 1.66 Ms
- Line-line Resistance: 3.5 ohms
- Line-line Inductance: 5.8 mH
- Rotor Inertia: 0.52x10-4 kg·m2
- Encoder: 23-Bit Absolute Multi-turn
- Insulation Class: F
- Protection Level: IP65
- Poles Number: 10
- Brake Torque: 2.0 N-m
- Brake Voltage: 24 VDC
- Frame Size: 60x60 mm
- Body Length: 120 mm
- Shaft Diameter: Φ14 mm
- Shaft Length: 30 mm
- Weight: 1.5 kg
Contact Frankhumotor for Datasheet, 3D Step. File, Torque Curve
| Product Details | |
| Model Number | 60M01330BYS |
| Product Type | AC Servo Motor |
| Lead Time | in stock |
| Insulation Class | F |
| Protection Class | IP65 |
| Servo Electrical Specification | |
| Rated Voltage(VAC) | 220 |
| Rated Current(A) | 2.5 |
| Rated Power(W) | 400 |
| Rated Speed(RPM) | 3000 |
| Rated Torque(N·m) | 1.27 |
| Encoder Type | Absolute |
| Encoder Resolution(PPR) | 23-Bit |
| With Brake | Yes |
| Servo Physical Specification | |
| Frame Size(mm) | 60x60 |
| Body Length(mm) | 120 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 30 |
| Weight(KG) | 1.5 |
LA=120mm
