NEMA 14 Closed-loop External Linear Actuator Stepper Motor 34mm Stack 1.95A Lead 12mm 1000CPR Encoder
- Part Number: 35AI34-1954E-120L812E
- Lead Time: In Stock
- Unit Price: $80.00
- Sales: 13
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

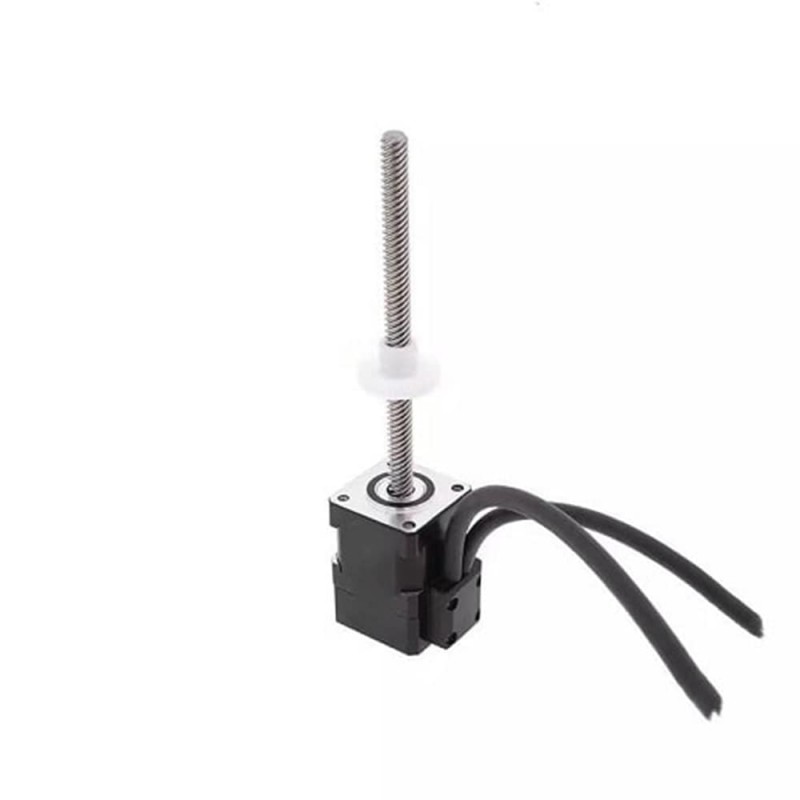

This NEMA 14 external linear actuator stepper motor with body length 34mm is integrated with Φ8mm lead screw & a POM screw nut moving along the threaded rod. The lead travel is 12mm per revolution or 0.06mm per step. A incremental optical encoder with 1000cpr resolutions is installed onto the motor back.
Electrical Specification
- Part Number: 35AI34-1954E-120L812E
- Motor Type: External
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.22Nm//31.24oz.in
- Rated Current/phase: 0.95A
- Driving Voltage: 12-24V

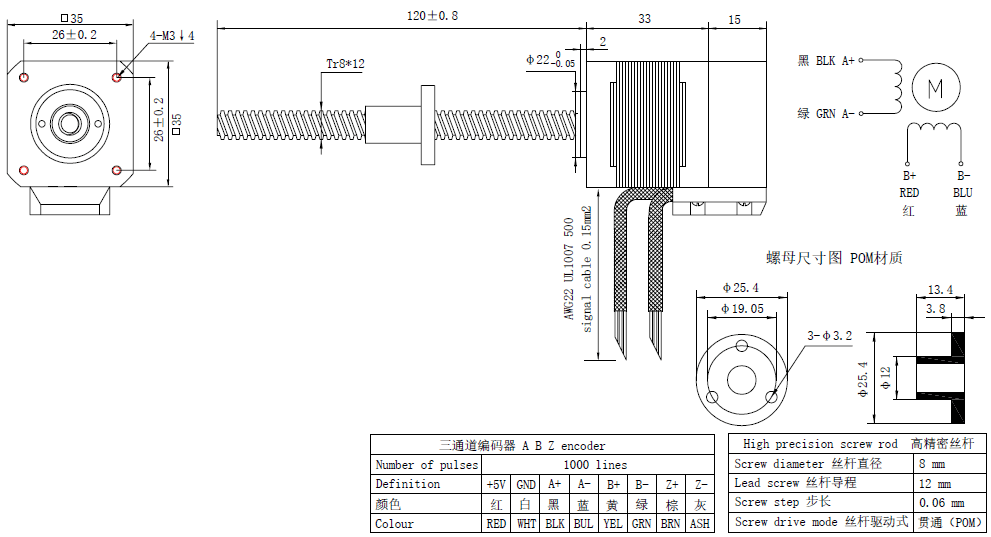

Physical Specification
- Frame Size: 35x35mm
- Body Length: 34mm
- Lead Screw Length: 120mm
- Lead Screw Diameter: Φ8mm
- Lead Travel/Step: 0.06mm
- Lead Travel/Revolution: 12mm
- Number of Leads: 4
- Lead Length: 500mm
Encoder Specification
- Encoder Type: Incremental
- Encoder Resolution: 1000CPR
- Encoder Signal Channels: 3
- No. of Leads: 8
- Lead Length: 500mm
- Supply Voltage: 5.0V
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.22 |
| Holding Torque(oz.in) | 31.24 |
| Frame Size(mm) | 35x35 |
| Overall Length(mm) | 48 |
| Driving Voltage(VDC) | 12-24 |
| Encoder Specification | |
| Encoder Resolution(CPR) | 1000 |
| Encoder Type | Incremental |
| Supply Voltage(VDC) | 5.0 |
| Lead Screw Specification | |
| Lead Screw Length(mm) | 120 |
| Lead Screw Diameter(mm) | 8 |
| Lead Travel/Revolution(mm) | 12 |
| Lead Travel/Step(mm) | 0.06 |
