NEMA 8 Stepper Motor Bipolar 1.8deg 0.6A 0.02Nm/2.84oz.in 20x33mm 4 Leads
- Part Number: 20HS33-0604D20
- Lead Time: In Stock
- Unit Price: $15.00
- Sales: 13
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

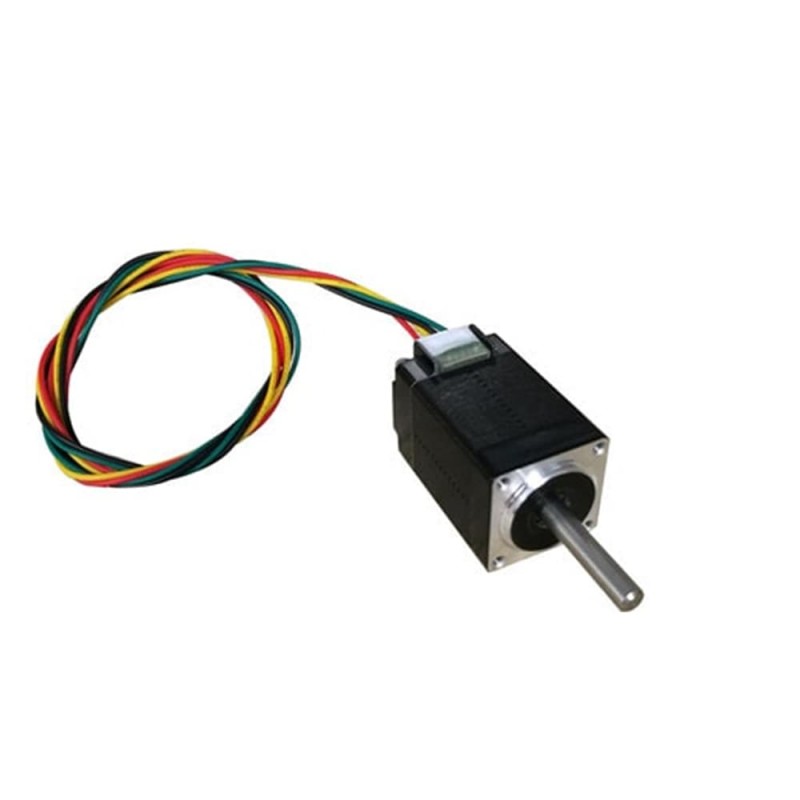

This small hybrid bipolar stepping motor has a 1.8° step angle(200 steps/revolution). Each phase draws current 0.6A, allowing for a holding torque of 0.02/2.84oz.in. The mounting frame is 16x16mm and a length 400mm cable with plug connector is available.
Electrical Specification
- Part Number: 20HS33-0604D20
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.02Nm/2.84oz.in
- Rated Current/phase: 0.6A
- Phase Resistance: 6.5ohms
- Inductance: 2.2mH
- Driving Voltage: 12-24VDC

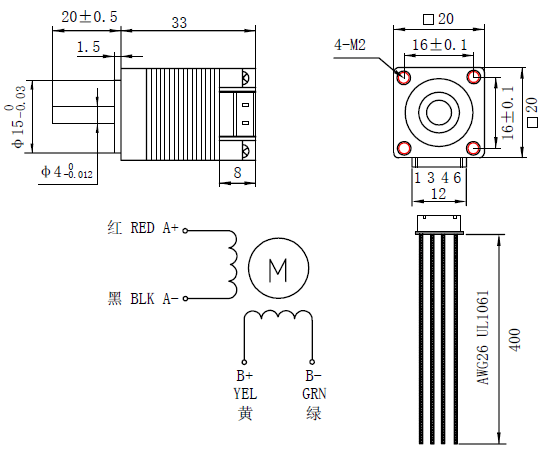

Physical Specification
- Frame Size: 20x20mm
- Body Length: 33mm
- Shaft Type: Round
- Shaft Diameter: Φ4mm
- Shaft Length: 20mm
- Number of Leads: 4
- Lead Length: 400mm
- Weight: 0.08kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 0.02 |
| Holding Torque(oz.in) | 2.84 |
| Rated Current(A) | 0.6 |
| Phase Resistance(ohm) | 2.2 |
| Phase Inductance(mH) | 6.5 |
| Physical Specification | |
| Frame Size(mm) | 20x20 |
| Body Length(mm) | 33 |
| Shaft Type | Round |
| Shaft Diameter(mm) | 4 |
| Shaft Length(mm) | 20 |
| No. of Leads | 4 |
| Lead Length(mm) | 400 |
| Weight(KG) | 0.08 |
