NEMA 8 Closed Loop Stepper Motor 0.04Nm 1000PPR Encoder & Gear Ratio 4.25:1 Planetary Gearbox
- Part Number: 20HB38-0604E-PG5
- Lead Time: In Stock
- Unit Price: $88.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

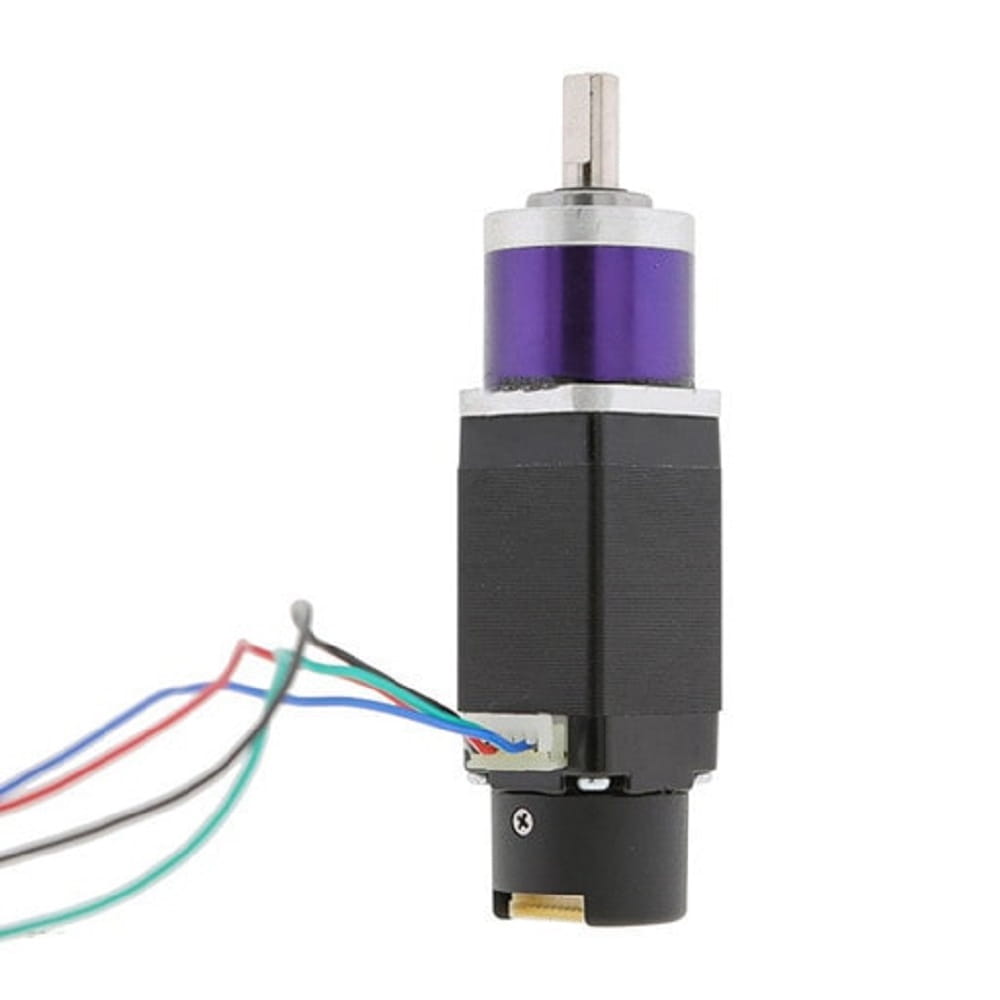

This size 20mm NEMA 8 stepper motor with 38mm body length has a holding torque 0.04Nm, which is combined with a 1000PPR incremental optical encocer & a gear ratio 4.25:1 economy planetary gearbox. It is absolutely an ideal solution the applications require closed loop control and low speed/high torque output.

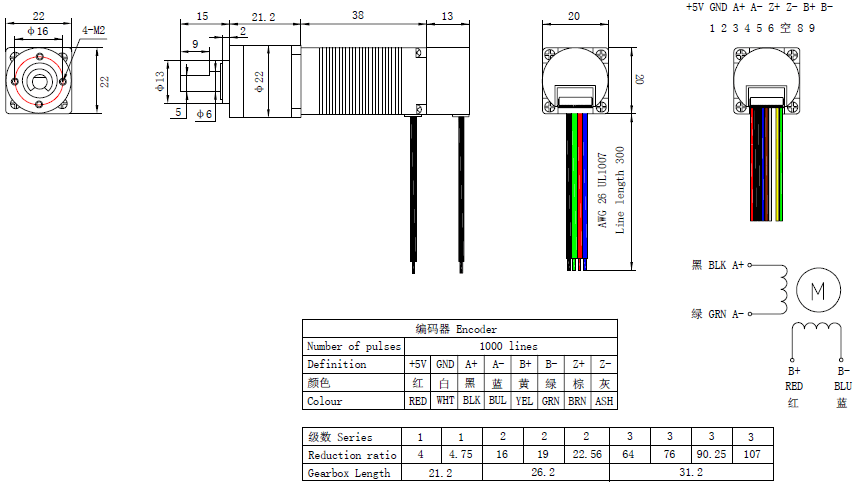

Motor Specification
- Part Number: 20HB38-0604E-PG5
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.04Nm
- Rated Current/phase: 0.6A
- Driving Voltage: 12-24V
- Frame Size: 20x20mm
- Body Length: 38mm
- Number of Leads: 4
- Lead Length: 300mm
Gearbox Specification
- Gearbox Type: Planetary
- Gear Ratio: 4.25:1
- Efficiency: 90%
- Backlash at No-load: <=1.0deg
- Gearbox Length: 21.2mm
- Shaft Diameter: Φ6mm
- Shaft Length: 15mm
- D-cut Length: 9mm
Encoder Specification
- Encoder Type: Incremental
- Encoder Resolution: 1000PPR
- Encoder Signal Channels: 3
- No. of Leads: 8
- Lead Length: 300mm
- Supply Voltage: 5.0V
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.04 |
| Holding Torque(oz.in) | 5.68 |
| Rated Current(A) | 0.6 |
| Frame Size(mm) | 20x20 |
| Body Length(mm) | 38 |
| Driving Voltage(VDC) | 12-24 |
| Gearbox Specification | |
| Gearbox Type | Planetary |
| Gear Ratio | 4.25:1 |
| Efficiency | 90% |
| Backlash at No-load | 1.0deg |
| Gearbox Length(mm) | 21.2 |
| Shaft Diameter(mm) | 6 |
| Shaft Length(mm) | 15 |
| Encoder Specification | |
| Encoder Resolution(PPR) | 1000 |
| Encoder Type | Incremental |
| Supply Voltage(VDC) | 5.0 |
