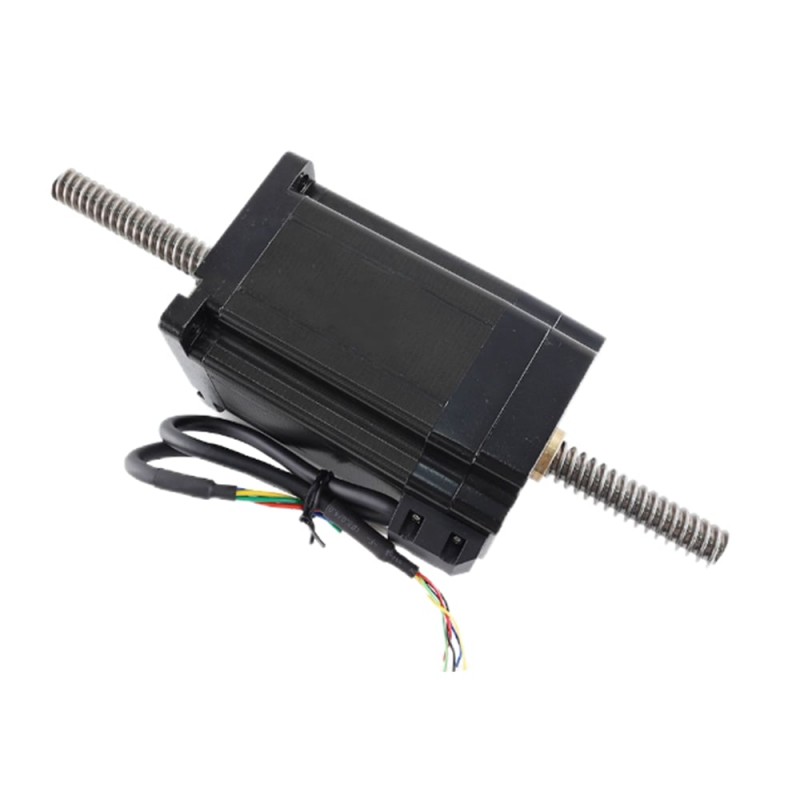

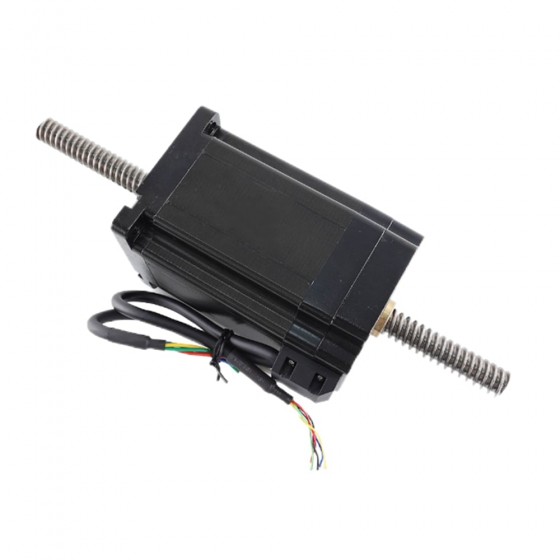

NEMA 34 Non-captive Linear Actuator Closed-loop Stepper Motor Stack 118mm Lead 4mm with 1000CPR Encoder
- Part Number: 86LS118-6004N-300L164E
- Lead Time: In Stock
- Unit Price: $175.00
- Sales: 3
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This big size 86 Non-captive linear actuator with body part 118mm NEMA 34 closed-loop stepper motor is integrated with a diameter Φ16mm lead screw length 300mm. And the lead travel is 4mm per revolution/0.02mm per step. A 1000cpr incremental encoder is assembled for closed loop servp control.
Electrical Specification
- Part Number: 86LS118-6004N-300L164E
- Motor Type: Non-captive
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 8.0Nm/1136oz.in
- Rated Current/phase: 6.0A
- Driving Voltage: 24-110V
Physical Specification
- Frame Size: 86x86mm
- Body Length: 118mm
- Lead Screw Length: 300mm
- Lead Screw Diameter: Φ16mm
- Lead /Step: 0.02mm
- Lead/Revolution: 4mm
- Number of Leads: 4
- Lead Length: 500mm
Encoder Specification
- Encoder Type: Incremental
- Encoder Resolution: 1000CPR
- Encoder Signal Channels: 2
- No. of Leads: 6
- Lead Length: 500mm
- Supply Voltage: 5.0V
Contact Us
| Motor Specification | |
| Motor Type | Non-captive |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 8 |
| Holding Torque(oz.in) | 1136 |
| Rated Current(A) | 6.0 |
| Frame Size(mm) | 86x86 |
| Stack Length(mm) | 118 |
| Encoder Specification | |
| Encoder Resolution(CPR) | 1000 |
| Encoder Type | Incremental |
| Supply Voltage(VDC) | 5.0 |
| Lead Screw Specification | |
| Lead Screw Length(mm) | 300 |
| Lead Screw Diameter(mm) | 16 |
| Lead Travel/Revolution(mm) | 4 |
| Lead Travel/Step(mm) | 0.02 |
