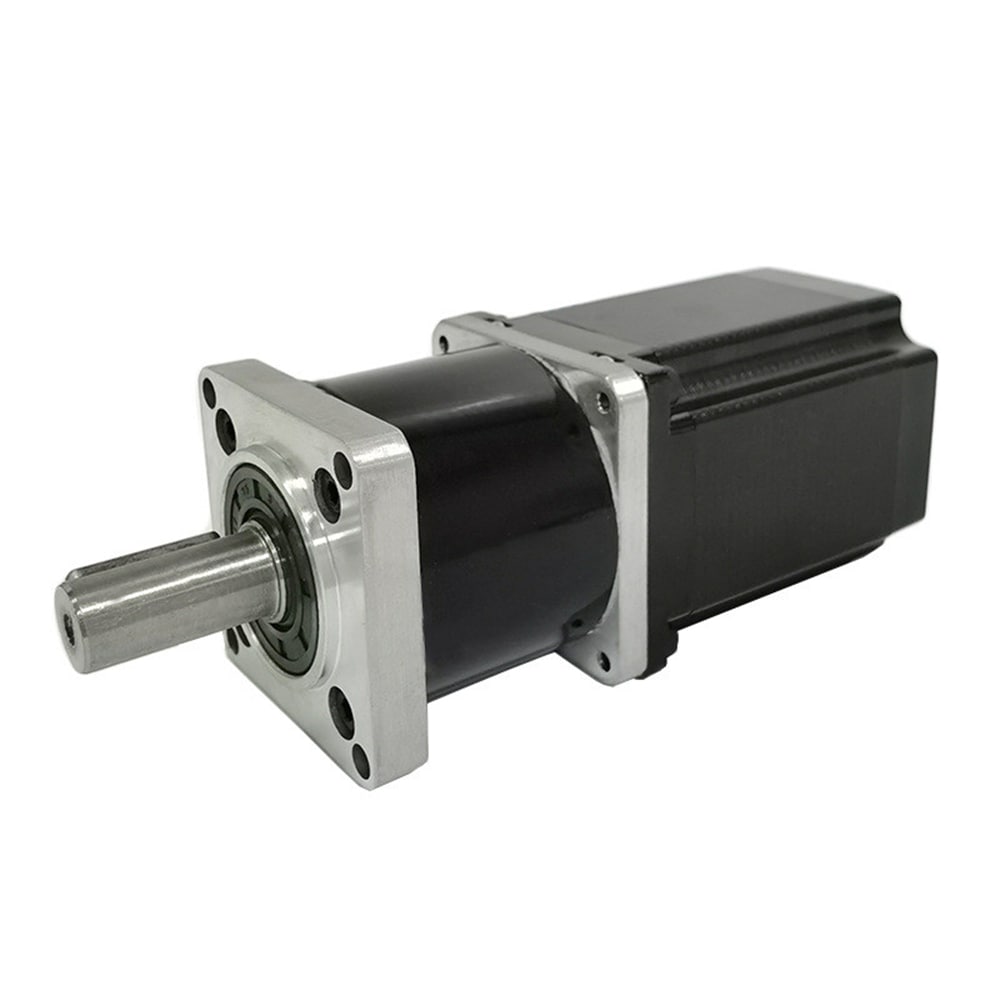

NEMA 34 Geared Stepper Motor L=76mm 5.0A with Reduction Ratio 50:1 Precision 25arcmin Planetary Gearbox
- Part Number: 86HS76-5004S-HG50
- Lead Time: Two Weeks
- Unit Price: $129.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This NEMA 34 geared reduction stepper motor has a body length 76mm and 5.0A rated current and is integrated with a precision short planetary gearbox of 50:1 gear ratio. It's an ideal solution to applications that require limited mounting space but need low speed or high torque & precision positioning.
Motor Specification
- Part Number: 86HS76-5004S-HG50
- Step Angle: 1.8deg w/o gearbox
- Bi/Unipolar: Bipolar
- Holding Torque: 4.5Nm w/o gearbox
- Rated Current: 5.0A
- Driving Voltage: 24-110V
- Motor Length: 76mm
- Number of Leads: 4
- Lead Length: 500mm
Gearbox Specification
- Gearbox Type: Planetary
- Gear Ratio: 50:1
- Efficiency: 94%
- Backlash at No-loaded: 25arcmin
- Rated Torque: 80Nm
- Gearbox Length: 87mm
- Shaft Diameter: Φ16mm
- Shaft Length: 35mm
- Keyway length: 25mm
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 4.5 |
| Holding Torque(oz.in) | 639 |
| Rated Current(A) | 5.0 |
| Frame Size(mm) | 86x86 |
| Body Length(mm) | 76 |
| Driving Voltage(VDC) | 24-110 |
| Gearbox Specification | |
| Gearbox Type | Planetary |
| Gear Ratio | 50:1 |
| Efficiency | 94% |
| Backlash at No-load | 25arcmin |
| Gearbox Length(mm) | 87 |
| Shaft Diameter(mm) | 16 |
| Shaft Length(mm) | 35 |
L=163mm
