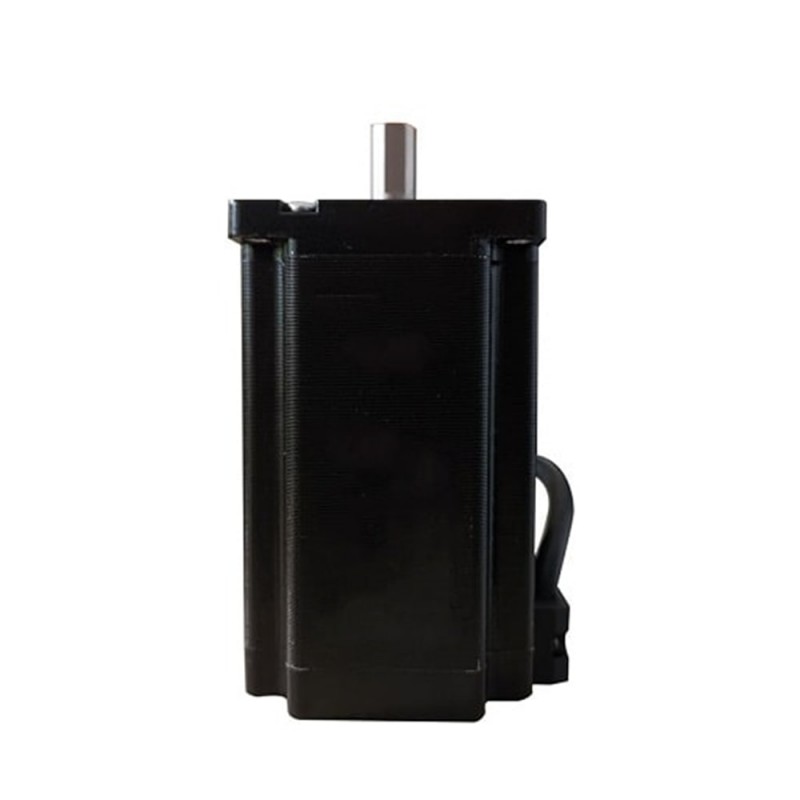

NEMA 24 Stepper Motor Bipolar 1.8deg 5.0A 4.0Nm/568oz.in 60x100mm Φ10mm Shaft
- Part Number: 60HS100-5004S
- Lead Time: In Stock
- Unit Price: $35.00
- Sales: 19
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This strong electric dc motor is bipolar NEMA 24 stepper motor with step angle 1.8deg and 100mm body length. It has 4 wires, each phase drawing 5.0A and holding torque 4.0Nm/568oz.in.
Electrical Specification
- Part Number: 60HS100-5004S
- Step Angle: 1.8deg
- Bi/unipolar: Bipolar
- Holding Torque: 4.0Nm/568oz.in
- Rated Current/phase: 5.0A
- Phase Resistance: 0.48ohms
- Inductance: 1.85mH
- Driving Voltage: 24-72V

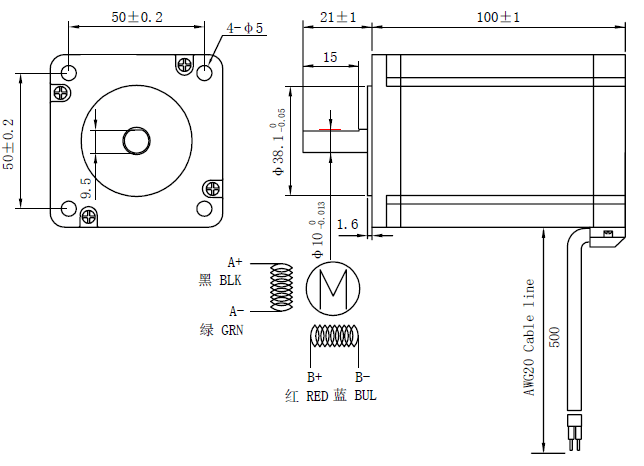

Physical Specification
- Frame Size: 60x60mm
- Body Length: 100m
- Shaft Diameter: Φ10mm
- Shaft Length: 21mm
- D-cut Length: 15mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 1.7kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 4.0 |
| Holding Torque(oz.in) | 568 |
| Rated Current(A) | 5.0 |
| Phase Resistance(ohm) | 0.48 |
| Phase Inductance(mH) | 1.85 |
| Driving Voltage(VDC) | 24-72 |
| Physical Specification | |
| Frame Size(mm) | 60x60 |
| Body Length(mm) | 100 |
| Shaft Type | D-cut |
| Shaft Diameter(mm) | 10 |
| Shaft Length(mm) | 21 |
| No. of Leads | 4 |
| Lead Length(mm) | 500 |
| Weight(KG) | 1.7 |
