Size 57mm NEMA 23 Linear Actuator Non-captive Stepper Motor 76mm Stack 4.2A Lead 10mm Screw Length 200mm
- Part Number: 57HS76-4204N-200L1010
- Lead Time: In Stock
- Unit Price: $59.90
- Sales: 3
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This non-captive linear actuator electric motor is one size 57mm NEMA 23 linear motion stepper motor with a 76mm body length, 1.8 degree step angle and 4.2A rated current. It is integrated with a 10mm diameter lead screw & lead 10mm per revolution/0.05mm per step, and lead screw length is 200mm.
Electrical Specification
- Part Number: 57HS76-4204N-200L1010
- Motor Type: Non-catpive Linear Stepper
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 1.8Nm/255.6oz.in
- Rated Current/phase: 4.0A
- Driving Voltage: 24-60V

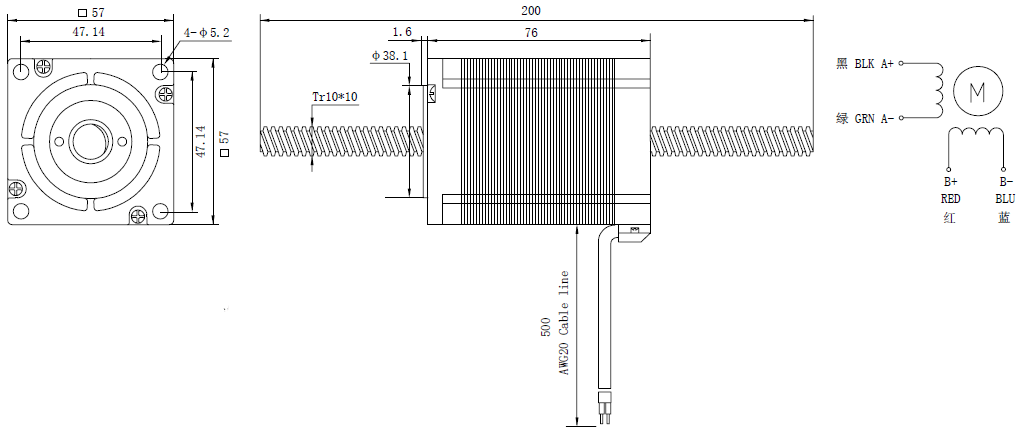

Physical Specification
- Frame Size: 57x57mm
- Motor Length: 76mm
- Lead Screw Length: 200mm
- Lead Screw Diameter: Φ10mm
- Lead Screw/Step: 0.05mm
- Lead Screw/Revolution: 10mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 1.2KG
Contact Us
| Motor Specification | |
| Motor Type | Non-captive Linear Stepper |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 1.8 |
| Holding Torque(oz.in) | 255.6 |
| Rated Current(A) | 4.2 |
| Frame Size(mm) | 57x57 |
| Stack Length(mm) | 76 |
| Driving Voltage(VDC) | 24-60 |
| Lead Screw Specification | |
| Lead Screw Length(mm) | 200 |
| Lead Screw Diameter(mm) | 10 |
| Lead Travel/Revolution(mm) | 10 |
| Lead Travel/Step(mm) | 0.05 |
