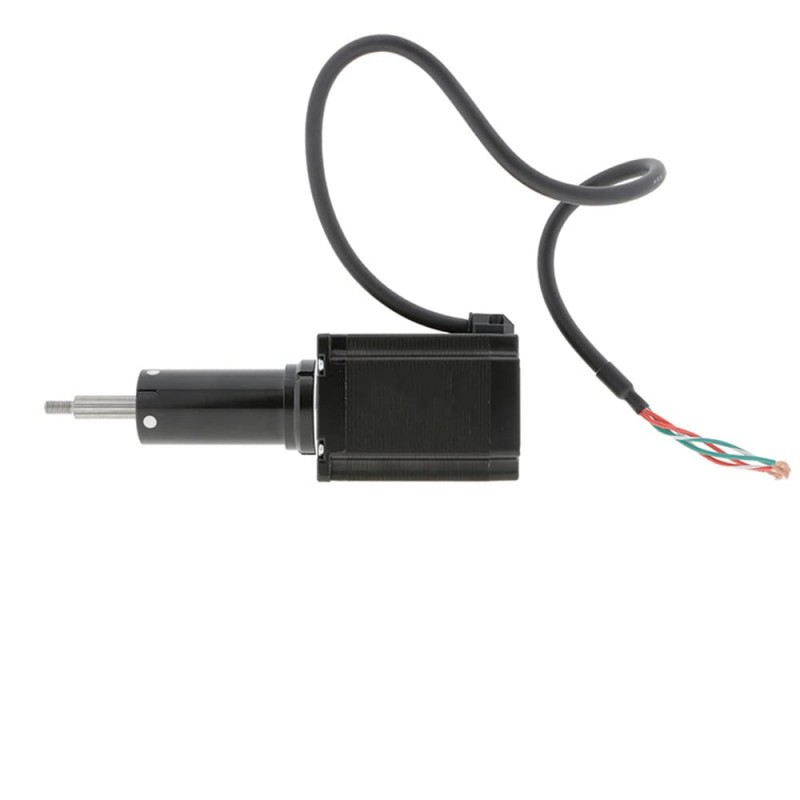

NEMA 23 Captive Linear Actuator Stepper Motor 56mm Stack 3.0A Lead 1.27mm Travel 38.1mm
- Part Number: 57LS56-3004C-3810
- Lead Time: Two Weeks
- Unit Price: $120.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This captive linear actuator electric motor is a size 57mm NEMA 23 linear motion stepper motor with a 56mm body length, 1.8 degree step angle and 3.0A rated current. It is integrated with a Φ9.525mm diameter lead screw & lead 1.27mm per revolution or 0.00635mm per step, and the maximum linear travel/stroke length is 38.1mm.
Electrical Specification
- Part Number: 57LS56-3004C-3810
- Motor Type: Captive Linear Stepper
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 1.2Nm/170.4oz.in
- Rated Current/phase: 3.0A
- Driving Voltage: 24-72V
Physical Specification
- Frame Size: 57x57mm
- Motor Length: 56mm
- Linear Travel Length: 38.1mm
- Lead Screw Diameter: Φ9.525mm
- Lead Screw/Step: 0.00635mm
- Lead Screw/Revolution: 1.27mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.8KG
Contact Us
| Motor Specification | |
| Motor Type | Captive Linear Stepper |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 1.2 |
| Holding Torque(oz.in) | 170.4 |
| Rated Current(A) | 3.0 |
| Frame Size(mm) | 57x57 |
| Stack Length(mm) | 56 |
| Driving Voltage(VDC) | 24-72 |
| Lead Screw Specification | |
| Travel Distance(mm) | 38.1 |
| Lead Screw Diameter(mm) | 9.525 |
| Lead Travel/Revolution(mm) | 1.27 |
| Lead Travel/Step(mm) | 0.00635 |
