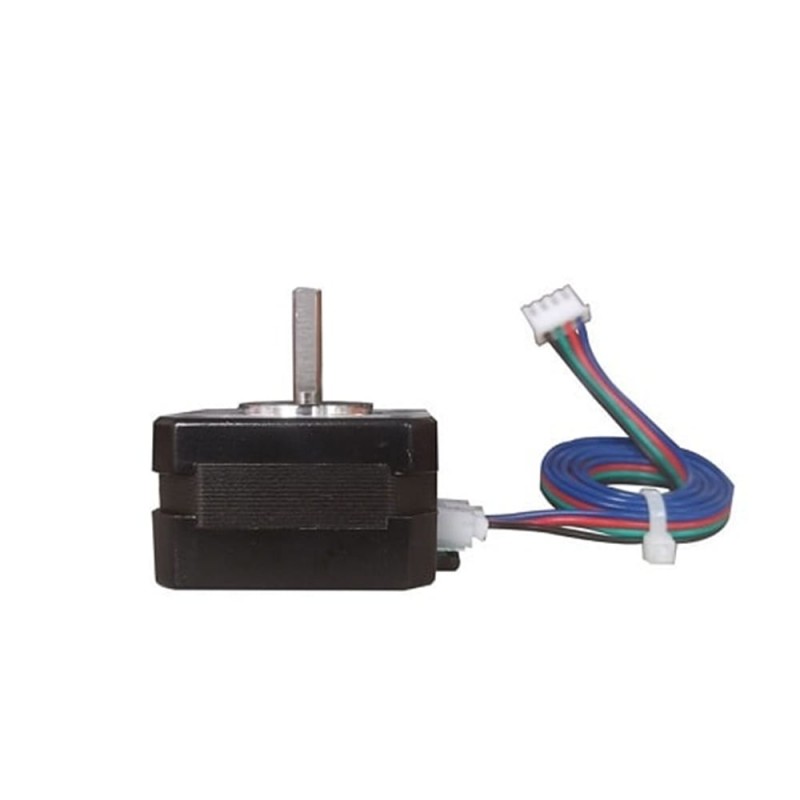

NEMA 17 Stepper Motor Bipolar 0.9deg 1.4A 0.18Nm/25.56oz.in 42x26mm 4 Leads
- Part Number: 42HM26-1404S
- Lead Time: In Stock
- Unit Price: US $15.00
- Sales: 8
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This bipolar NEMA 17 stepper motor has step angle 0.9deg(400 steps per revolution) with 26mm body length, each phase draws 1.4A with holding torque 0.18Nm/25.56oz.in, and it can be driven by 12-24VDC voltage for a good torque output with speed 0-1000RPM.
Electrical Specification
- Manufacturer Part Number: 42HM26-1404S
- Step Angle: 0.9deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.18Nm/25.56oz.in
- Rated Current/phase: 1.4A
- Phase Resistance: 2.4ohms
- Inductance: 5.5mH
- Driving Voltage: 12-24V

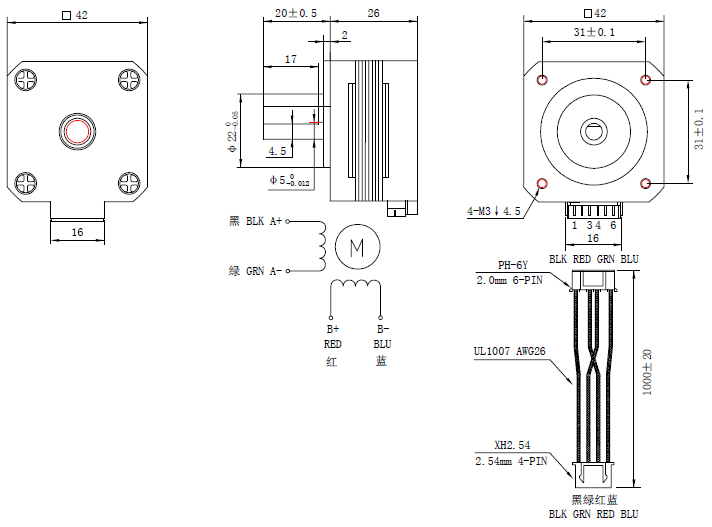

Physical Specification
- Frame Size: 42x42mm
- Body Length: 26mm
- Shaft Diameter: Φ5mm
- Shaft Length: 20mm
- D-cut Length: 17mm
- Number of Leads: 4
- Lead Length: 00mm
- Weight: 0.24kg
Connection
- Black: A+, Green: A-, Red: B+, Blue: B-
Contact Us
| Product Details | |
| Model Number | 42HM26-1404S |
| Product Type | Hybrid Stepper |
| Lead Time | in stock |
| Stepper Electrical Specification | |
| Step Angle(deg.) | 0.9 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.18 |
| Holding Torque(oz.in) | 25.56 |
| Rated Current(A) | 1.4 |
| Driving Voltage(VDC) | 12-24 |
| Insulation Class | B |
| Stepper Physical Specification | |
| Protective Grade | IP20 |
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 26 |
| Output Shaft Type | D-cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 20 |
| No. of Leads | 4 |
| Lead Length(mm) | 1000 |
| Weight(KG) | 0.24 |
