Size 42mm NEMA 17 Linear Actuator Non-captive Stepper Motor Single Stack 1.5A Lead 2.54mm Screw Length 200mm
- Part Number: 42HS34-1504N-200L2.54
- Lead Time: One Week
- Unit Price: $39.90
- Sales: 12
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2

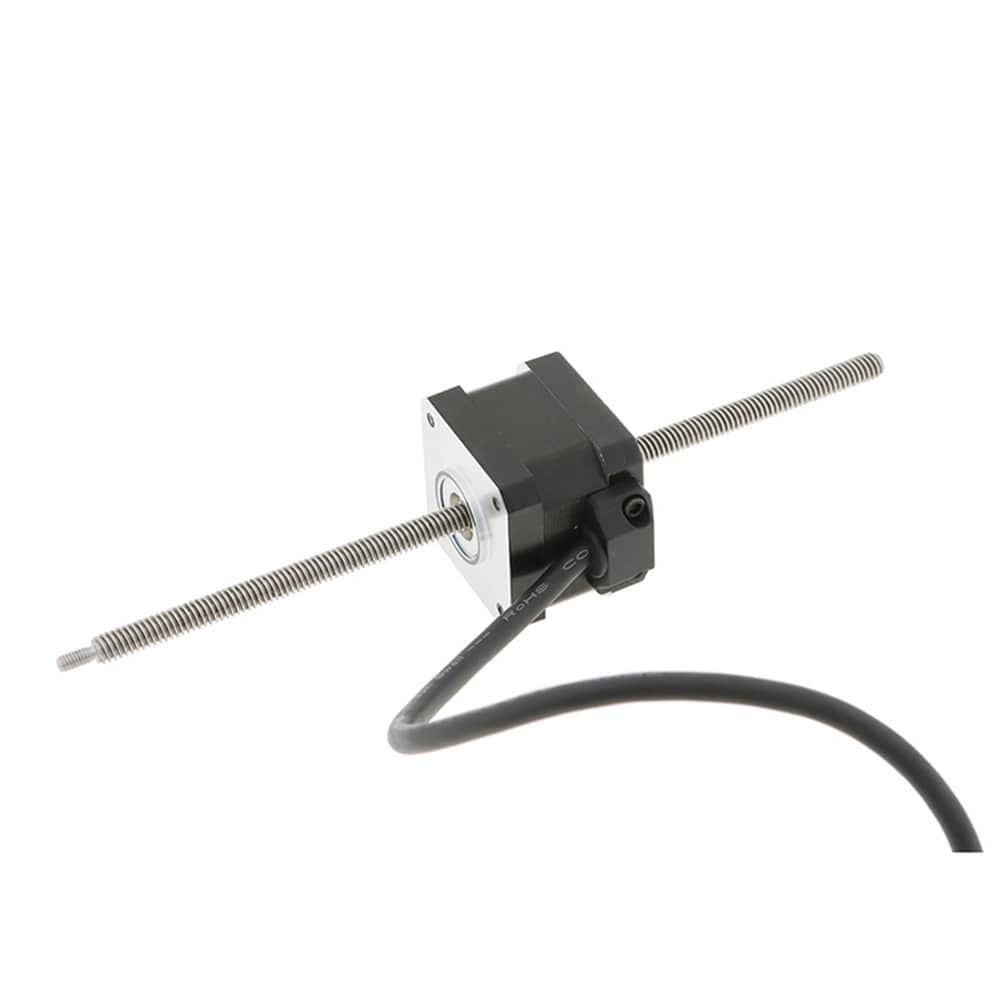

This non-captive linear actuator electric motor is one size 42mm NEMA 17 linear motion stepper motor with a single stack/34mm body length, 1.8 degree step angle and 1.5A rated current. It is integrated with a 6.35mm diameter lead screw & lead 2.54mm per revolution/0.0127mm per step and a lead screw length is 200mm.
Electrical Specification
- Part Number: 42HS34-1504N-200L2.54
- Motor Type: Noncaptive Linear Stepper
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.3Nm/42.6oz.in
- Rated Current/phase: 1.5A
- Driving Voltage: 12-36V

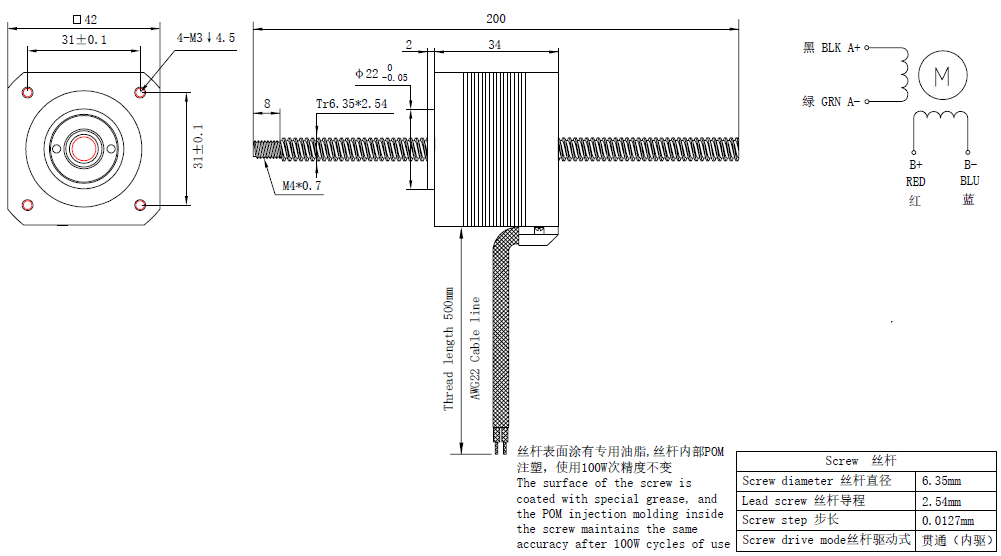

Physical Specification
- Frame Size: 42x42mm
- Motor Length: 34mm
- Lead Screw Length: 200mm
- Lead Screw Diameter: Φ6.35mm
- Lead Screw/Step: 0.0127mm
- Lead Screw/Revolution: 2.54mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 0.25KG
Contact Us
| Motor Specification | |
| Motor Type | Non-captive Linear Stepper |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.3 |
| Holding Torque(oz.in) | 42.6 |
| Rated Current(A) | 1.5 |
| Frame Size(mm) | 42x42 |
| Stack Length(mm) | 34 |
| Driving Voltage(VDC) | 12-36 |
| Lead Screw Specification | |
| Lead Screw Length(mm) | 200 |
| Lead Screw Diameter(mm) | 6.35 |
| Lead Travel/Revolution(mm) | 2.54 |
| Lead Travel/Step(mm) | 0.0127 |
