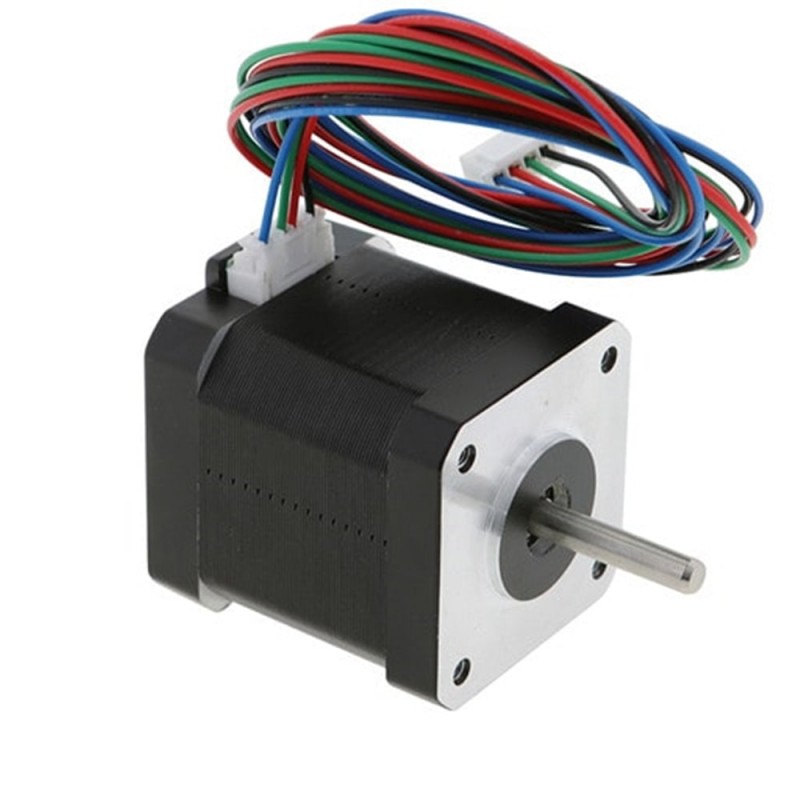

NEMA 17 High Temperature Stepper Motor 1.8deg 0.6Nm/85.2oz.in Insulation Class H
- Part Number: 42HS48-2004GW
- Lead Time: In Stock
- Unit Price: $30.00
- Sales: 13
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This custom-made high temperature Insulation Class H NEMA 17 stepper motor is designed for 3D printers. It offers a 1.8 degree step angle and high torque 0.6Nm/85.2oz.in with a 48mm body length for use in environments up to 180C.
Electrical Specification
- Part Number: 42HS48-2004GW
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.6Nm/85.2oz.in
- Rated Current/phase: 2.0A
- Phase Resistance: 1.4ohms
- Inductance: 3.0mH
- Driving Voltage: 12-24VDC
- Insulation Class: H

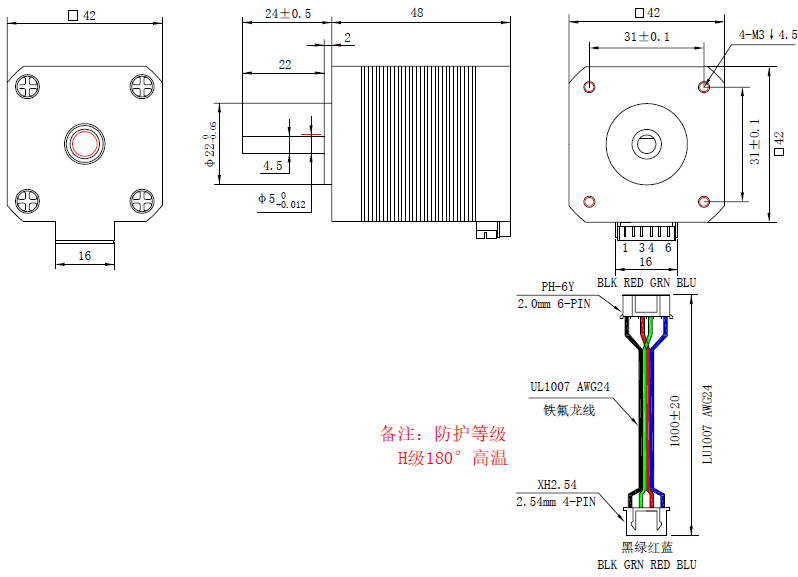

Physical Specification
- Frame Size: 42x42mm
- Body Length: 48mm
- Shaft Diameter: Φ5mm
- Shaft Length: 24mm
- Number of Leads: 4
- Lead Length: 1000mm
- Weight: 0.4kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 0.6 |
| Holding Torque(oz.in) | 85.2 |
| Rated Current(A) | 2.0 |
| Phase Resistance(ohm) | 1.4 |
| Phase Inductance(mH) | 3.0 |
| Driving Voltage(VDC) | 12-24 |
| Physical Specification | |
| Frame Size(mm) | 42x42mm |
| Body Length(mm) | 48 |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| No. of Leads | 4 |
| Lead Length(mm) | 1000 |
| Weight(KG) | 0.4 |
