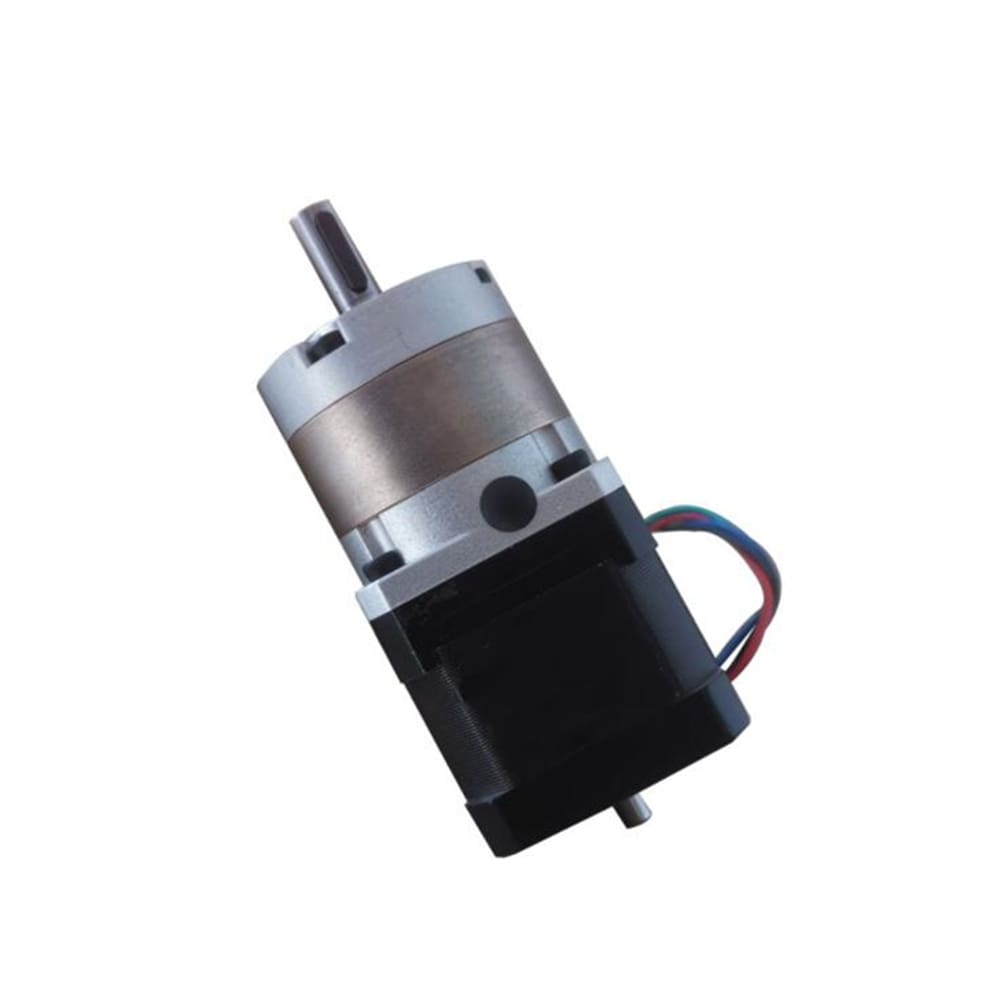

NEMA 17 Double Shaft Stepper Motor Gear Ratio 10:1 Precision Planetary Gearbox with Rear Shaft
- Part Number: 42HS40-1684B-KGS10
- Lead Time: In Stock
- Unit Price: $50.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This NEMA 17 dual shaft stepper motor has a body length 40mm and 1.68A rated current, integrated with a precision planetary gearbox of 10:1 gear ratio, which generates a strong holding torque otuput upto 4.3Nm/610.6oz.in & a low speed 0-100rpm. A length of 9.5mm rear shaft is available.
Motor Specification
- Part Number: 42HS40-1684B-KGS10
- Step Angle: 1.8deg without gearbox
- Bi/Unipolar: Bipolar
- Holding Torque: 0.45Nm without gearbox
- Rated Current/phase: 1.68A
- Driving Voltage: 12-36V
- Frame Size: 42x42mm
- Motor Length: 40mm
- Rear Shaft Diameter: Φ5mm
- Rear Shaft Length: 9.5mm
- Number of Leads: 4
- Lead Length: 500mm
Gearbox Specification
- Gearbox Type: Planetary
- Gear Ratio: 10:1
- Efficiency: 96%
- Backlash at No-load: <=15arcmin
- Gearbox Length: 40mm
- Shaft Diameter: Φ8mm
- Shaft Length: 21.5mm
- Keyway Length: 15mm
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.45 |
| Holding Torque(oz.in) | 63.9 |
| Rated Current(A) | 1.68 |
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 40 |
| Rear Shaft Diameter(mm) | 5 |
| Rear Shaft Length(mm) | 9.5 |
| Driving Voltage(VDC) | 12-36 |
| Gearbox Specification | |
| Gearbox Type | Planetary |
| Gear Ratio | 10:1 |
| Efficiency | 96% |
| Backlash at No-load | 15arcmin |
| Gearbox Length(mm) | 40 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 21.5 |
