NEMA 17 Closed-loop Servo Stepper Motor with 1000PPR Encoder & Gear Ratio 10:1 Planetary Gearbox & Electromagnetic Brake
- Part Number: 42HS40-2004E-YS-KGS10
- Lead Time: In Stock
- Unit Price: $110.00
- Sales: 2
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

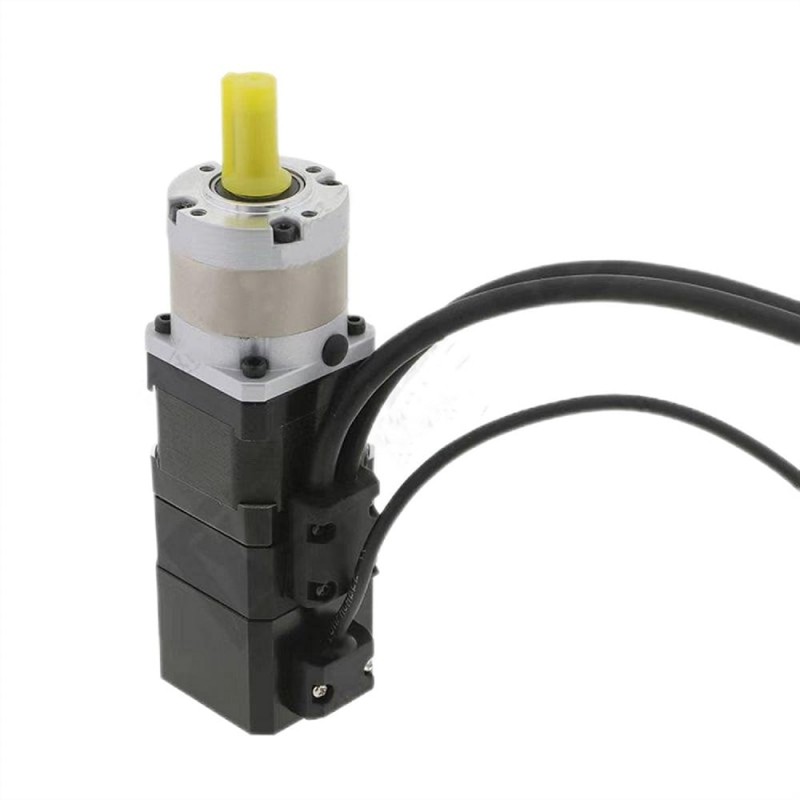

This compact size 42mm NEMA 17 stepper motor 1.8deg step angle with 48mm body length has a good torque output 0.45Nm/63.9oz.in, which is combined with a 1000PPR incremental optical encocer & a gear ratio of 10:1 high-precision planetary gearbox & 24V DC electromagnetic brake. It is absolutely an ideal solution the applications require closed-loop servo control and low speed/high torque output and vertical working.
Motor Specification
- Part Number: 42HS40-2004E-YS-KGS10
- Step Angle: 1.8deg without gearbox
- Bi/Unipolar: Bipolar
- Holding Torque: 0.45Nm/63.9oz.in without gearbox
- Rated Current/phase: 2.0A
- Driving Voltage: 12-24V
- Frame Size: 42x42mm
- Body Length: 40mm
- Number of Leads: 4
- Lead Length: 500mm
Gearbox Specification
- Gearbox Type: Planetary
- Gear Ratio: 10:1
- Efficiency: 96%
- Backlash at No-load: <=15arcmin
- Gearbox Length(L): 40mm
- Shaft Diameter: Φ8mm
- Shaft Length: 21.5mm
- Keyway Length: 14mm
Encoder Specification
- Encoder Type: Incremental
- Encoder Resolution: 1000PPR
- Encoder Signal Channels: 2
- No. of Leads: 6
- Lead Length: 500mm
- Supply Voltage: 5.0V
Brake Specifiation
- Brake Type: Electromagnetic
- Brake Voltage: 24VDC
- Brake Torque: 0.6Nm
- Number of Leads: 2
- Lead Length: 500mm
Contact Us
| Motor Specification | |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.45 |
| Holding Torque(oz.in) | 63.9 |
| Rated Current(A) | 2.0 |
| Frame Size(mm) | 42x42 |
| Body Length(mm) | 40 |
| Driving Voltage(VDC) | 12-24 |
| Gearbox Specification | |
| Gearbox Type | Planetary |
| Gear Ratio | 10:1 |
| Efficiency | 96% |
| Backlash at No-load | 15arcmin |
| Gearbox Length(mm) | 40 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 21.5 |
| Encoder Specification | |
| Encoder Resolution(CPR) | 1000 |
| Encoder Type | Incremental |
| Supply Voltage(VDC) | 5.0 |
| Brake Specification | |
| Brake Type | Electromagnetic |
| Brake Voltage(VDC) | 24 |
L=40mm
