NEMA 14 Stepper Motor Dual Shaft Bipolar 1.8deg 1.0A 0.14Nm/19.88oz.in 35x34mm with Rear Shaft
- Part Number: 35HS34-1004B
- Lead Time: In Stock
- Unit Price: $10.50
- Sales: 36
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.

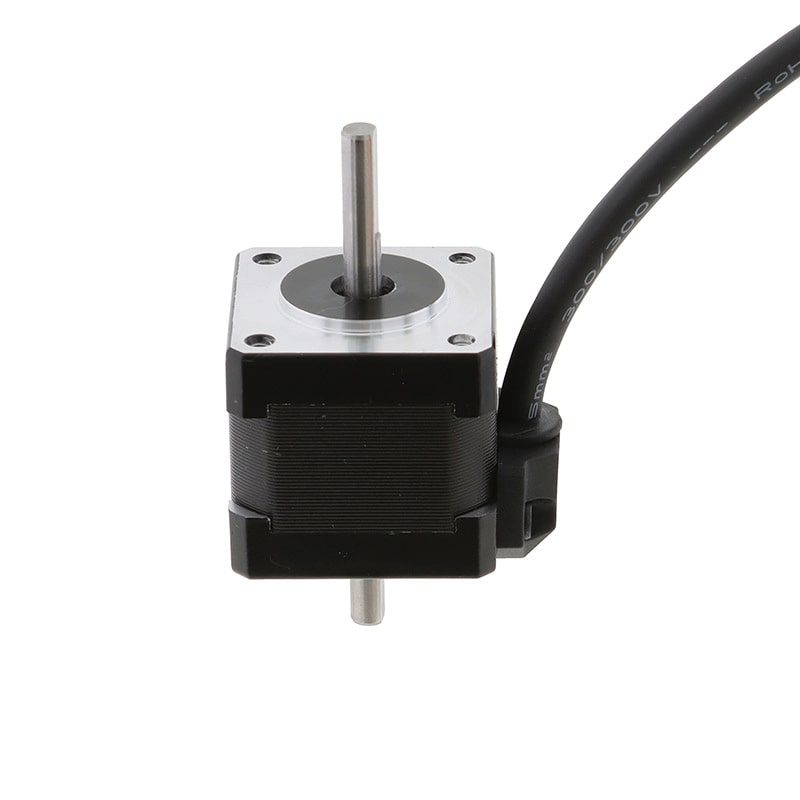

This dual shaft NEMA 14 stepper motor has 34mm body length, each phase draws 1.0A with holding torque 0.14Nm/19.88oz.in. A length of 15mm rear shaft is available.
Electrical Specification
- Part Number: 35HS34-1004B
- Step Angle: 1.8deg
- Bi/Unipolar: Bipolar
- Holding Torque: 0.14Nm/19.88oz.in
- Rated Current/phase: 1.0A
- Phase Resistance: 2.7ohms
- Inductance: 4.3mH
- Driving Voltage: 12-24VDC

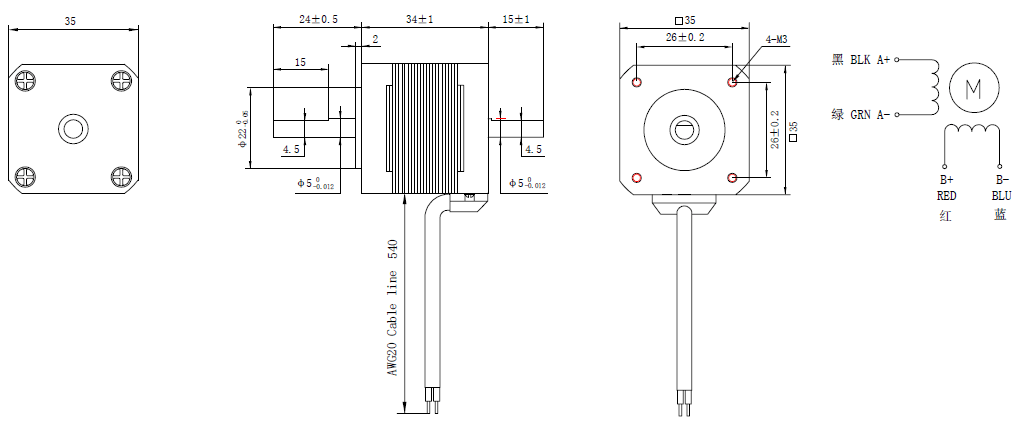

Physical Specification
- Frame Size: 35x35mm
- Body Length: 34mm
- Shaft Diameter: Φ5mm
- Front Shaft Length: 24mm
- Front d-cut Length: 15m
- Rear Shaft Length: 15mm
- Rear d-cut Length: 15mm
- Number of Leads: 4
- Lead Length:540mm
- Weight: 0.17kg
Contact Us
| Electrical Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
| Holding Torque(Nm) | 0.14 |
| Holding Torque(oz.in) | 19.88 |
| Rated Current(A) | 1.0 |
| Phase Resistance(ohm) | 2.7 |
| Phase Inductance(mH) | 4.3 |
| Physical Specification | |
| Frame Size(mm) | 35x35 |
| Body Length(mm) | 34 |
| Single Shaft/Dual Shaft | Dual Shaft |
| Front Shaft Diameter(mm) | 5 |
| Front Shaft Length(mm) | 24 |
| Rear Shaft Diameter(mm) | 5 |
| Rear Shaft Length(mm) | 15 |
| No. of Leads | 4 |
| Lead Length(mm) | 540 |
| Weight(KG) | 0.17 |
