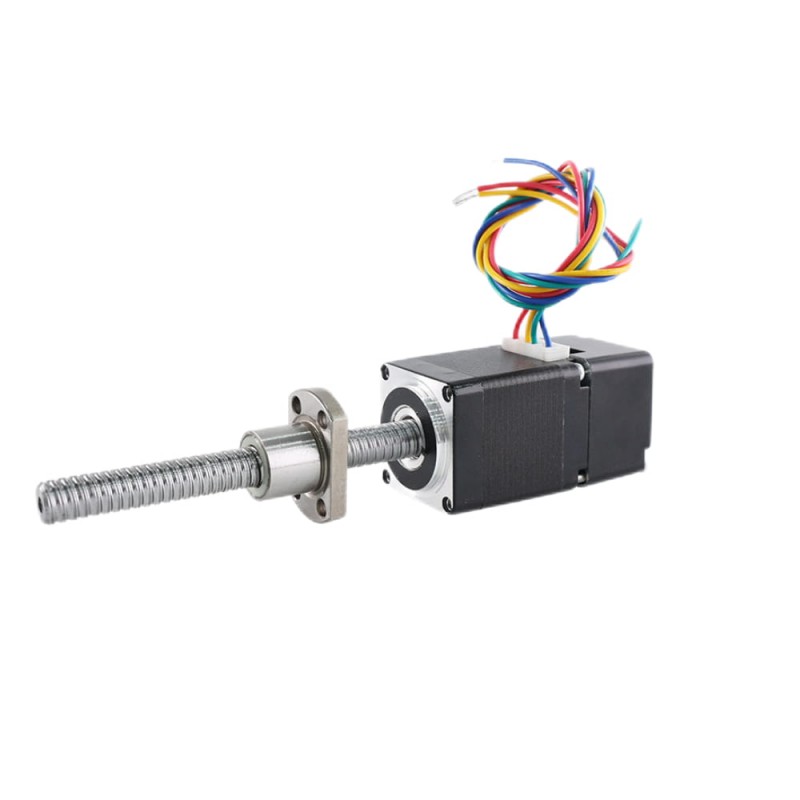

NEMA 11 Closed-loop Ball Screw Linear Actuator Stepper Motor Stack 50mm Lead 2mm with 1000PPR Encoder
- Part Number: 28LS50-0804G-100L0802E
- Lead Time: In Stock
- Unit Price: $195.00
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This size 42 external linear actuator with body part 50mm NEMA 17 closed-loop stepper motor is integrated with a diameter Φ12mm ball screw length 300mm & a bacll screw nut. And the ball screw lead travel is 4mm per revolution/0.02mm per step. A 1000PPR incremental encoder is assembled for closed loop servo control.
Electrical Specification
- Part Number: 28LS50-0804G-100L0802E
- Motor Type: External
- Step Angle: 1.8deg
- Bipolar/Unipolar: Bipolar
- Holding Torque: 0.17Nm/24.14oz.in
- Rated Current/phase: 0.8A
- Driving Voltage: 12-24V

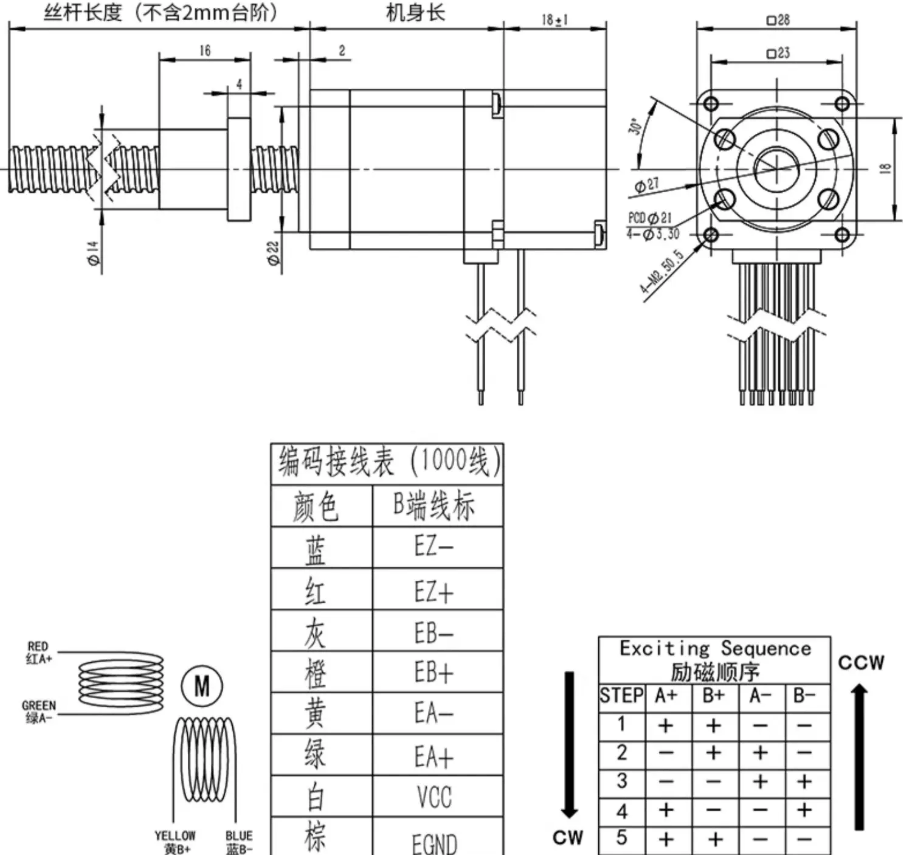

Physical Specification
- Frame Size: 28x28mm
- Body Length: 50mm
- Ball Screw Length: 100mm
- Ball Screw Diameter: Φ8mm
- Ball Screw/Step: 0.01mm
- Ball Screw/Revolution: 2mm
- Number of Leads: 4
- Lead Length: 500mm
Encoder Specification
- Encoder Type: Incremental
- Encoder Resolution: 1000PPR
- Encoder Signal Channels: 3
- No. of Leads: 8
- Lead Length: 500mm
- Supply Voltage: 5.0V
Contact Us
| Motor Specification | |
| Motor Type | External |
| Step Angle(°) | 1.8 |
| Bipolar/Unipolar | Bipolar |
| Holding Torque(Nm) | 0.17 |
| Holding Torque(oz.in) | 24.14 |
| Rated Current(A) | 0.8 |
| Frame Size(mm) | 28x28 |
| Stack Length(mm) | 50 |
| Encoder Specification | |
| Encoder Resolution(PPR) | 1000 |
| Encoder Type | Incremental |
| Supply Voltage(VDC) | 5.0 |
| Ball Screw Specification | |
| Ball Screw Length(mm) | 100 |
| Ball Screw Diameter(mm) | 8 |
| Ball Screw Travel/Revolution(mm) | 2 |
| Ball Screw Travel/Step(mm) | 0.01 |
motor body length 50mm, ball screw length 100mm, can be customized.
