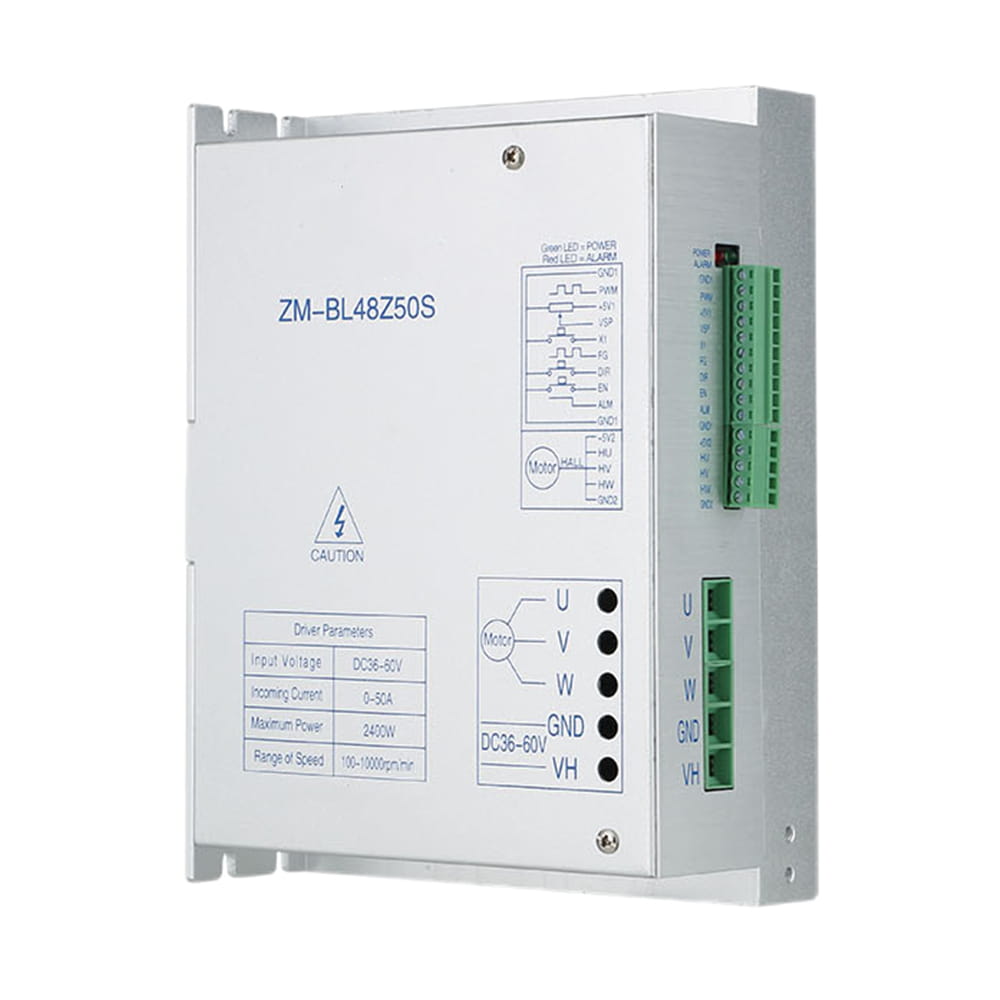

ZM-BL48Z50S Digital Brushless DC Motor Drive Controller 30-60 VDC Max 50A 2400W

The ZM-BL48Z50S brushless DC motor driver is a high-tech product launched by Frankhumotor for the medium-power brushless motor drive field. This product uses large-scale integrated circuits to replace the original hardware design, offering higher interference immunity and faster response capability. It is suitable for driving any low-voltage sinusoidal-wave Hall three-phase brushless DC motor with a peak current below 50 A and a power supply voltage within DC36V–60V, and it features low temperature during high-current operation. The product is used in a range of electrical automation control fields such as knitting equipment, medical equipment, food packaging machinery, and power tools.

Key Features:

• Power supply: DC 36V–60V DC power supply
• Maximum input current: no greater than 50A
• Maximum input power: up to 2400W
• Compatible motor: motors with output power ≤1800W
• High-torque and high-speed output; maximum speed up to 10000 rpm
• Speed pulse FG output (gate output)
• Alarm signal output for user monitoring/detection
• Protections include undervoltage, motor stall, etc.
• Compatible with both Hall and sensorless (Hall-free) motors
• EN (enable), DIR (direction), and X1 (brake) signal control terminals
• Cooling Method Natural air cooling (forced air cooling recommended)
• Square-wave control, constant-current mode, stepless speed regulation, compatible with Hall and sensorless operation

Operating Environment

• Avoid dust, oil mist and corrosive gases as much as possible
• Ambient Temperature: 0℃ to +50℃
• Humidity: <80%RH, no condensation, no frost
• Vibration: <0.5G (4.9m/s²) 10Hz-60Hz (non-continuous operation)
• Storage Temperature: -20℃~+65℃

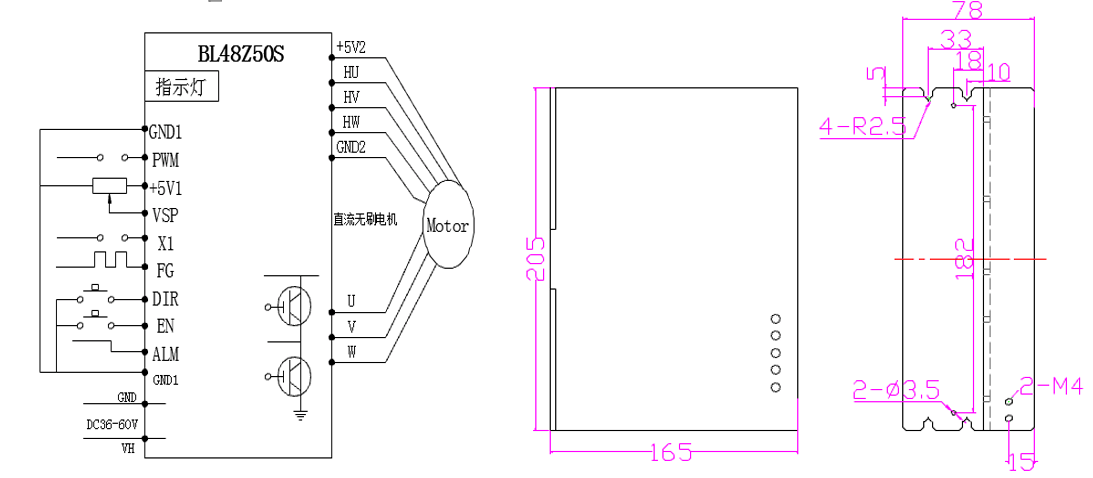

• Dimensions: 205x165x78mm
• Weight: 1.65Kg
