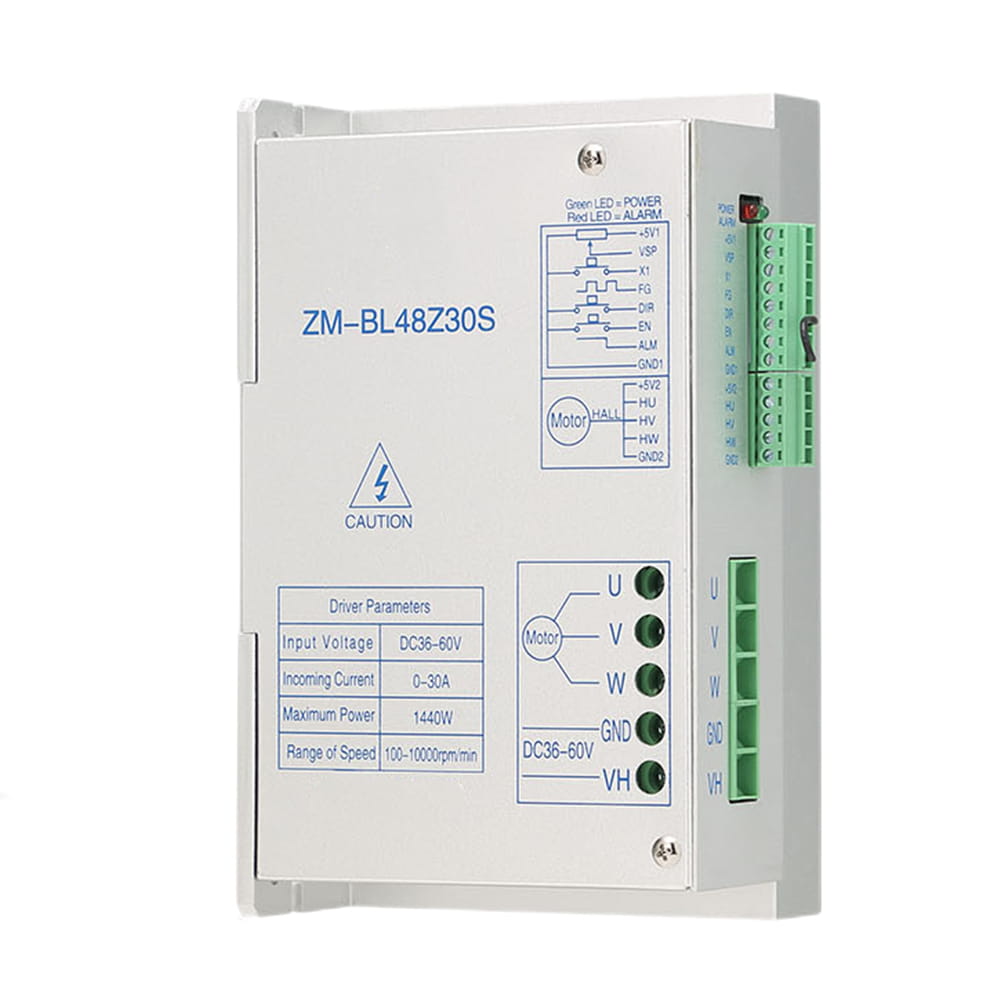

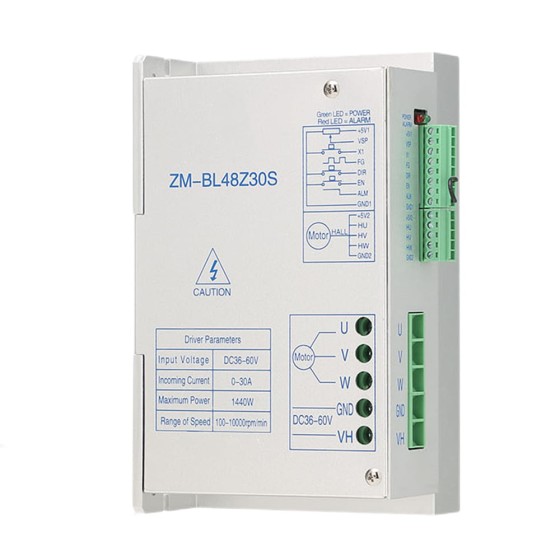

ZM-BL48Z30S Digital Brushless DC Motor Drive Controller 30-60 VDC Max 30A 1400W

The ZM-BL48Z30S brushless DC motor driver is a high-tech product launched by Frankhumotor for the medium-power brushless motor drive field. This product uses large-scale integrated circuits to replace the original hardware design, offering higher interference immunity and faster response capability. It is suitable for driving any low-voltage sinusoidal-wave Hall three-phase brushless DC motor with a peak current below 30 A and a power supply voltage within DC36V–60V, and it features low temperature during high-current operation. The product is used in a range of electrical automation control fields such as knitting equipment, medical equipment, food packaging machinery, and power tools.

Key Features:

• Power Supply: DC36V to 60V DC power supply; capacity selected according to motor power.
• Maximum Input Current: Not greater than 30A.
• Maximum Input Power: Max. 1440W.
• Applicable Motor: Applicable to motors with output power ≤1080W.
• Compatible with both Hall sensor and Hall-less (sensorless) motors.
• Square wave control, constant current mode, stepless speed regulation.
• High torque and high-speed output, with a maximum speed of up to 10,000 rpm.
• Equipped with EN (Enable), DIR (Direction), and X1 (Brake) signal control terminals.
• Can output speed measurement pulses FG (Gate output).
• Can output an alarm signal for user monitoring.
• Features protection functions such as over/under voltage and motor stall.

Operating Environment

• Avoid dust, oil mist and corrosive gases as much as possible
• Ambient Temperature: 0℃ to +50℃
• Humidity: <80%RH, no condensation, no frost
• Vibration: <0.5G (4.9m/s²) 10Hz-60Hz (non-continuous operation)
• Storage Temperature: -20℃~+65℃

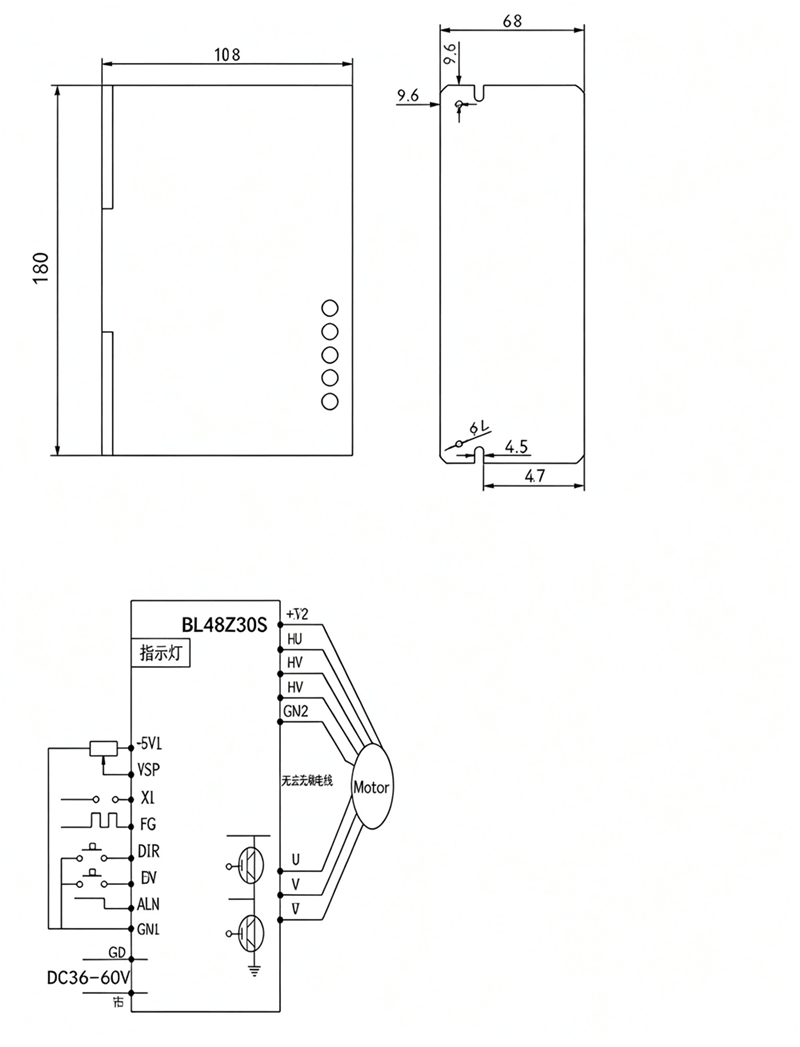

• Dimensions: 180x108x68mm
• Weight: 1.0 kg
