24V 30W Φ52mm Planetary Geared DC Brushed Motor 10 - 1,200 RPM 20 N-m

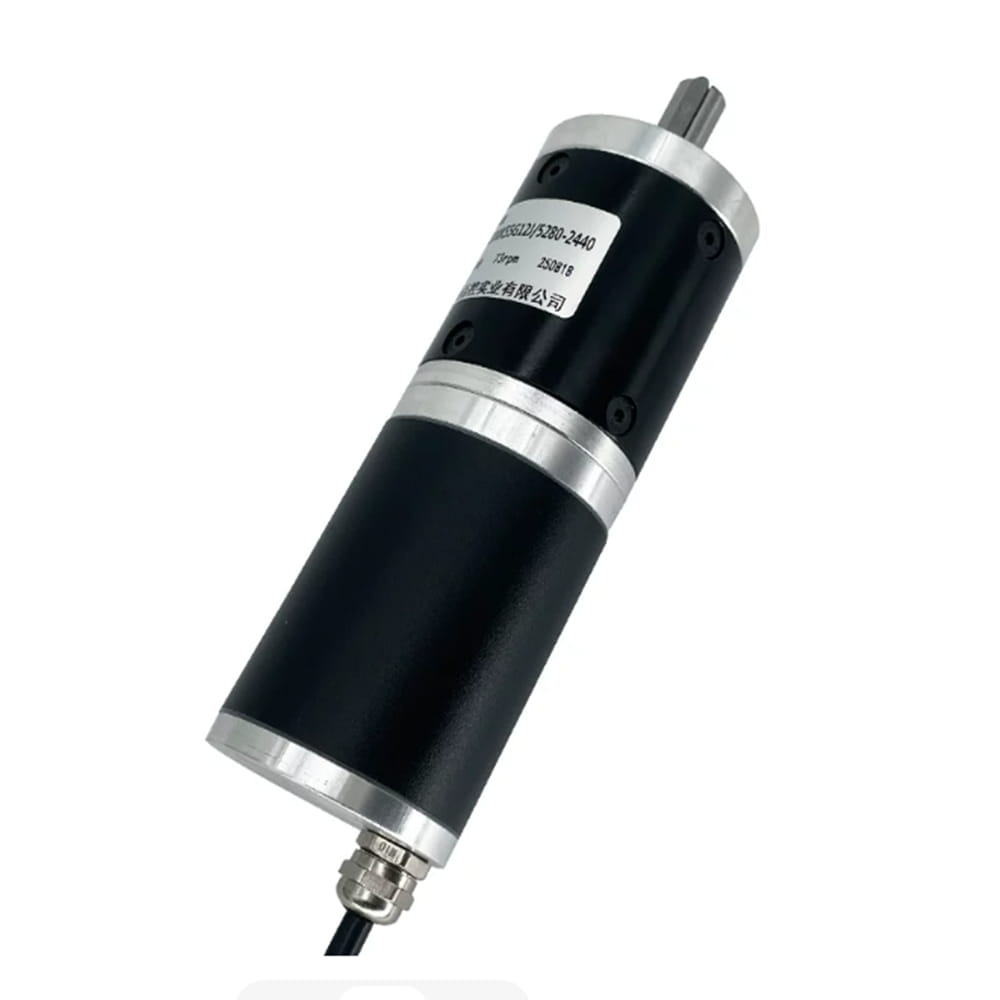

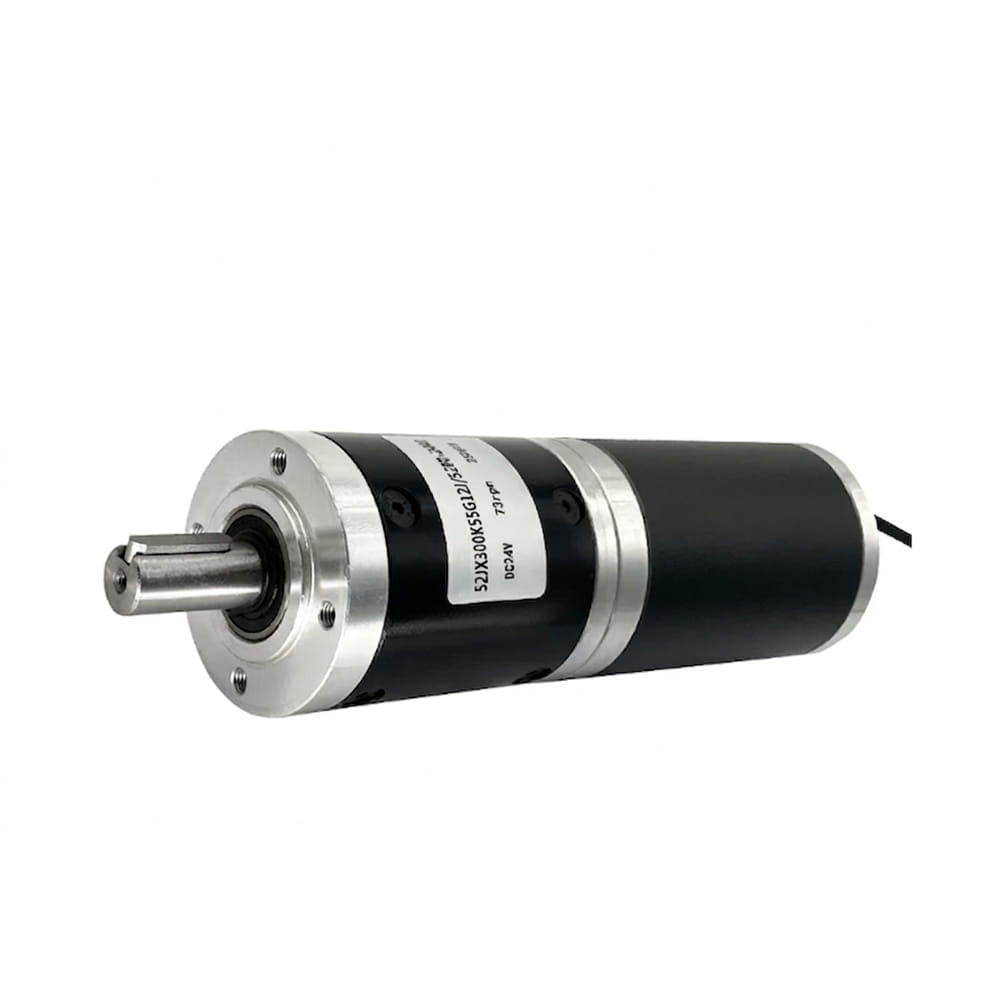

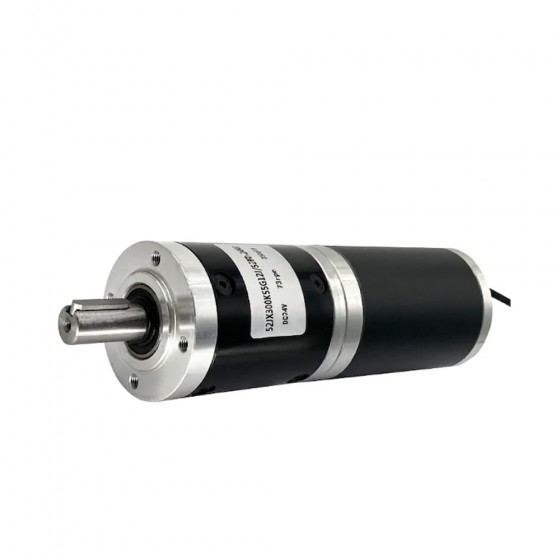

This big electric geared motor combines a 52mm diameter DC brushed motor with a high-quality precision-machined gearbox. With a reduction ratio from 3.6:1 to 326:1, it delivers a speed range of 10 – 1,200 RPM and torque output up to 20 N·m. It features variable speed control and reversible (CW/CCW) operation, and is available in 12 VDC or 24 VDC versions. The standard output shaft diameter is 12 mm, with other diameters available upon request. Typical applications include robots, industrial machinery, range hoods, and medical devices. Please specify the reduction ratio in the order note.

Specification

• Manufacturer Part Number: 52BK80-2440-PG
• Rated Voltage: 24 VDC
• Rated Current: 2.0 A
• Rated Power: 30 W
• Gear Ratio: 3.6:1 - 326:1
• Rated Torque: Max. 20 N-m
• No-load Speed: 12 - 1,100 RPM
• Rated Speed: 10 - 890 RPM
• Insulation Class: B
• Motor Length: 80 mm
• Gearbox Length: 45.7 - 79.8 mm
• Shaft Diameter: Φ12 mm
• Shaft Length: 28 mm
• Keyway Length: 20 mm
• Weight: 1.1 - 1.25 kg

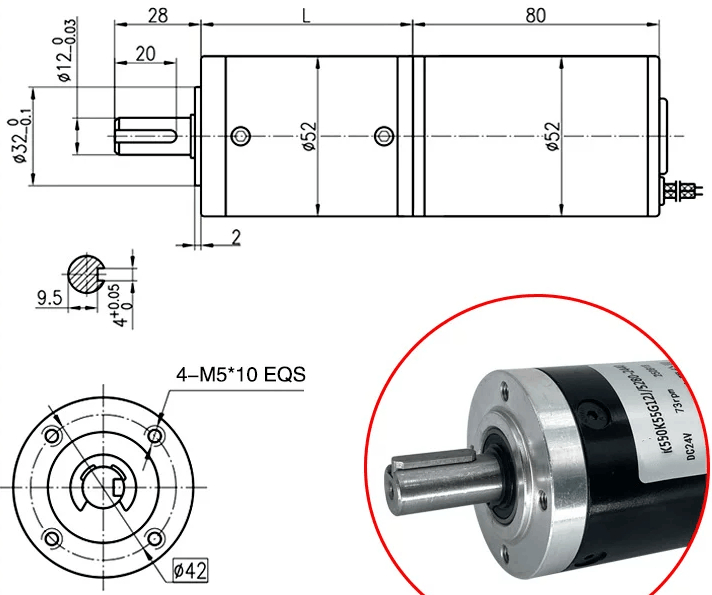

24VDC 52mm DC Geared Motor Parameters (it can work under 12VDC but the current will be increased 100%).
