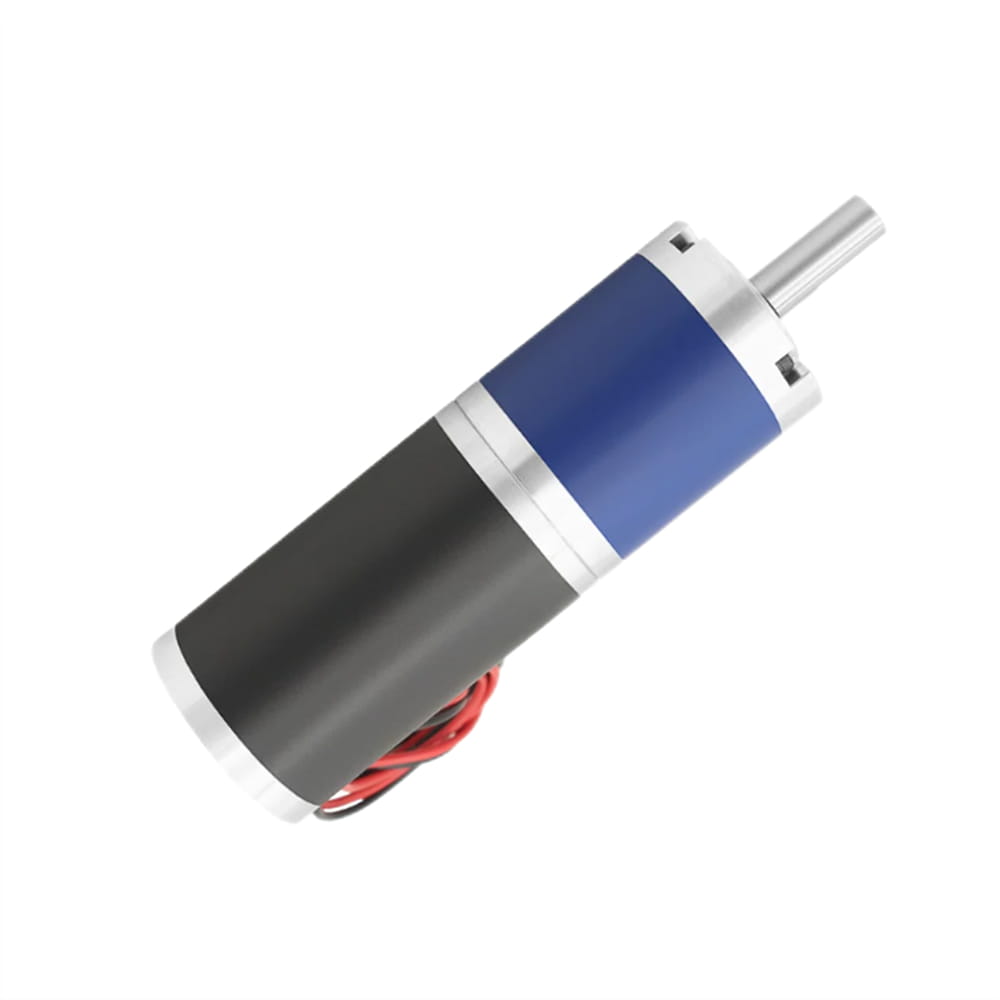

12V 70W Φ45mm Planetary Geared DC Brushed Motor 6-1600 RPM 30 N-m
- Brand: Frankhumotor
- Part Number: 4575-1260-PG100
- Lead Time: In Stock
- Unit Price: US $69.90
- *Ship from China
The order will be shipped out in 24-72 hours if the items are in stock. Please feel free to contact us for more discounts if the order is over 999USD.
This product has a minimum quantity of 2
This electric geared motor combines a 45 mm diameter DC brushed motor with a high-quality precision-machined gearbox. With a reduction ratio from 3.7:1 to 721:1, it delivers a speed range of 4–2,000 RPM and torque output up to 30 N·m. It features variable speed control and reversible (CW/CCW) operation, and is available in 12 VDC or 24 VDC versions. The standard output shaft diameter is 10 mm, with other diameters available upon request. Typical applications include robots, industrial machinery, range hoods, and medical devices.
Specification
- Manufacturer Part Number: 4575-1260-PG100
- Rated Voltage: 12 VDC
- Rated Current: 7.8 A
- Rated Power: 70 W
- Gear Ratio: 100:1
- Rated Torque: 9.0 N-m
- No-load Speed: 60 RPM
- Rated Speed: 50 RPM
- Insulation Class: B
- Motor Length: 75 mm
- Gearbox Length: 54.8 mm
- Shaft Diameter: Φ10 mm
- Shaft Length: 30 mm
- D-cut Length: 17 mm
- Weight: 0.95 kg
12VDC 45mm DC Geared Motor Parameters
| Gear Ratio | 3.7:1 | 5.2:1 | 14:1 | 19:1 | 27:1 | 50:1 | 71:1 | 100:1 | 139:1 | 189:1 | 264:1 | 369:1 | 516:1 | 721:1 |
| No-load Speed(RPM) | 1620 | 1150 | 430 | 310 | 220 | 120 | 84 | 60 | 43 | 31 | 22 | 16 | 11 | 8 |
| Rated Speed(RPM) | 1480 | 1020 | 350 | 260 | 185 | 105 | 75 | 50 | 36 | 25 | 18 | 13 | 9 | 6 |
| Rated Torque(Nm) | 0.4 | 0.6 | 1.5 | 2.0 | 3.0 | 5.0 | 7.0 | 9.0 | 10 | 13 | 15 | 20 | 30 | 30 |
| Gearbox Length(mm) | 33.2 | 33.2 | 44 | 44 | 44 | 54.8 | 54.8 | 54.8 | 54.8 | 65.6 | 65.6 | 65.6 | 65.6 | 65.6 |
Contact Frankhumotor for Datasheet, 3D Step. File, Torque Curve
| Product Details | |
| Model Number | 4575-1260-PG100 |
| Product Type | Brushed |
| Lead Time | in stock |
| Insulation Class | B |
| Protective Grade | IP20 |
| Electrical Specification | |
| Rated Torque(Nm) | 9.0 |
| Rated Power(W) | 70 |
| Rated Voltage(VDC) | 12 |
| Rated Speed(RPM) | 50 |
| No-load Speed(RPM) | 60 |
| Physical Specification | |
| Frame Size(mm) | Φ45 |
| Body Length(mm) | 129.8 |
| Shaft Diameter(mm) | 10 |
| Shaft Length(mm) | 30 |
| Weight(KG) | 0.95 |
