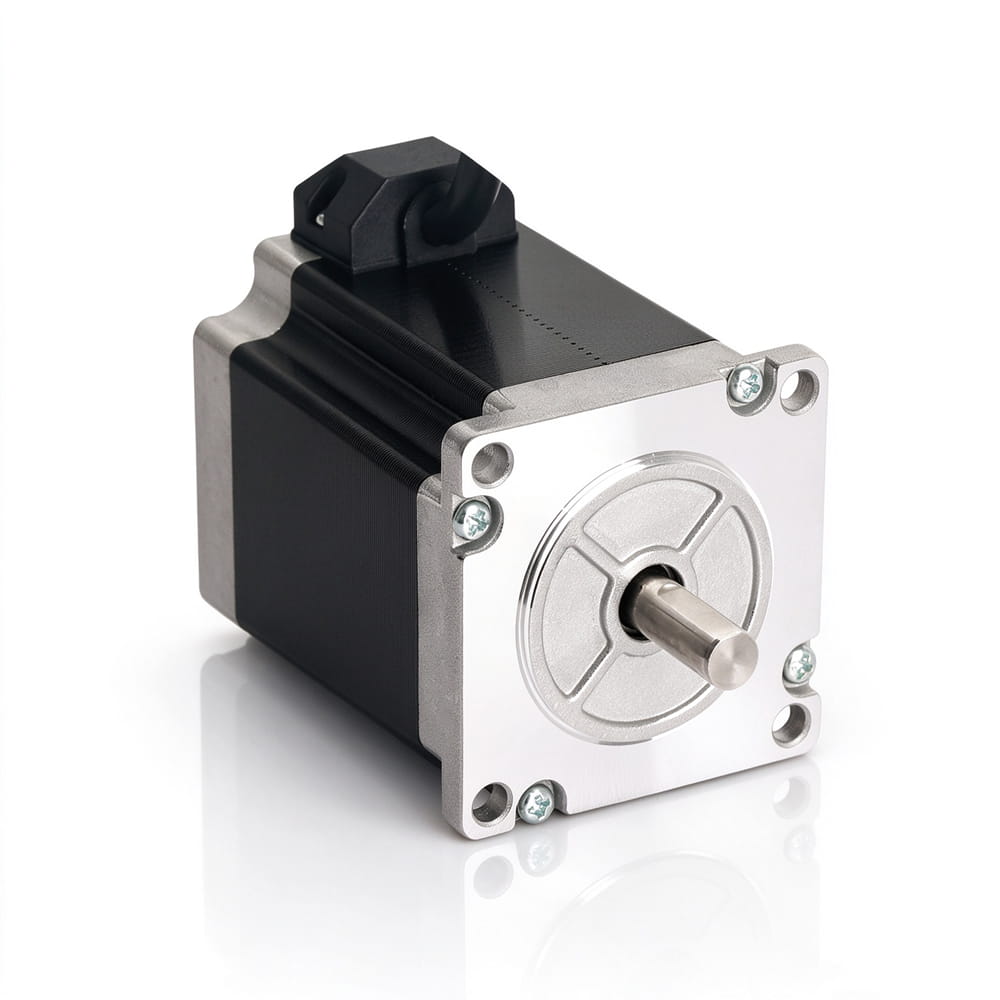

Leadshine Size 60mm Stepper Motor 60CM22X 60CM30X

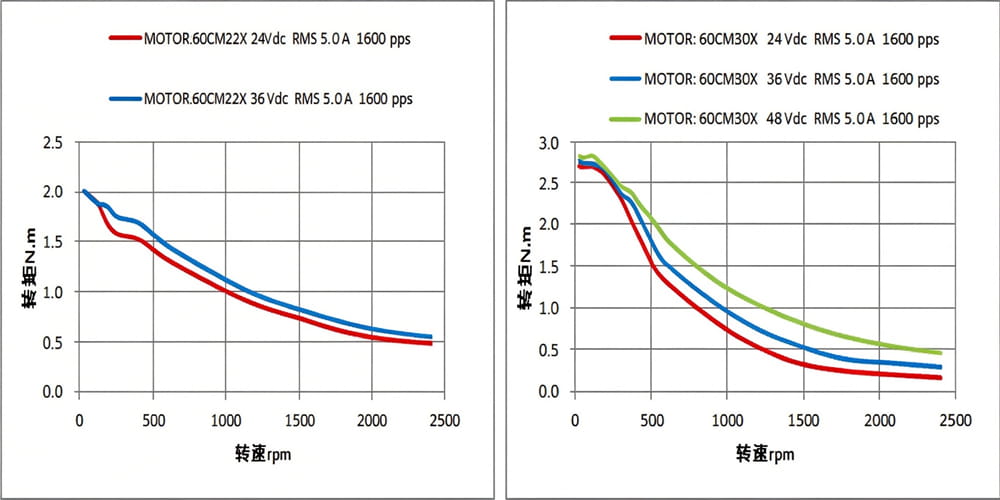

This Leadshine 60 mm (NEMA 24) 2-phase hybrid stepper motor series includes the 60CM22X and 60CM30X models, offering holding torque options of 2.2 N·m (312 oz·in) and 3.0 N·m (425 oz·in) respectively within a standard 60 × 60 mm frame. Body lengths scale with torque at 67 mm and 85 mm , while both models share a precise 1.8° step angle, 5.0 A rated phase current, a Φ8 mm shaft (7.5 mm flat), 4-lead bipolar wiring, IP40 protection, and Class B insulation, with weights of 1.0 kg and 1.3 kg . Built with premium bearings and shafts from Japanese manufacturers, the series is known for high precision, low motor heating, and low vibration . This combination of scalable high torque and stable performance makes the series well suited to demanding motion axes in CNC routers and engraving machines, laser processing equipment, automated production lines, packaging machinery, and industrial robotics requiring reliable open-loop positioning under substantial loads. The matched drive is M556C. Please specify the model number in the order note.

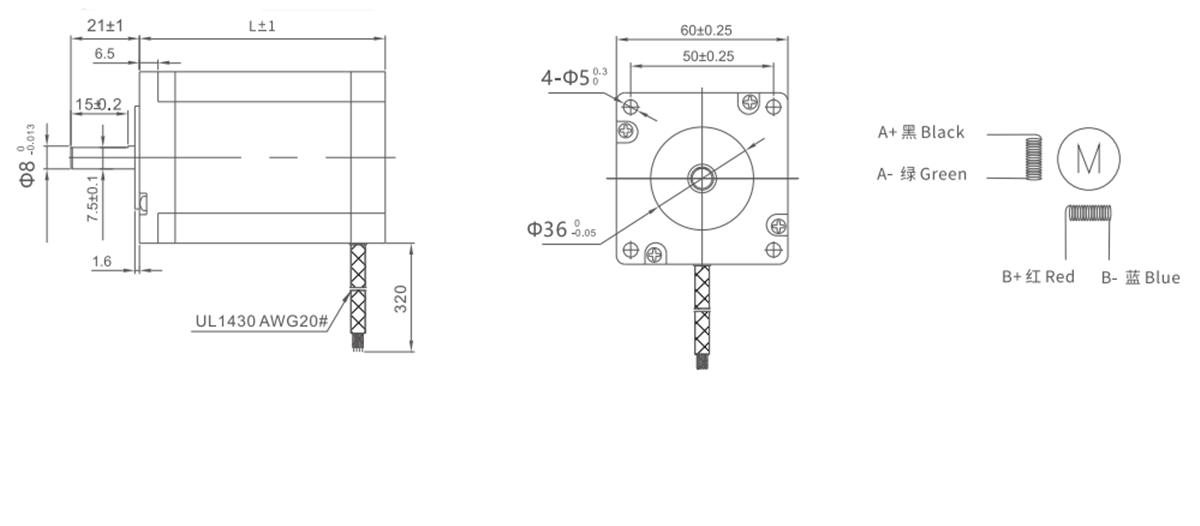

General Specifications

• Step Angle: 1.8°
• Step Angle Accuracy: ±0.09° (No load, full step)
• Temperature Rise: MAX 85K
• Operating Environment Temperature: -10°C - +50°C
• Humidity: 85% Max
• Ambient Environment: No corrosive gases, dust, no direct contact with water, oil
• Insulation Class: B
• Insulation Resistance: Min 100 MΩ, 500 V DC
• Withstand Voltage: 500 VAC, 1min
• Radial Runout: 0.025 mm Max (Load 5N)
• Axial Runout: 0.075 mm Max (Load 10N)
• Radial Load (10mm from the shaft end flange face): 90 N
• Axial Load: Less than the motor's own weight
